IS 1500Z (5900889) - Ferris IS1500Z Series 44" Zero-Turn Mower, 20hp Kawasaki, Rear-Discharge 44" Mower Deck - Housing, Covers, Spindles & Blades - Rear Discharge - Export Parts Diagram

IS1500Z Series 44" Zero-Turn Mower, 20hp Kawasaki, Rear-Discharge

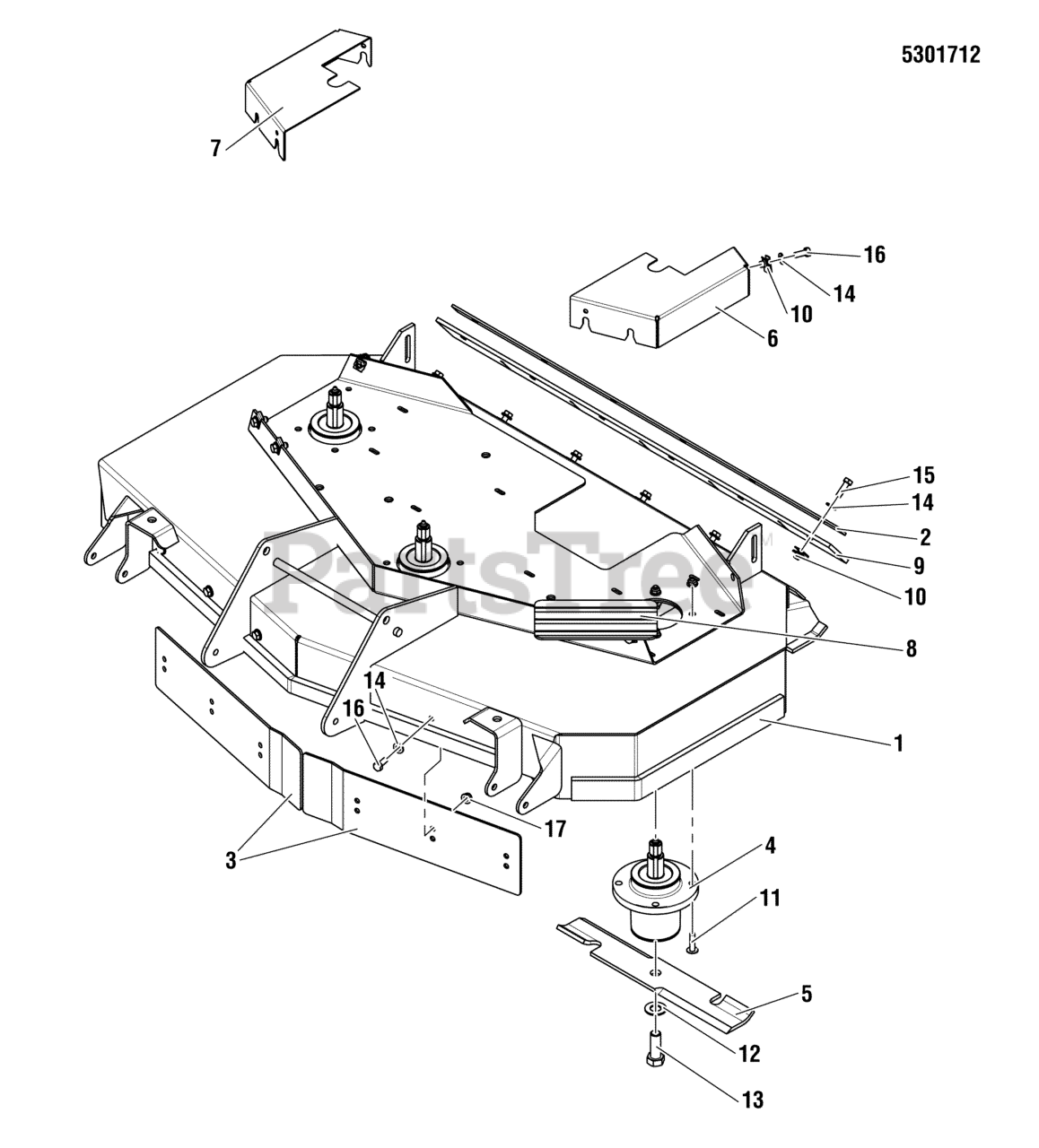

44" Mower Deck - Housing, Covers, Spindles & Blades - Rear Discharge - Export Parts Diagram

  • Title
1

Ferris 5600329

DECK SHELL W/ DECALS, 44RD, IS1500ZCE

$

$

Currently unavailable

2

Ferris 5405326A

BAR, RETAINING, 44RD - BLK

$

$

Currently unavailable

3

Ferris 5405318A

BAFFLE, FRONT DISCHARGE, 44RD - BLK

$33.99

$

Usually ships in 2-12 days

0

4

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

5

Ferris 5061827S

BLADE, 15" (SET OF THREE)

$72.99

$

Usually ships in 2-12 days

0

6

Ferris 5061831B

GUARD, 44" MOWER DECK, LH
(Superseded to 5061831BFS)

$31.99

$

Usually ships in 2-12 days

0

7

Ferris 5061832B

GUARD, 44" MOWER DECK, RH
(Superseded to 5061832BFS)

$31.99

$

Usually ships in 2-12 days

0

8

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

Usually ships in 2-12 days

0

9

Ferris 5102033

FLAP, RUBBER, 44RD

$

$

Currently unavailable

10

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

11

Ferris 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

12

Ferris 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

13

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

16

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

17

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0
