IS 1500Z (5900850) - Ferris IS1500Z Series 44" Zero-Turn Mower, 19hp Kawasaki, Rear-Discharge Main Frame & Front Suspension Group Parts Diagram

IS1500Z Series 44" Zero-Turn Mower, 19hp Kawasaki, Rear-Discharge

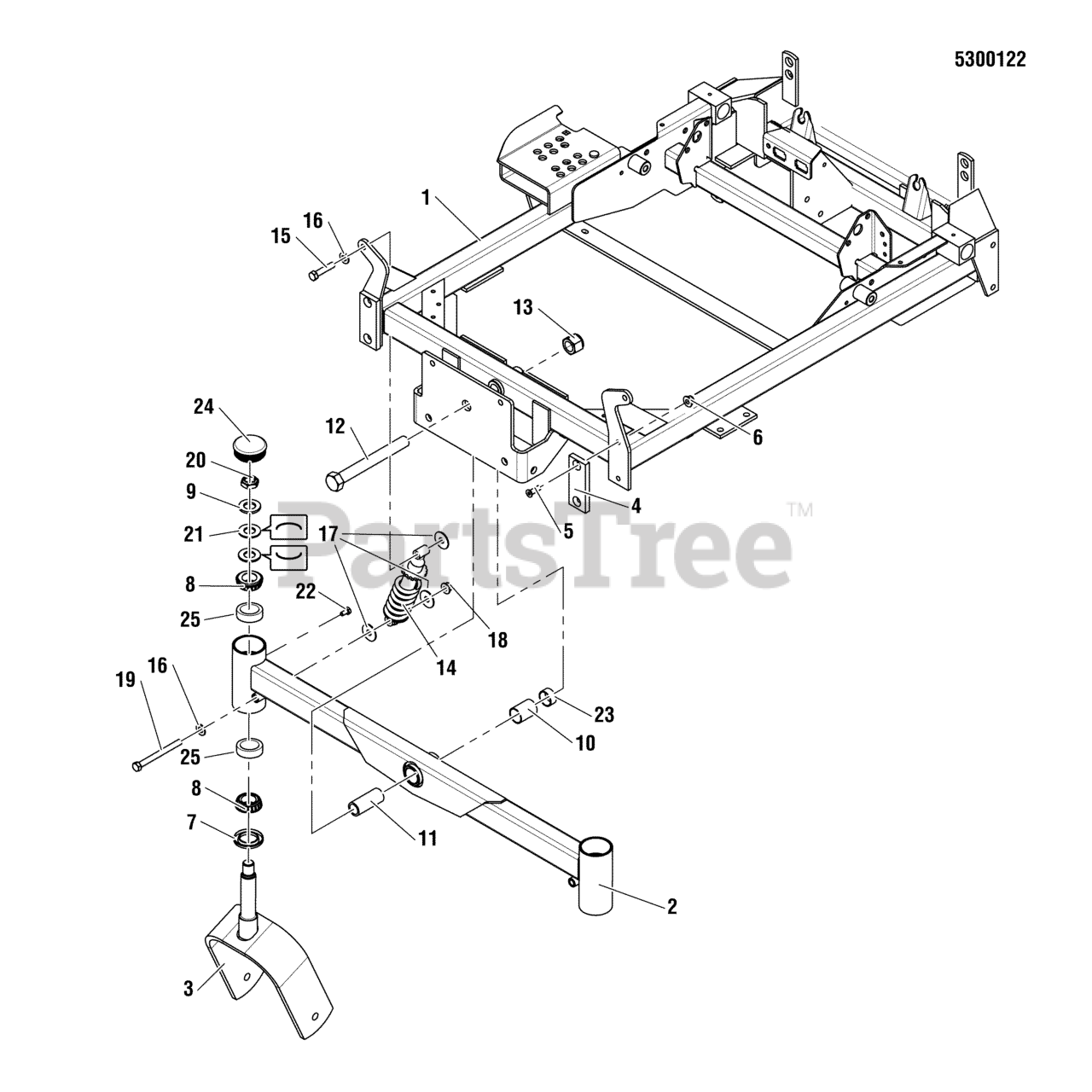

Main Frame & Front Suspension Group Parts Diagram

  • Title

1

Ferris 5404316B

WELD, IS1500Z MAIN FRAME - RED

$

$

Currently unavailable

2

Ferris 5402536B

WELD, FRONT PIVOT, IS500Z - RED
(Superseded to 5600255)

$492.99

$

Usually ships in 2-12 days

0

3

Ferris 5402208B

WELD, CASTER YOKE -RED
(Superseded to 5402208BFS)

$106.99

$

Usually ships in 2-12 days

0

4

Ferris 5102702

PAD, FRICTION, .375 X 1.25 X 4.00
(Superseded to 5102702YP)

$6.99

$

In Stock, only 2 left!

0

5

Ferris 5025594

SCREW, 5/16-18 X 1 PHILLIPS HD, BZ
(Superseded to 5025594YP)

Note: (Was 5025303)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, Qty 5

0

8

Ferris 5020884

BEARING, TAPERED ROLLER, 1
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

9

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 7

0

10

Ferris 5022852

PIVOT BEARING-1.00 X 1.125 ODX1.50
(Superseded to 5022852SM)

$33.99

$

In Stock, Qty 17

0

11

Ferris 5047489

SPACER, .75 X 1.00 X 2.38
(Superseded to 5047489SM)

$35.99

$

In Stock, Qty 14

0

12

Ferris 5025265X52

BOLT, 3/4-16 X 6-1/2 YZ GD5
(Superseded to 5025265X52SM)

$15.99

$

In Stock, Qty 8

0

13

Ferris 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

14

Ferris 5023483

SHOCK, SPRING ASSEMBLY
(Superseded to 5023483SM)

$55.99

$

In Stock, Qty 17

0

15

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

16

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

18

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

19

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, Qty 11

0

20

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

21

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

22

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5100358

PIVOT BEARING, 1.00 X 1.125 OD X .50
(Superseded to 5100358SM)

$18.99

$

In Stock, Qty 14

0

24

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

25

Ferris 5020883

CUP, BEARING

$8.99

$

Usually ships in 2-12 days

0
