IS 1500Z (5900589) - Ferris IS1500Z Series 44" Zero-Turn Mower, 26hp Briggs & Stratton 44" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

IS1500Z Series 44" Zero-Turn Mower, 26hp Briggs & Stratton

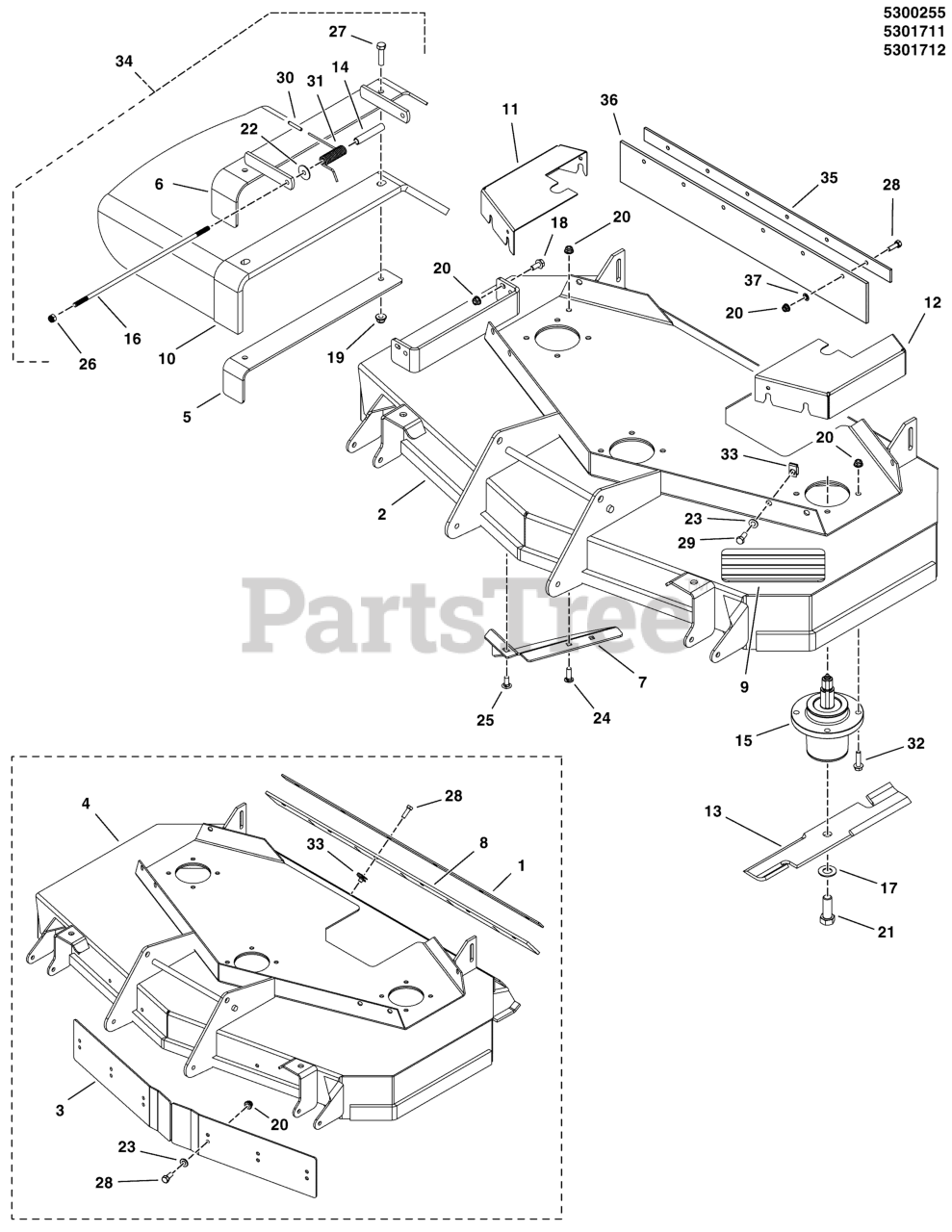

44" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Ferris 5405326A

BAR, RETAINING, 44RD - BLK

Note: (Export Models)

$

$

Currently unavailable

2a

Ferris 5600047

DECK SHELL W/DECALS, 44", IS1500Z

Note: (Domestic Models)

$1681.99

$

Usually ships in 2-12 days

0

2b

Ferris 5600328

DECK SHELL W/DECALS, 44SD, IS1500ZCE

Note: (Export Models)

$

$

Currently unavailable

3

Ferris 5405318A

BAFFLE, FRONT DISCHARGE, 44RD - BLK

Note: (Export Models)

$33.99

$

Usually ships in 2-12 days

0

4

Ferris 5600329

DECK SHELL W/DECALS, 44RD, IS1500ZCE

$

$

Currently unavailable

5

Ferris 5402362A

SUPPORT, DISCHARGE CHUTE, 48/52 - BLK
(Superseded to 5402362AFS)

$35.99

$

Usually ships in 2-12 days

0

6

Ferris 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

$50.99

$

In Stock, only 1 left!

0

7

Ferris 5401283A

WELD, DISCHARGE BAFFLE, 44" - BLK

$

$

Currently unavailable

8

Ferris 5102033

FLAP, RUBBER, 44RD

Note: (Export Models)

$

$

Currently unavailable

9

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

10

Ferris 5402404

CHUTE, DISCHARGE, BEND RUBBER, 44/48/52
(Superseded to 5402404FS)

$148.99

$

Usually ships in 2-12 days

0

11

Ferris 5061832B

GUARD, 44" MOWER DECK, RH
(Superseded to 5061832BFS)

$31.99

$

Usually ships in 2-12 days

0

12

Ferris 5061831B

GUARD, 44" MOWER DECK, LH
(Superseded to 5061831BFS)

$31.99

$

Usually ships in 2-12 days

0

13

Ferris 5061827S

BLADE, 15" (SET OF THREE)

$72.99

$

Usually ships in 2-12 days

0

14

Ferris 5061598

SPACER, TORSION SPRING,9.63 LG

Note: (Export Models)

$

$

Not available

15

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

16

Ferris 5042555

ROD, 5/16 X 13.75, TBE, CZ
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

17

Ferris 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

18

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

19

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

20

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

Note: (Export Models)

$3.99

$

In Stock, only 1 left!

0

23

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

24

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

25

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

26

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

27

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

29

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

30

Ferris 5023489

CAP, PROTECTOR, .120 ID
(Superseded to 5023489SM)

Note: (Export Models)

$3.99

$

Usually ships in 2-12 days

0

31

Ferris 5023385

SPRING, TORSION
(Superseded to 5023385SM)

Note: (Export Models)

$8.49

$

Usually ships in 2-12 days

0

32

Ferris 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

33

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

34

Ferris 5600132

KIT, DISCHARGE CHUTE, 44/48/52

$

$

Not available

35

Ferris 5405520A

PLATE, SUPPORT, 48 - BLK
(Superseded to 5405520AFS)

Note: (S/N 2015628684 & Above)

$21.99

$

Usually ships in 2-12 days

0

36

Ferris 5102134

FLAP, RUBBER, 48
(Superseded to 5102134FS)

Note: (S/N 2015628684 & Above)

$48.99

$

In Stock, only 1 left!

0

37

Ferris 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

Note: (S/N 2015628684 & Above)

$2.99

$

Usually ships in 2-12 days

0
