IS 1500Z (5900579) - Ferris IS1500Z Series 48" Zero-Turn Mower, 19hp Kawasaki Motion Control Group Parts Diagram

IS1500Z Series 48" Zero-Turn Mower, 19hp Kawasaki

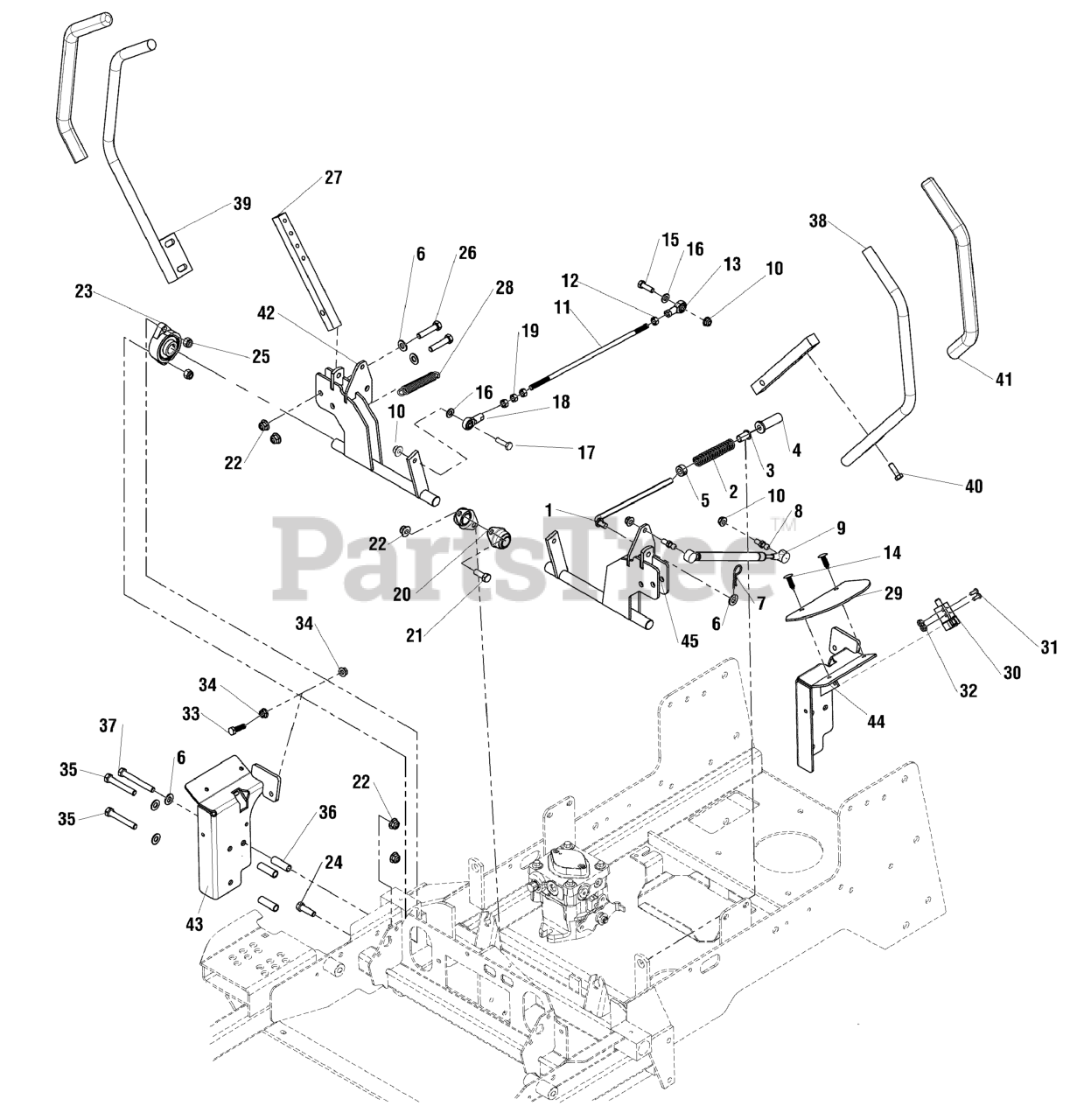

Motion Control Group Parts Diagram

  • Title

1

Ferris 5100947

ROD, NEUTRAL RETURN
(Superseded to 5100947SM)

$7.99

$

Usually ships in 2-12 days

0

2

Ferris 5022645

SPRING, REVERSE RETURN
(Superseded to 5022645SM)

$9.49

$

In Stock, only 1 left!

0

3

Ferris 5023260

BUSHING, NYLON
(Superseded to 5023260SM)

$6.49

$

In Stock, only 2 left!

0

4

Ferris 5104375

FLANGED BUSHING, 3/8IDX.63ODX.8125FL
(Superseded to 5104375YP)

$5.99

$

Usually ships in 2-12 days

0

5

Ferris 5010546

COLLAR, 3/8" SET
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

6

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025210

PIN, HAIR, .0915 X 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

8

Ferris 5100941

BALL STUD, 5/16 X .50,# PC-477-2)
(Superseded to 5100941SM)

$4.49

$

In Stock, Qty 12

0

9

Ferris 5100940

DAMPENER, CONTROL,#(P6709/P3610)
(Superseded to 5100940SM)

$55.99

$

In Stock, only 2 left!

0

10

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5100946

ROD, HYDRO LINKAGE

$

$

Currently unavailable

12

Ferris 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

In Stock, only 2 left!

0

13

Ferris 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

14

Ferris 5025431

PUSH RIVET (TREE TYPE), BLACK
(Superseded to 5025431SM)

$4.49

$

Usually ships in 2-12 days

0

15

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

16

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

17

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

19

Ferris 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

21

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

22

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

23

Ferris 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

24

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

25

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

26

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

27

Ferris 5047004A

MOUNT, CONTROL ARM - BLK

Note: (9.0" Total Length, 4 Adjustment Holes)

$

$

Currently unavailable

28

Ferris 5020639

SPRING, EXTENSION
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

29

Ferris 5100948

GUARD, RUBBER MOTION CONTROLS
(Superseded to 5100948SM)

$8.49

$

Usually ships in 2-12 days

0

30

Ferris 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 20+

0

31

Ferris 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

32

Ferris 5025029

NUT, #10-24 HEX
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

33

Ferris 5025011X9

BOLT, 5/16-18 X 1-1/8" GD5
(Superseded to 5025011X9SM)

$3.99

$

In Stock, only 1 left!

0

34

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

35

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

36

Ferris 5048264

SPACER, .39 X .63 X 1.50
(Superseded to 5048264SM)

$5.99

$

Usually ships in 2-12 days

0

37

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

38

Ferris 5601285

KIT, HANDLE BAR REPLACE, L/R

Note: (Kit includes handles and grips for both sides of the unit.)

$133.99

$

Usually ships in 2-12 days

0

39

Ferris 5601285

KIT, HANDLE BAR REPLACE, L/R

Note: (Kit includes handles and grips for both sides of the unit.)

$133.99

$

Usually ships in 2-12 days

0

40

Ferris 80003531

SCREW, 5/16-18x0.750, GR5, WHIZ-LOCK, ZC
(Superseded to 9357MA)

$5.49

$

In Stock, Qty 14

0

41

Ferris 5022068

GRIP, FOAM, 3/4" ID, 16" LONG
(Superseded to 5022068SM)

$11.99

$

Usually ships in 2-12 days

0

42

Ferris 5402589A

WELD, SHAFT MOTION CONTROL - RH - BLK

$

$

Currently unavailable

43

Ferris 5402595A

WELD, NEUTRAL LOCK, RH - BLK

$

$

Currently unavailable

44

Ferris 5402594A

WELD, NEUTRAL LOCK, LH - BLK

$

$

Currently unavailable

45

Ferris 5402588A

WELD, SHAFT MOTION CONTROL - LH - BLK

$

$

Currently unavailable
