IS 1500Z (5900577) - Ferris IS1500Z Series 44" Zero-Turn Mower, 19hp Kawasaki Hydraulic Tank Mount Group Parts Diagram

IS1500Z Series 44" Zero-Turn Mower, 19hp Kawasaki

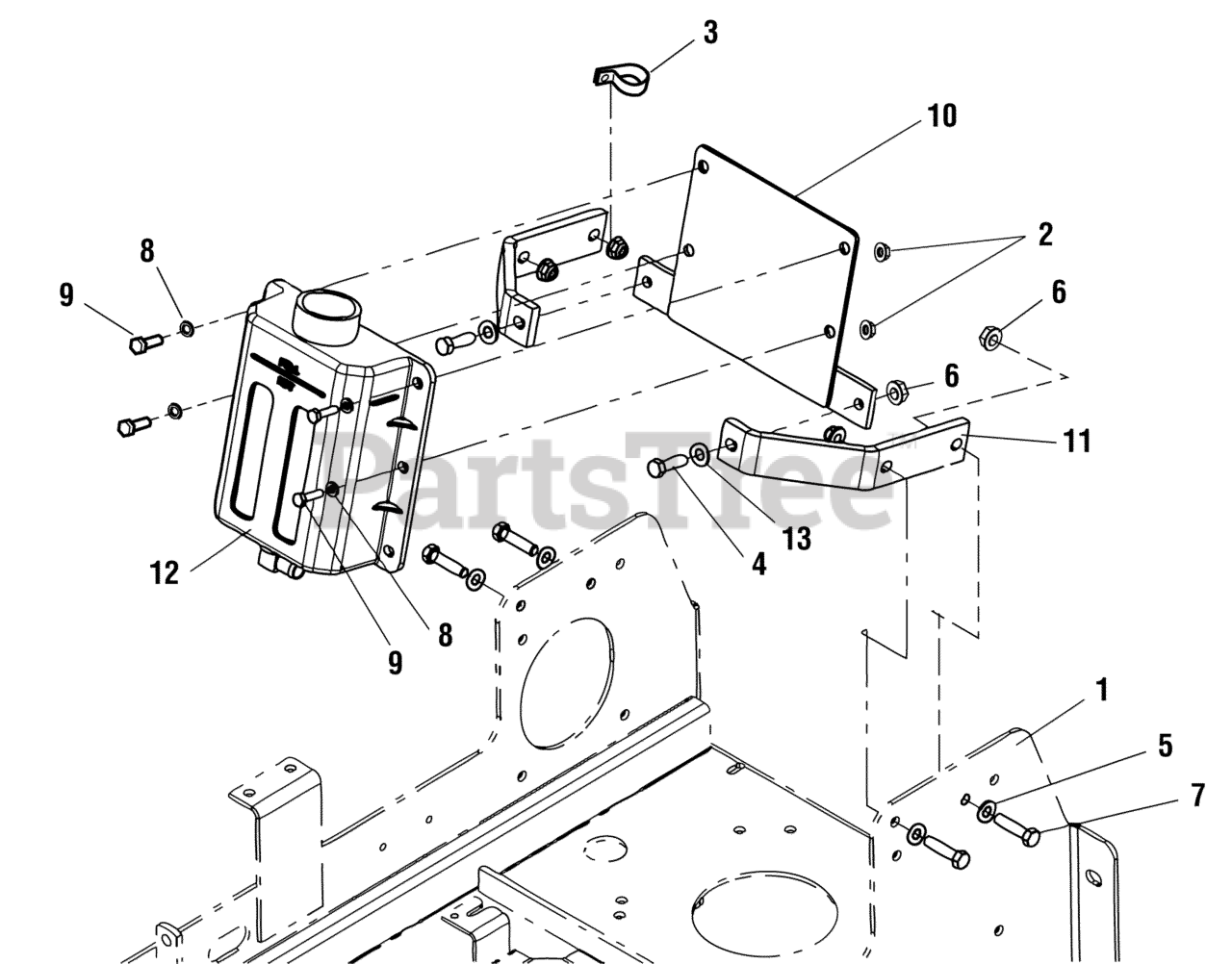

Hydraulic Tank Mount Group Parts Diagram

  • Title

1

MAIN FRAME

Note: (See Main Frame Group)

$

$

Not available

2

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

3

Ferris 5023173

CLAMP, VINYL, 1"
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

5

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5025394

NUT, 3/8-16 Hex Nylock Flange
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5025010X6

BOLT, 1/4-20 X 3/4"
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

10

Ferris 5408234B

WELD, HYD TANK MOUNT

$47.99

$

Usually ships in 2-12 days

0

11

Ferris 5061746B

MOUNT BRACKET

$26.99

$

Usually ships in 2-12 days

0

12

HYDRAULIC TANK

Note: (See Hydraulic Group)

$

$

Not available

13

Ferris 5025293

WASHER, 3/8" GR. 9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0
