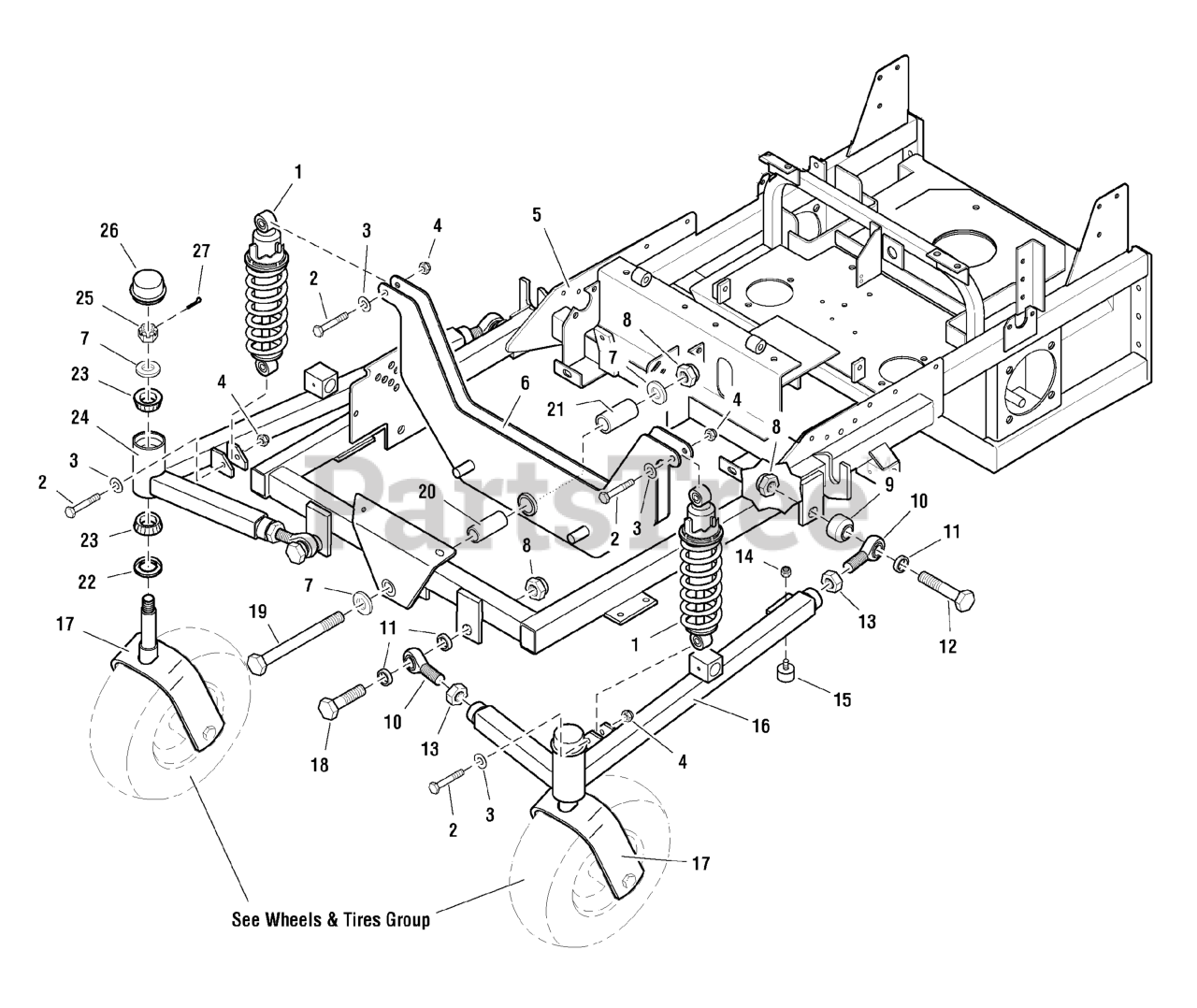

IS 1000Z (5901051) - Ferris IS1000Z Series 52" Zero-Turn Mower, 23hp Kawasaki (SN: 2530 & Below) Main Frame Group Parts Diagram

IS1000Z Series 52" Zero-Turn Mower, 23hp Kawasaki

Main Frame Group Parts Diagram

  • Title

1

Ferris 5022842

SHOCK & SPRING ASSEMBLY
(Superseded to 5022842SM)

$216.99

$

In Stock, only 2 left!

0

2

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

3

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

5

Ferris 5047449B

MAIN FRAME

$

$

Currently unavailable

6

Ferris 5047457B

UPPER SHOCK MOUNT

$222.99

$

Usually ships in 2-12 days

0

7

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 5

0

8

Ferris 5025284

NUT, 3/4-16 Hex Nylon Lock
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

9

Ferris 5046093

SPACER, .75 x 1.50 x 1.00
(Superseded to 5046093SM)

$10.99

$

Usually ships in 2-12 days

0

10

Ferris 5022039

BALL JOINT, 3/4-16 Male
(Superseded to 5022039SM)

$37.99

$

In Stock, Qty 13

0

11

Ferris 5047461

SPACER, .76 x 1.00 x .25
(Superseded to 5047461SM)

$4.99

$

In Stock, only 1 left!

0

12

Ferris 5025265X32

BOLT, 3/4-16 x 4
(Superseded to 5025265X32SM)

$4.99

$

Usually ships in 2-12 days

0

13

Ferris 5025093

NUT, 3/4-16 Hex Jam
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0

14

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

15

Ferris 5022673

RUBBER BUMPER
(Superseded to 5022673SM)

$18.99

$

In Stock, only 1 left!

0

16

Ferris 5047445

SUSPENSION ARM ASSEMBLY - LH, Complete

$

$

Currently unavailable

17

Ferris 5047049B

CASTER YOKE
(Superseded to 5600097)

$124.99

$

Usually ships in 2-12 days

0

18

Ferris 5025265X24

BOLT, 3/4-16 x 3
(Superseded to 5025265X24SM)

$13.99

$

In Stock, only 2 left!

0

19

Ferris 5025265X48

BOLT, 3/4-16 x 6

$11.99

$

Usually ships in 2-12 days

0

20

Ferris 5047489

SPACER, .75 x 1.00 x 2.38
(Superseded to 5047489SM)

$35.99

$

In Stock, Qty 13

0

21

Ferris 5022852

PIVOT BEARING
(Superseded to 5022852SM)

$33.99

$

In Stock, Qty 16

0

22

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 2 left!

0

23

Ferris 5020884

BEARING, Tapered Roller
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

24

Ferris 5047452

SUSPENSION ARM ASSEMBLY - RH, Complete

$410.99

$

Usually ships in 2-12 days

0

25

Ferris 5025104

NUT, 3/4-16 Hex Slotted
(Superseded to 5025104FS)

$5.49

$

Usually ships in 2-12 days

0

26

Ferris 5021073

CAP
(Superseded to 5021073SM)

$7.49

$

In Stock, only 4 left!

0

27

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 2 left!
