IS 1000Z (5901050) - Ferris IS1000Z Series 48" Zero-Turn Mower, 21hp Kawasaki (SN: 2531 & Above) 48" & 52" Mower Deck - Housings, Covers, Spindles & Blades - IS Models Parts Diagram

IS1000Z Series 48" Zero-Turn Mower, 21hp Kawasaki

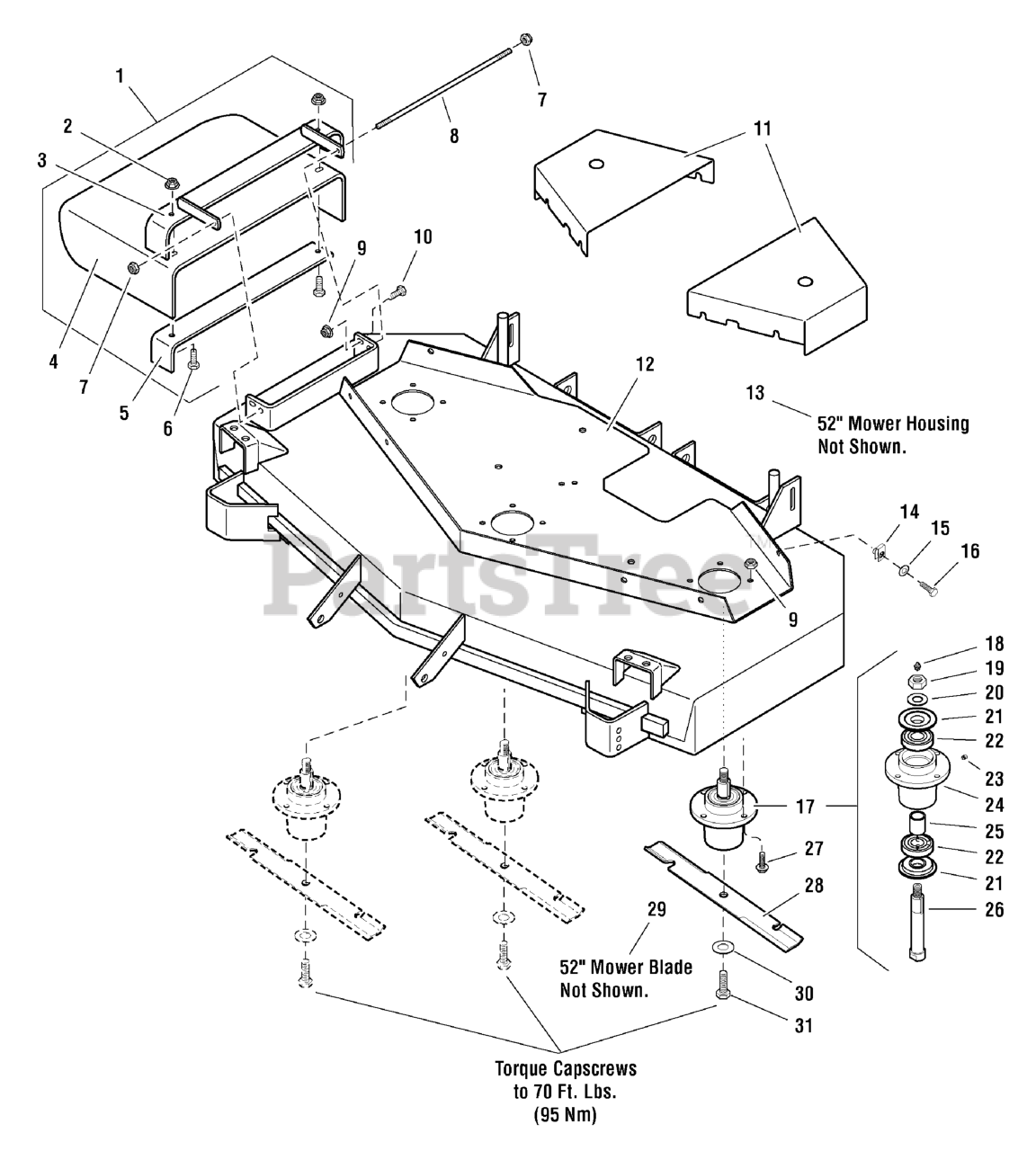

48" & 52" Mower Deck - Housings, Covers, Spindles & Blades - IS Models Parts Diagram

  • Title

1

Ferris 5061341

RUBBER CHUTE ASSEMBLY, Complete

Note: (Includes Ref No. 2 - 6)

$

$

Currently unavailable

2

Ferris 5025394

NUT, 3/8-16 Hex Nylock Flange
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

3

Ferris 5061343B

CHUTE FRAME

$

$

Currently unavailable

4

Ferris 5100524

CHUTE, DISCHARGE RUBBER, 44/48/52

$

$

Not available

5

Ferris 5061345B

CHUTE SUPPORT

$12.99

$

Usually ships in 2-12 days

0

6

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

7

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

8

Ferris 5042555

ROD, Linkage
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

9

Ferris 5025392

NUT, 5/16-18 Hex Nylock Flange
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

11

Ferris 5047129B

MOWER HOUSING GUARD

$131.99

$

Usually ships in 2-12 days

0

12

Ferris 5661432

DECK SHELL W/DECALS, 48"

Note: (Includes safety decals)

$1652.99

$

Usually ships in 2-12 days

0

13

Ferris 5661334

DECK SHELL W/DECALS, 52"

Note: (Includes safety decals, Not Shown)

$1880.99

$

Usually ships in 2-12 days

0

14

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

17

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

18

Ferris 23329

GREASE FITTING

$

$

Currently unavailable

19

Ferris 5025405

NUT, 3/4-16 Hex
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

20

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5049793

TRASH SHIELD
(Superseded to 5049793SM)

$16.99

$

In Stock, only 4 left!

0

22

Ferris 5023330

BEARING
(Superseded to 5023330SM)

$23.99

$

In Stock, Qty 20+

0

23

Ferris 5023296

RELIEF VALVE
(Superseded to 5023296SM)

$7.49

$

In Stock, only 1 left!

0

24

Ferris 5061097

SPINDLE HOUSING

$

$

Currently unavailable

25

Ferris 61099

SPACER, 1.00 x 1.25 x 1.75
(Superseded to 7061099YP)

$49.99

$

Usually ships in 2-12 days

0

26

Ferris 5061098

SPINDLE SHAFT
(Superseded to 5061098SM)

$77.99

$

In Stock, only 1 left!

0

27

Ferris 5023156

BOLT, Flange Head, 5/16-18 x 1-1/4
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

28

Ferris 5020843

MOWER BLADE, 16-1/4"
(Superseded to 5020843ASM)

$24.99

$

In Stock, Qty 20+

0

29

Ferris 5021227

MOWER BLADE, 18"
(Superseded to 5021227ASM)

$25.99

$

In Stock, only 1 left!

0

30

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

31

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0
