IS 1000Z (5901050) - Ferris IS1000Z Series 48" Zero-Turn Mower, 21hp Kawasaki (SN: 2530 & Below) Parking Brake Group - Upper Parts Diagram

IS1000Z Series 48" Zero-Turn Mower, 21hp Kawasaki

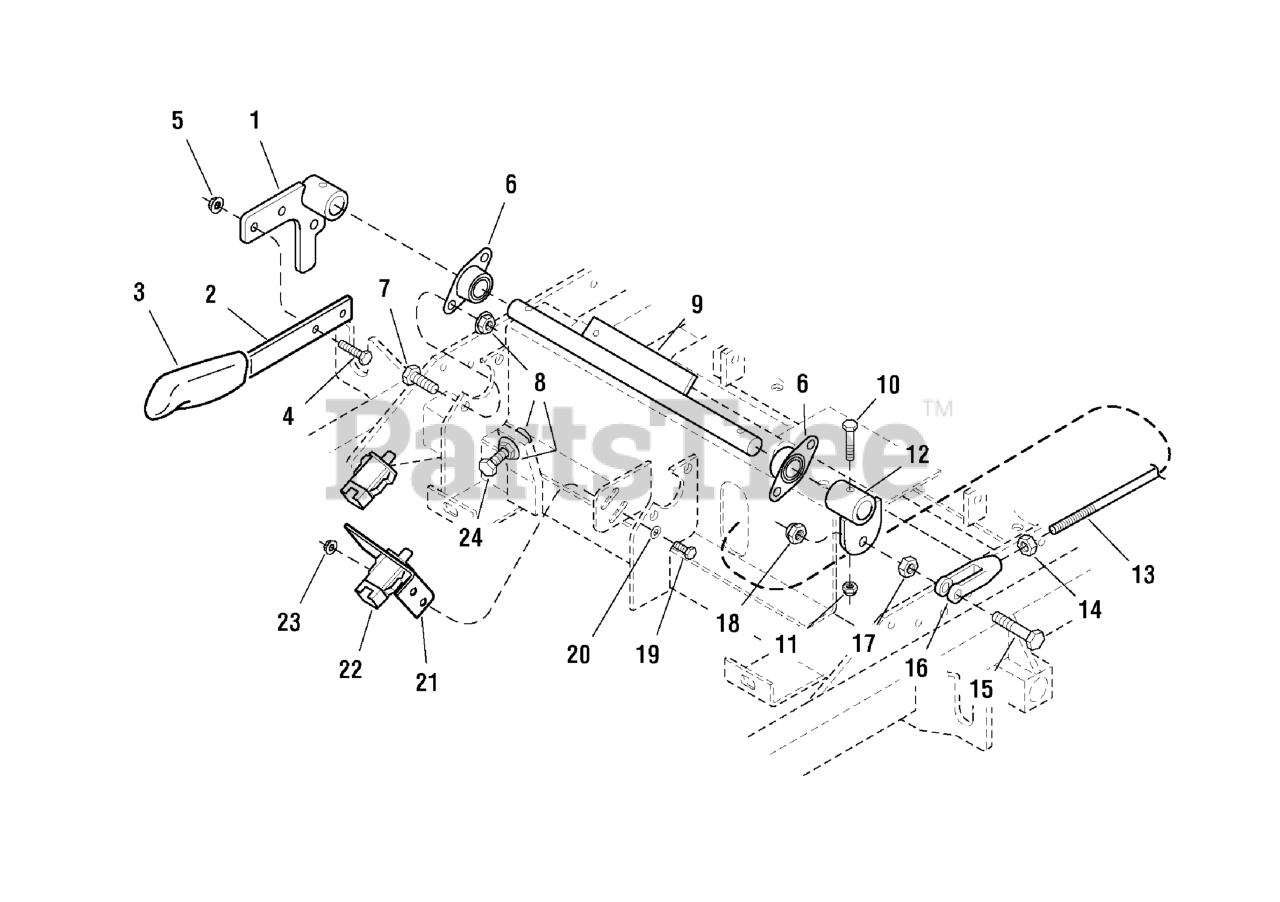

Parking Brake Group - Upper Parts Diagram

  • Title
1

Ferris 5045616B

BRAKE HANDLE MOUNT

$45.99

$

Usually ships in 2-12 days

0

2

Ferris 5045619B

BRAKE HANDLE

$20.99

$

Usually ships in 2-12 days

0

3

Ferris 1722302

GRIP
(Superseded to 1722302SM)

$8.49

$

In Stock, Qty 10

0

4

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

5

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

6

Ferris 5021098

BEARING, Flange
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

7

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

9

Ferris 5047083B

BRAKE HANDLE SHAFT

$

$

Currently unavailable

10

Ferris 5025010X14

BOLT, 1/4-20 x 1-3/4
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

11

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

12

Ferris 5045618A

PIVOT, LINKAGE MOUNT WELDMENT - BLK

$50.99

$

Usually ships in 2-12 days

0

13

Ferris 5047119

BRAKE CONNECTING ROD

$

$

Currently unavailable

14

Ferris 5025035

NUT, 3/8-24 Hex
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

16

Ferris 5021171

CLEVIS, 3/8-24, Plastic
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

17

Ferris 5025034

NUT, 3/8-16 Hex
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

18

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

19

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

20

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

21

Ferris 5045621B

SWITCH MOUNT BRACKET

$18.99

$

Usually ships in 2-12 days

0

22

SWITCH (see electrical group)

$

$

Not available

23

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

24

Ferris 5025058X14

BOLT, 3/8-16 x 1-3/4 TFL

$

$

Currently unavailable
