IR4002T (80154) - Snapper 16.5" Rear-Tine Tiller, 4hp Tiller Head Components Parts Diagram

16.5" Rear-Tine Tiller, 4hp

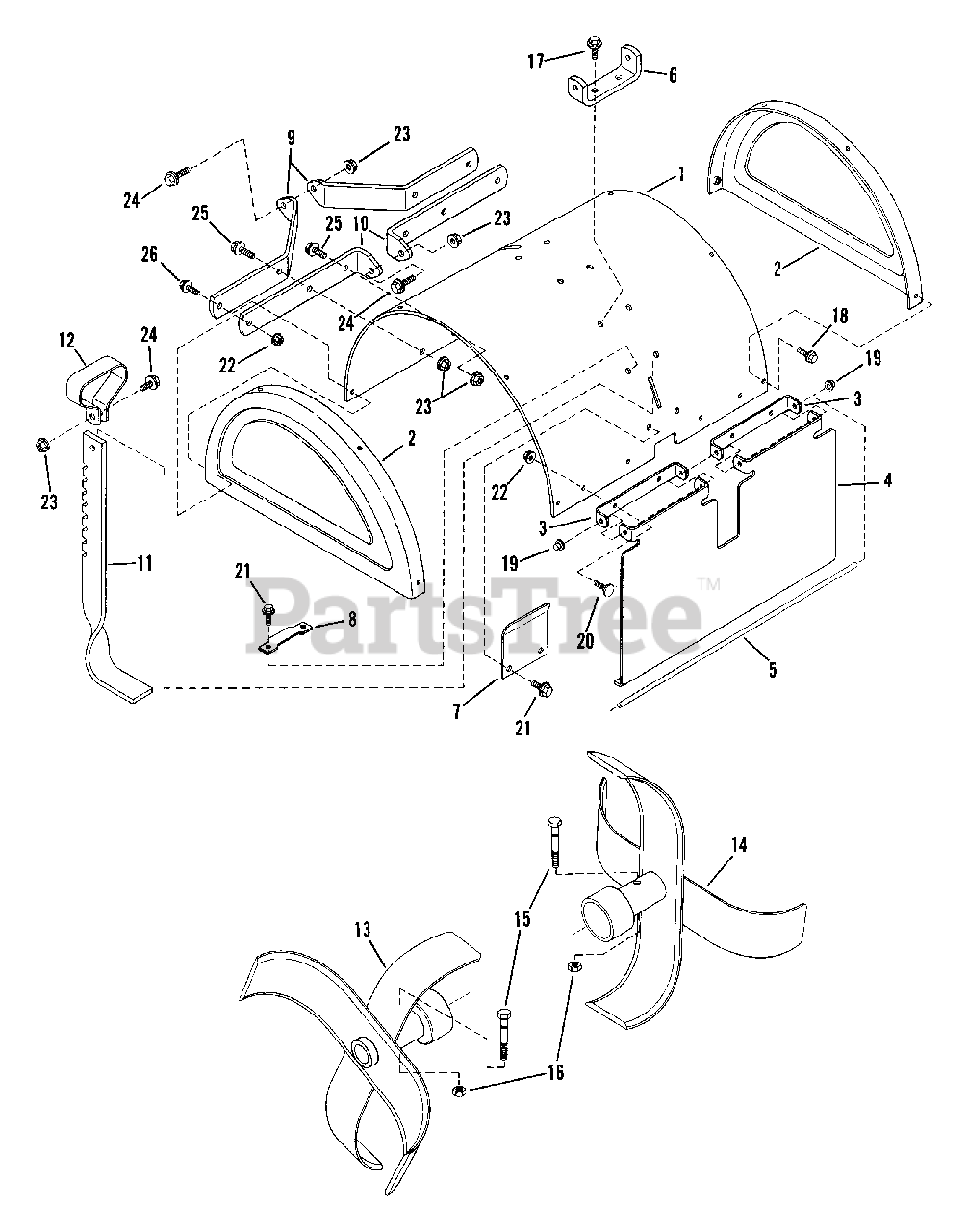

Tiller Head Components Parts Diagram

  • Title

1

Snapper 7035101

COVER, Tine
(Superseded to 7035101YP)

$119.99

$

In Stock, only 1 left!

0

2

Snapper 7036166

COVER, Side Tine

$

$

Not available

3

Snapper 7032536

HINGE, Half

$

$

Currently unavailable

4

Snapper 7036168

SHIELD, Drag
(Superseded to 7036168YP)

$51.99

$

In Stock, only 1 left!

0

5

Snapper 7032494

PIN, Drag Shield
(Superseded to 7032494YP)

$10.99

$

In Stock, only 1 left!

0

6

Snapper 7032507

BRACKET, Support

$

$

Not available

7

Snapper 7032659

SPRING, Depth Bar

$

$

Not available

8

Snapper 7032592

PLATE, Latch
(Superseded to 7032592YP)

$37.99

$

Usually ships in 2-12 days

0

9

Snapper 7038272

REINFORCEMENT, Front Tine Cover

$

$

Currently unavailable

10

Snapper 7038273

REINFORCEMENT, Rear Tine Cover

$

$

Not available

11

Snapper 7038235

BAR, Depth
(Superseded to 7038235YP)

$34.99

$

Usually ships in 2-12 days

0

12

Snapper 7032553

HANDLE, Depth Bar
(Superseded to 7032553YP)

$17.99

$

Usually ships in 2-12 days

0

13

Snapper 7075158

STRUCTURE, Left Tine
(Superseded to 7075158YP)

Note: Was 49734

$649.99

$

Usually ships in 2-12 days

0

14

Snapper 7075157

STRUCTURE, Right Tine
(Superseded to 7075157YP)

Note: Was 49735

$302.99

$

Usually ships in 2-12 days

0

15

Snapper 7028725

BOLT, 5/16-24 x 2" Shear
(Superseded to 704056)

Note: Was 15676

$4.49

$

In Stock, only 2 left!

0

16

Snapper 7090222

NUT, 5/16-24 Hex Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7091541

SCREW, 5/16-18 x 3/4" Self-Tapping
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7091084

SCREW, 1/4-20 x 3/8" Self-Tapping
(Superseded to 703583)

Note: Was 90302

$4.99

$

In Stock, Qty 20+

0

19

Snapper 7091020

NUT, 1/4 Push
(Superseded to 7091020YP)

Note: Was 90489

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7091604

BOLT, 1/4-20 x 1/2" Flat Head Carriage
(Superseded to 703978)

Note: Was 90969

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

22

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

23

Snapper 7091601

NUT, 5/16-1B Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

24

Snapper 7090661

BOLT, 5/16-18 x 1" Hex Flange Lock

$

$

Not available

25

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

26

Snapper 7090290

SCREW, 1/4-20 x 3/4" Self-Tapping
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0
