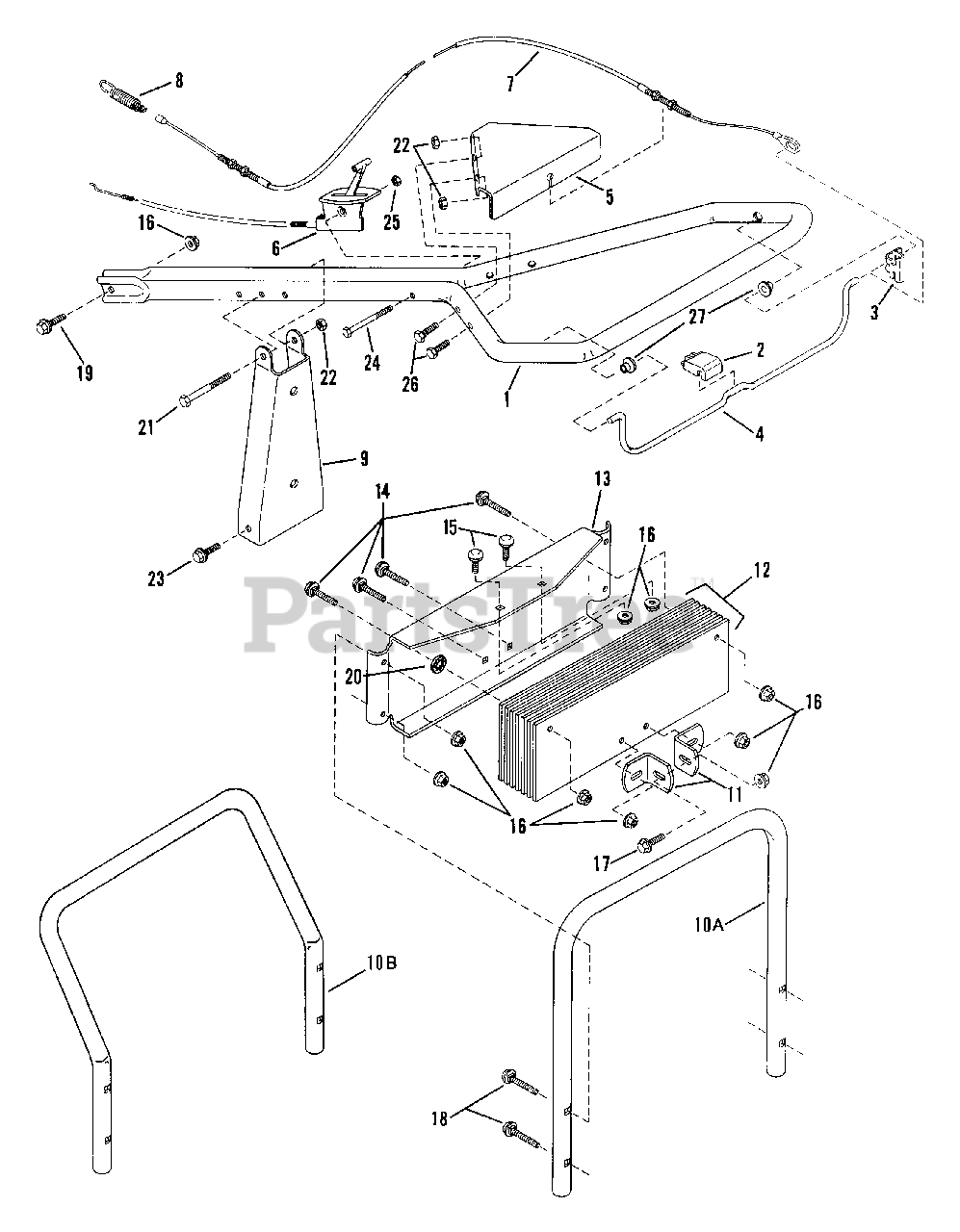

IR4002B (85320) - Snapper 16.5" Rear-Tine Tiller, 4hp Handle, Controls, Weights Parts Diagram

16.5" Rear-Tine Tiller, 4hp

Handle, Controls, Weights Parts Diagram

  • Title
1

Snapper 7036169

BAR, Handle
(Superseded to 7036169YP)

$91.99

$

Usually ships in 2-12 days

0

2

Snapper 7014682

COVER, Cable
(Superseded to 7014682YP)

$10.99

$

In Stock, only 3 left!

0

3

Snapper 7032593

CATCH, Bail

$

$

Not available

$

$

Not available

5

Snapper 7036170

PANEL, Dash
(Superseded to 7036170YP)

$18.99

$

In Stock, only 1 left!

0

6

Snapper 7018921

CONTROL, Throttle (Series 0 & 1)

$

$

Not available

7

Snapper 7018808

CABLE, Clutch
(Superseded to 7018808YP)

$23.99

$

In Stock, only 1 left!

0

8

Snapper 7015252

SPRING, Tine
(Superseded to 7015252YP)

$10.99

$

In Stock, Qty 8

0

9

Snapper 7038221

SUPPORT, Handle
(Superseded to 7038221YP)

$30.99

$

Usually ships in 2-12 days

0

10A

Snapper 7036171

BAR, Stand-Up (Briggs & Stratton)

$

$

Currently unavailable

10B

Snapper 7033131

BAR, Stand-Up (Tecumseh)

$

$

Currently unavailable

11

Snapper 7032496

BRACKET, Weight

$

$

Not available

12

Snapper 7038223

WEIGHT, Steel
(Superseded to 7038223YP)

$30.99

$

Usually ships in 2-12 days

0

13

Snapper 7035107

BOX, Weight
(Superseded to 7035107YP)

$56.99

$

Usually ships in 2-12 days

0

14

Snapper 7090861

BOLT, 5/16-18 x 1 3/4" Carriage

$

$

Not available

15

Snapper 7090316

BOLT, 5/16-18 x 5/8" Carriage
(Superseded to 703225)

Note: Was 90605

$3.99

$

In Stock, Qty 20+

0

Snapper 7090316

BOLT, 5/16-18 x 3/4" Carriage (IR 50028)
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7091601

LOCKNUT, 5/16-18 Hex Flange
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

17

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

18

Snapper 7091612

BOLT, 5/16-18 x 1 1/2" Carriage
(Superseded to 704210)

Note: Was 90582

$4.99

$

In Stock, Qty 12

0

19

Snapper 7090661

BOLT, 5/16-18 x 1" Hex Flange Lock

$

$

Not available

20

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7090831

SCREW, 5/16-18 x 2 3/4" Hex Head Cap
(Superseded to 7090831YP)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7091575

LOCKNUT, 5/16-18 Hex
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 20+

0

23

Snapper 7091541

SCREW, 5/16-18 x 3/4" Self-Tapping
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7091732

SCREW, 1/4-20 x 2 3/4" Hex Head Cap

Note: Was 90971

$

$

Not available

25

Snapper 7090372

LOCKNUT, 1/4-20 Hex
(Superseded to 703954)

$

$

Not available

26

Snapper 7091540

SCREW, 5/16-18 x 1 1/2" Hex Head Cap
(Superseded to 703906)

Note: Was 90211

$4.99

$

In Stock, only 4 left!

0

27

Snapper 7014681

BUSHING
(Superseded to 7014681YP)

$4.49

$

In Stock, Qty 12

0
