ICTH 16 (954130030) - Jonsered Lawn Tractor (1999-03) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

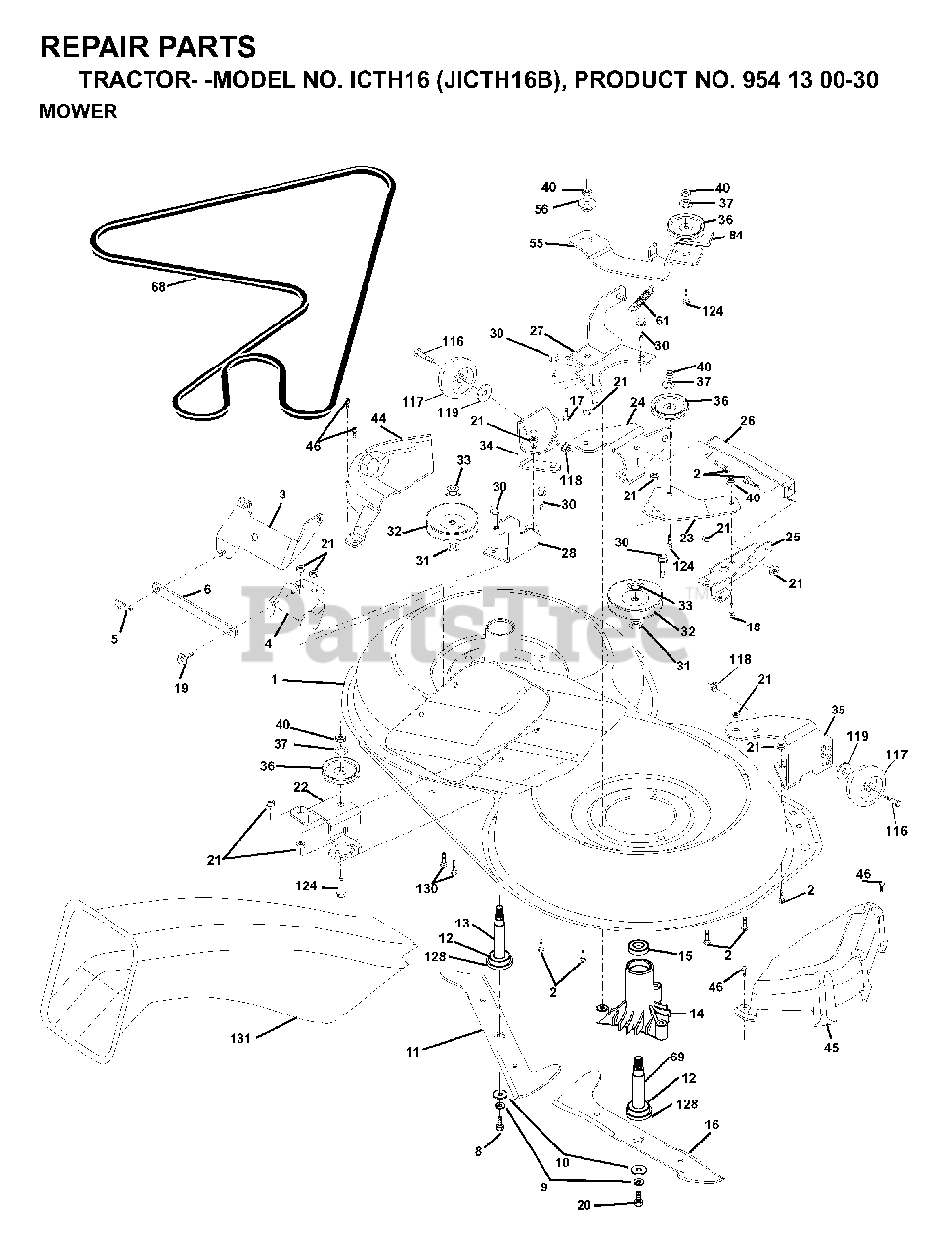

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Jonsered 532165552

MOWER HOUSING, DECK
(Superseded to 532176029)

$262.99

$

Usually ships in 3-10 days

0

2

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 532165569

BRACKET
(Superseded to 532431864)

$24.99

$

Usually ships in 3-10 days

0

4

$

$

Not available

5

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Jonsered 532165557

BAR SWAY
(Superseded to 165557)

$

$

Not available

8

Jonsered 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

9

Jonsered 810030600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

10

Jonsered 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

11

Jonsered 532165560

BLADE
(Superseded to 532170037)

$78.99

$

Usually ships in 3-10 days

0

12

Jonsered 532129895

BEARING
(Superseded to 738220419)

$17.99

$

In Stock, only 2 left!

0

13

Jonsered 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Jonsered 532128774

HSG MANDREL

$34.99

$

Usually ships in 3-10 days

0

15

$13.99

$

In Stock, Qty 11

0

16

Jonsered 532165561

BLADE
(Superseded to 165561)

$23.99

$

Usually ships in 3-10 days

0

17

Jonsered 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$4.99

$

Usually ships in 3-10 days

0

18

$6.49

$

Usually ships in 3-10 days

0

19

Jonsered 532132827

BOLT SHD 5/16-18

$

$

Not available

$

$

Not available

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

$

$

Not available

23

$

$

Not available

24

Jonsered 532165242

BRACKET
(Superseded to 165242)

$

$

Not available

25

Jonsered 532165244

BRACKET
(Superseded to 165244)

$

$

Not available

26

Jonsered 532165237

BRACE
(Superseded to 583259301)

$34.99

$

Usually ships in 3-10 days

0

27

$27.99

$

Usually ships in 3-10 days

0

28

Jonsered 532165567

BRACKET
(Superseded to 165567)

$

$

Not available

30

Jonsered 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 532173984)

$4.99

$

In Stock, Qty 16

0

31

Jonsered 532129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

32

Jonsered 532153531

PULLEY, MANDREL
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

33

Jonsered 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

$

$

Not available

35

$

$

Not available

36

Jonsered 532146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

37

$4.99

$

In Stock, Qty 5

0

40

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

$51.99

$

Usually ships in 3-10 days

0

45

Jonsered 532165556

COVER
(Superseded to 532175539)

$21.99

$

Usually ships in 3-10 days

0

46

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

55

Jonsered 532165445

ARM IDLER
(Superseded to 165445)

$9.99

$

Usually ships in 3-10 days

0

56

Jonsered 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

61

Jonsered 532165945

SPRING.TENSION.BELT

$14.99

$

Usually ships in 3-10 days

0

68

Jonsered 532165555

HEX-BELT 92 MOWER 105AA
(Superseded to 532180217)

$91.99

$

Usually ships in 3-10 days

0

69

Jonsered 532165482

SHAFT.ASM.W/LWR.BRG.RH.THREAD

$68.99

$

Usually ships in 3-10 days

0

84

Jonsered 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

116

Jonsered 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Jonsered 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 10

0

118

Jonsered 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Jonsered 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

124

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

128

Jonsered 532153390

WASHER FELT

$6.49

$

In Stock, only 3 left!

0

$7.49

$

In Stock, Qty 20+

0

131

Jonsered 532165661

CHUTE BAGGER

$93.99

$

Usually ships in 3-10 days

0

--

Jonsered 532130794

MANDREL ASM, LH 5PT STAR

$56.99

$

In Stock, only 4 left!

0

--

Jonsered 532165579

MANDREL ASM.CRD RH 6PT STAR

$91.99

$

Usually ships in 3-10 days

0

--

Jonsered 532165578

DECK MOWER COMP

$

$

Not available
