ICTH 16 (954130028) - Jonsered Lawn Tractor (1999-03) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

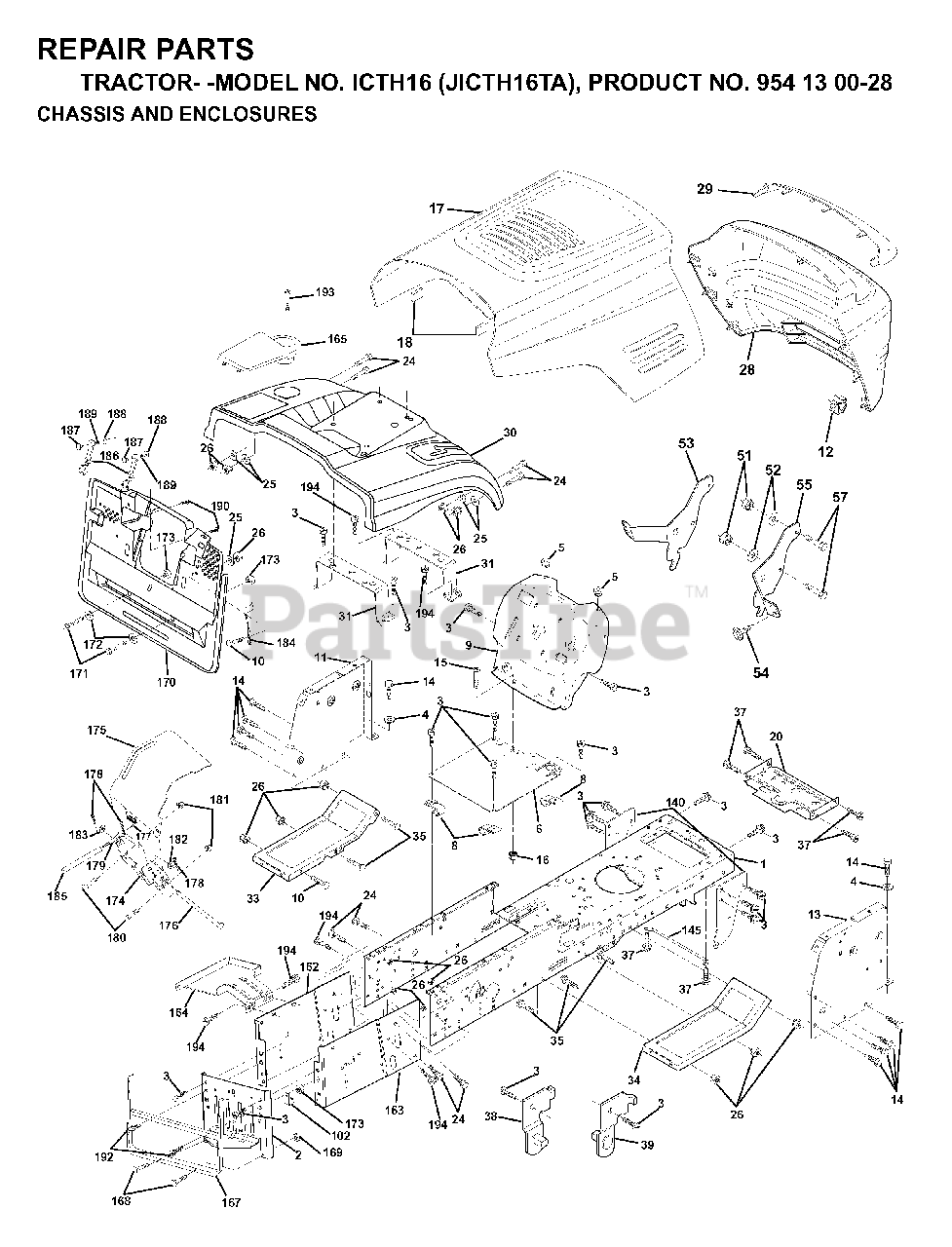

CHASSIS ENCLOSURES Parts Diagram

  • Title
1

Jonsered 532165480

No Description Available
(Superseded to 165480)

$

$

Not available

2

$56.99

$

Usually ships in 3-10 days

0

3

Jonsered 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

$

$

Not available

5

Jonsered 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

6

Jonsered 532155923

SADDLE FLAT

$14.99

$

Usually ships in 3-10 days

0

8

Jonsered 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

9

Jonsered 532168789

No Description Available

$

$

Not available

10

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 532155927

PANEL DASH LH
(Superseded to 532174996)

$

$

Not available

$3.49

$

In Stock, only 1 left!

0

13

Jonsered 532155936

DASH PANEL
(Superseded to 532172108)

$

$

Not available

14

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

16

Jonsered 873510500

NUT
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

17

Jonsered 532150760

No Description Available

$

$

Not available

18

Jonsered 532126938

BUMPER HOOD T

$

$

Not available

20

Jonsered 532156437

PLATE MTG
(Superseded to 532180679)

$11.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

25

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

26

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Jonsered 532150671

No Description Available

$

$

Not available

29

Jonsered 532166603

No Description Available

$

$

Not available

30

Jonsered 532168872

No Description Available

$

$

Not available

31

Jonsered 532165156

BRACKET SUPPORT FENDER
(Superseded to 165156)

$

$

Not available

33

Jonsered 532149139

No Description Available

$

$

Not available

34

Jonsered 532149140

No Description Available

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

37

$6.49

$

Usually ships in 3-10 days

0

38

Jonsered 532139886

BRACKET LH PIVOT

$8.99

$

Usually ships in 3-10 days

0

39

Jonsered 532139887

BRACKET RH PIVOT

$

$

Not available

51

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

52

$6.49

$

Usually ships in 3-10 days

0

53

Jonsered 532145201

No Description Available

$

$

Not available

$

$

Not available

55

$

$

Not available

57

Jonsered 874780412

BOLT
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

102

Jonsered 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

140

Jonsered 532158418

BRACKET SUSPENSION FRONT

$

$

Not available

145

Jonsered 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

162

$72.99

$

Usually ships in 3-10 days

0

163

$

$

Not available

164

Jonsered 532165605

SUPPORT
(Superseded to 165605)

$

$

Not available

165

Jonsered 532168407

No Description Available

$

$

Not available

167

$66.99

$

Usually ships in 3-10 days

0

168

Jonsered 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$6.49

$

Usually ships in 3-10 days

0

169

Jonsered 532123976

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

170

Jonsered 532165607

COVER BACKPLATE

$182.99

$

Usually ships in 3-10 days

0

171

Jonsered 874520640

No Description Available

$

$

Not available

172

Jonsered 819132016

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

173

$6.49

$

Usually ships in 3-10 days

0

174

$

$

Not available

175

$

$

Not available

176

Jonsered 532128600

HINGE PIN
(Superseded to 532192786)

$17.99

$

Usually ships in 3-10 days

0

177

Jonsered 532132796

SPRING COVER LH

$6.99

$

In Stock, only 1 left!

0

178

Jonsered 876020312

COTTER PIN
(Superseded to 876020308)

$

$

Not available

179

Jonsered 532165942

ROD PIVOT

$7.99

$

Usually ships in 3-10 days

0

180

Jonsered 874760516

BOLT RB
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

181

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

182

$4.99

$

Usually ships in 3-10 days

0

183

$4.99

$

In Stock, Qty 5

0

184

Jonsered 532166139

BRACKET
(Superseded to 166139)

$19.99

$

Usually ships in 3-10 days

0

185

Jonsered 532165940

TUBE LEVER

$6.49

$

Usually ships in 3-10 days

0

186

Jonsered 532160793

LATCH ASSY

$

$

Not available

187

Jonsered 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

188

$4.99

$

Usually ships in 3-10 days

0

189

Jonsered 810071000

LOCKWASHER

$4.99

$

In Stock, Qty 14

0

190

Jonsered 871161010

SCREW
(Superseded to 871081010)

$6.49

$

Usually ships in 3-10 days

0

192

Jonsered 817490624

SCREW LT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

193

Jonsered 817720410

SCREW LT
(Superseded to 874780410)

$3.99

$

In Stock, only 3 left!

0

194

Jonsered 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

--

Jonsered 532005479

PLUG BUTTON T

$5.99

$

Usually ships in 3-10 days

0
