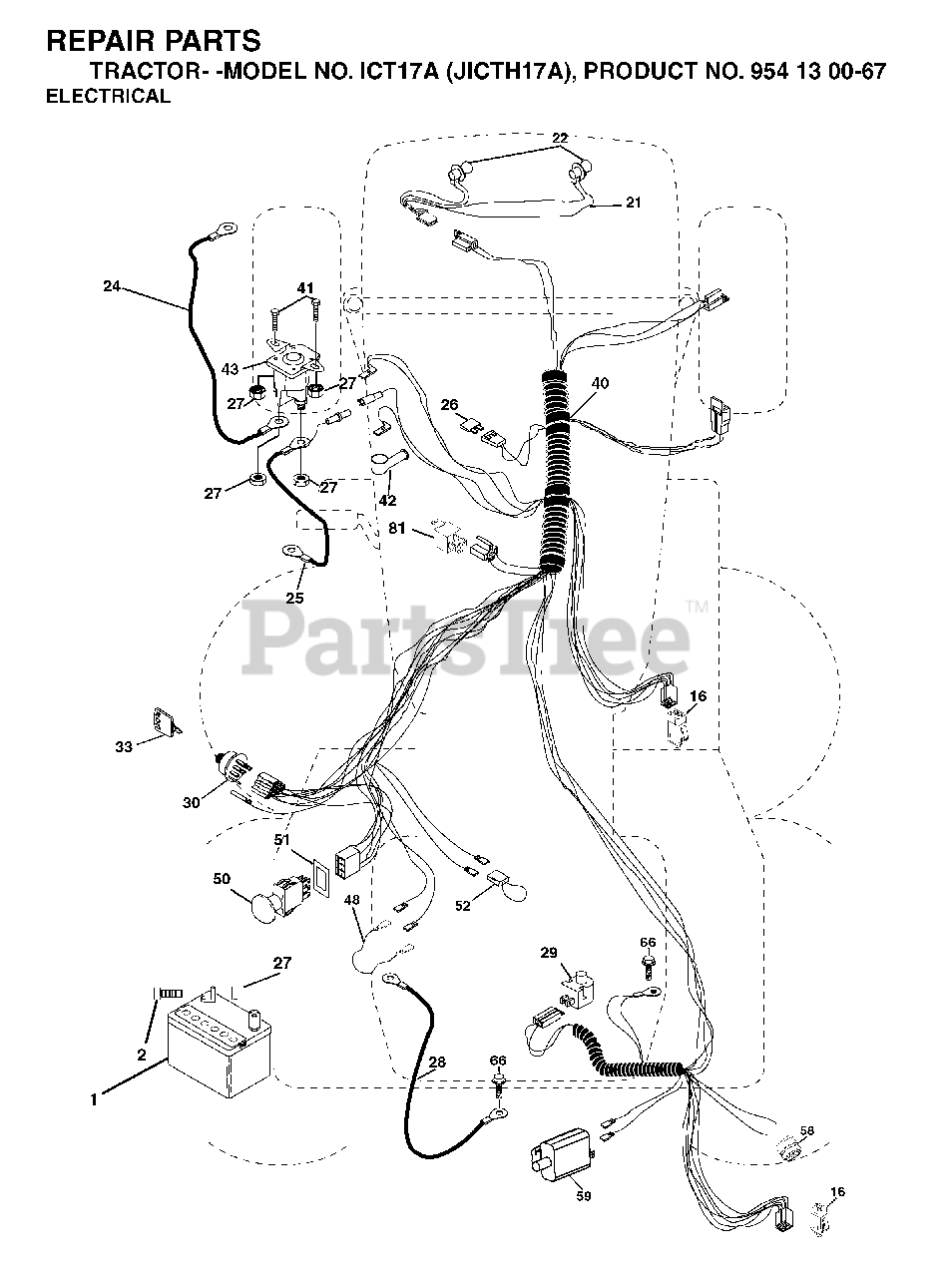

ICT 17 A (954130067) - Jonsered Lawn Tractor (2002-02) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title
1

Jonsered 532163465

REPL BY 532 12 38-99
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

$7.49

$

In Stock, only 1 left!

0

16

Jonsered 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 8

0

21

Jonsered 532175688

HARNESS.W/LIGHT SOCKET

$44.99

$

Usually ships in 3-10 days

0

22

Jonsered 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Jonsered 532165987

CABLE BATTERY

$30.99

$

Usually ships in 3-10 days

0

26

Jonsered 532175158

FUSE 20AMP

$7.49

$

In Stock, only 2 left!

0

27

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Jonsered 532127725

CABLE GROUND

$

$

Not available

29

Jonsered 532160784

PLUNGER SWITCH (COLOR:OLIVE)

$20.99

$

In Stock, only 1 left!

0

30

Jonsered 532175566

IGNITION SWITCH

$26.99

$

In Stock, Qty 8

0

33

Jonsered 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 9

0

40

Jonsered 532179727

No Description Available

$

$

Not available

41

Jonsered 871110408

No Description Available
(Superseded to 71110408)

$2.99

$

Usually ships in 3-10 days

0

42

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Jonsered 532178861

SOLENOID
(Superseded to 532146154)

$24.99

$

In Stock, only 3 left!

0

48

$6.49

$

Usually ships in 3-10 days

0

50

Jonsered 532174651

PTO SWITCH
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

51

Jonsered 532140405

RETAINING RING

$6.49

$

Usually ships in 3-10 days

0

52

Jonsered 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

58

Jonsered 532169419

BUZZER
(Superseded to 532169420)

$74.99

$

Usually ships in 3-10 days

0

59

Jonsered 532180379

No Description Available
(Superseded to 583100701)

$15.99

$

In Stock, only 1 left!

0

66

$6.49

$

Usually ships in 3-10 days

0

81

Jonsered 532109748

RELAY.ASSY.T

$30.99

$

In Stock, only 1 left!

0
