ICT 15 (954130041) - Jonsered Lawn Tractor (2001-01) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

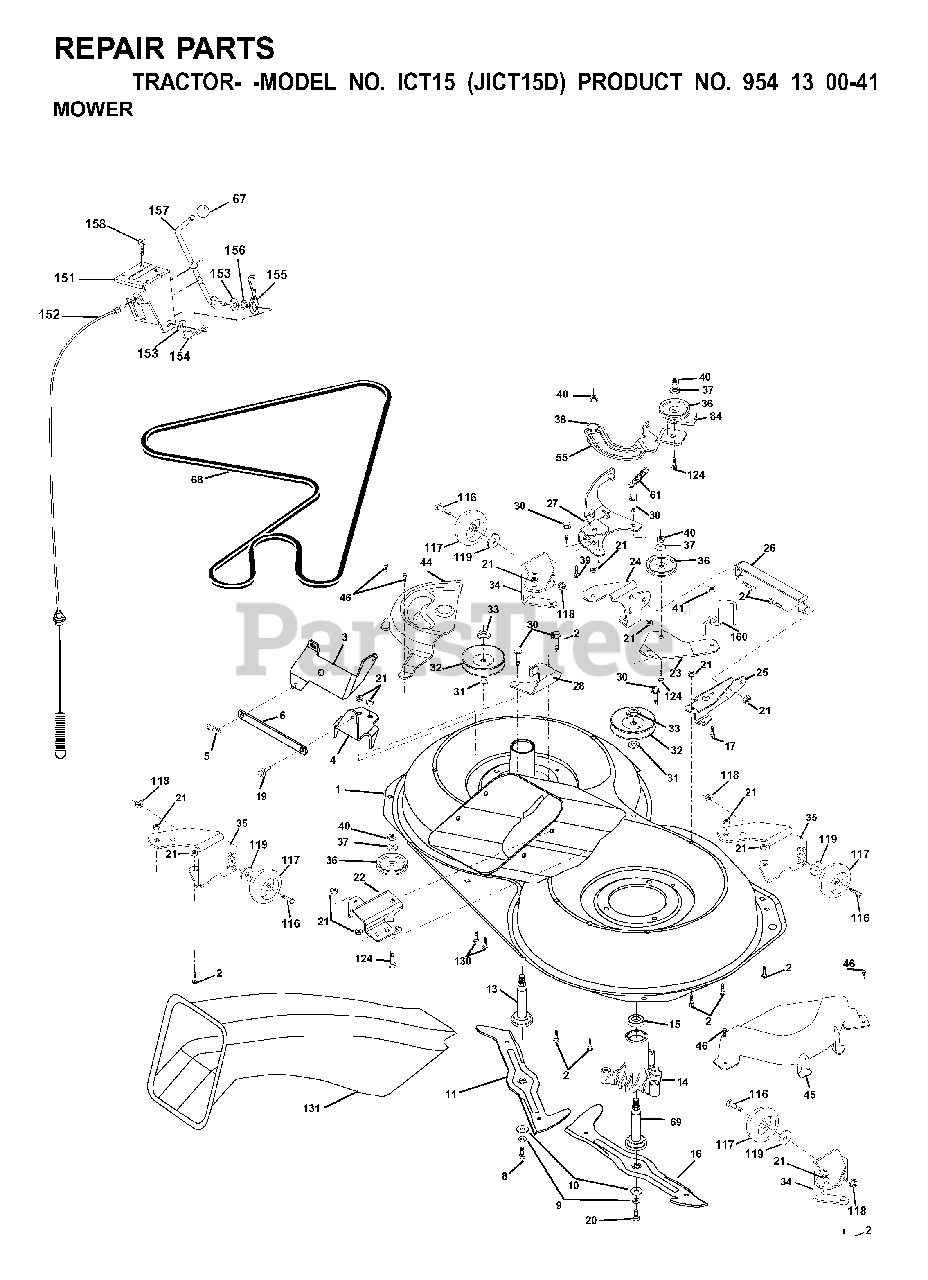

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

$

$

Not available

2

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 532165569

BRACKET
(Superseded to 532431864)

$24.99

$

Usually ships in 3-10 days

0

4

$

$

Not available

5

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Jonsered 532165557

BAR SWAY
(Superseded to 165557)

$

$

Not available

8

Jonsered 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

9

Jonsered 810030600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

10

Jonsered 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

11

Jonsered 532175450

BLADE, LH (CTH150)
(Superseded to 532180583)

$36.99

$

In Stock, only 1 left!

0

13

Jonsered 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Jonsered 532128774

HSG MANDREL

$34.99

$

Usually ships in 3-10 days

0

15

$13.99

$

In Stock, Qty 14

0

16

Jonsered 532175451

RP BLADE RH (CTH150)
(Superseded to 532180584)

$72.99

$

In Stock, only 1 left!

0

18

$6.49

$

Usually ships in 3-10 days

0

19

Jonsered 532132827

BOLT SHD 5/16-18

$

$

Not available

$

$

Not available

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Jonsered 532169165

BRACKET
(Superseded to 169165)

$

$

Not available

23

Jonsered 532169166

BRACKET
(Superseded to 169166)

$26.99

$

Usually ships in 3-10 days

0

24

Jonsered 532169170

No Description Available

$

$

Not available

25

$30.99

$

Usually ships in 3-10 days

0

26

Jonsered 532165237

BRACE
(Superseded to 583259301)

$34.99

$

Usually ships in 3-10 days

0

27

Jonsered 532169172

BRACKET
(Superseded to 169172)

$28.99

$

Usually ships in 3-10 days

0

28

Jonsered 532169168

No Description Available
(Superseded to 583029401)

$27.99

$

Usually ships in 3-10 days

0

30

Jonsered 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 532173984)

$4.99

$

In Stock, Qty 20+

0

31

Jonsered 532129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

32

Jonsered 532175707

No Description Available

$

$

Not available

33

Jonsered 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Jonsered 532169174

BRACKET
(Superseded to 583258801)

$26.99

$

Usually ships in 3-10 days

0

35

$

$

Not available

36

Jonsered 532146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

37

$4.99

$

In Stock, Qty 5

0

38

$10.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 9

0

40

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

$

$

Not available

45

Jonsered 532169179

MANDREL COVER RH
(Superseded to 532175539)

$21.99

$

Usually ships in 3-10 days

0

46

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

55

Jonsered 532169849

ARM IDLER

$34.99

$

Usually ships in 3-10 days

0

61

Jonsered 532175159

No Description Available

$

$

Not available

67

Jonsered 532106932

KNOB T (3/8 HOLE)

$7.99

$

In Stock, Qty 5

0

68

Jonsered 532169178

HEX-BELT 107 MOWER
(Superseded to 532402009)

$74.99

$

Usually ships in 3-10 days

0

69

Jonsered 532165482

SHAFT.ASM.W/LWR.BRG.RH.THREAD

$68.99

$

Usually ships in 3-10 days

0

84

Jonsered 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

116

Jonsered 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Jonsered 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 20+

0

118

Jonsered 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Jonsered 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

124

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, Qty 20+

0

131

Jonsered 532165661

CHUTE BAGGER

$93.99

$

Usually ships in 3-10 days

0

151

Jonsered 532169670

BRACKET, CLUTCH CABLE

$

$

Not available

152

Jonsered 532176074

No Description Available

$

$

Not available

153

Jonsered 532169674

WASHER FLAT 3/8"
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

154

Jonsered 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0

155

Jonsered 532169671

SPRING RETENTION LEVER

$6.49

$

Usually ships in 3-10 days

0

156

Jonsered 532169672

SPACER CLUTCH CABLE

$6.49

$

Usually ships in 3-10 days

0

157

Jonsered 532169669

ROD CLUTCH CABLE 3/8"

$

$

Not available

158

Jonsered 817720410

SCREW LT
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

160

Jonsered 532175160

No Description Available

$

$

Not available

--

Jonsered 532130794

MANDREL ASM, LH 5PT STAR

$56.99

$

In Stock, Qty 5

0

--

Jonsered 532165579

MANDREL ASM.CRD RH 6PT STAR

$91.99

$

Usually ships in 3-10 days

0

--

Jonsered 532175842

No Description Available

$

$

Not available
