ICT 13 A (954130040) - Jonsered Lawn Tractor (2000-04) STEERING Parts Diagram

Lawn Tractor

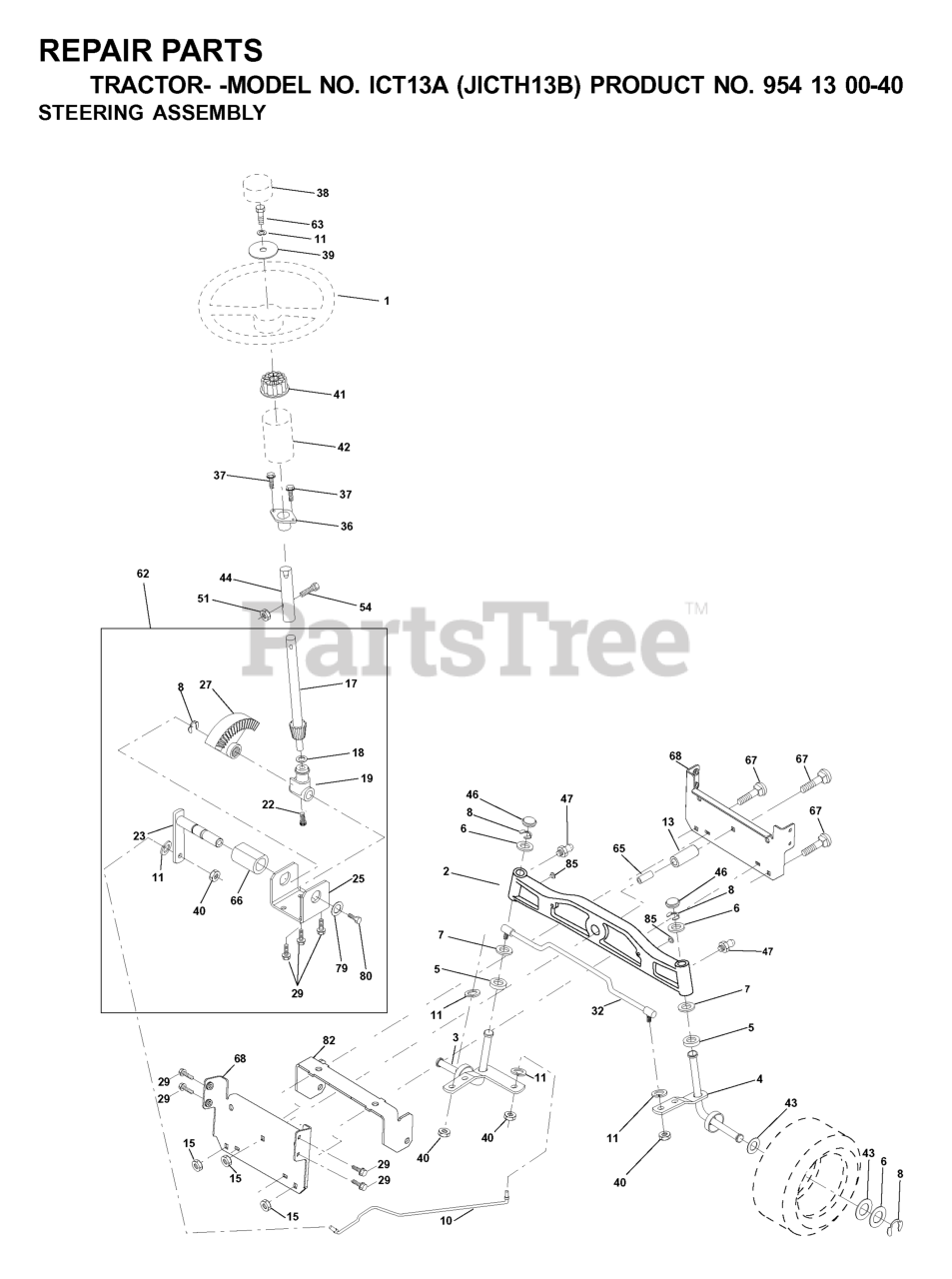

STEERING Parts Diagram

  • Title

1

Jonsered 532172092

No Description Available

$17.99

$

Usually ships in 3-10 days

0

2

Jonsered 532172393

AXLE ASM
(Superseded to 532184706)

$169.99

$

In Stock, only 3 left!

0

3

Jonsered 532169840

SPINDLE.ASM.LH.15"TIRES
(Superseded to 596873901)

$18.99

$

In Stock, Qty 13

0

4

Jonsered 532169839

SPINDLE.ASM.RH.15"TIRES
(Superseded to 596873801)

$31.99

$

In Stock, Qty 15

0

5

Jonsered 532124931

No Description Available
(Superseded to 532006266)

$7.49

$

In Stock, Qty 20+

0

6

Jonsered 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

7

Jonsered 819272016

WASHER

$6.49

$

In Stock, Qty 12

0

8

Jonsered 812000029

RING CLIP

$4.99

$

In Stock, Qty 20+

0

10

Jonsered 532169832

DRAGLINK.15".TIRES

$85.99

$

In Stock, only 4 left!

0

11

Jonsered 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

13

Jonsered 532136518

TUBE, PIVOT AXLE

$10.99

$

In Stock, Qty 20+

0

15

Jonsered 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Jonsered 532156546

SHAFT ASM STEERING

$35.99

$

Usually ships in 3-10 days

0

18

Jonsered 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 20+

0

19

Jonsered 532160395

STEERING SHAFT SUPPORT

$10.99

$

In Stock, Qty 13

0

22

Jonsered 532165857

SCREW.HX.WSH.HD

$6.49

$

In Stock, only 3 left!

0

23

Jonsered 532165851

SHAFT ASSY PITTMAN

$26.99

$

Usually ships in 3-10 days

0

25

Jonsered 532154406

BRACKET STEERING

$8.99

$

In Stock, only 2 left!

0

27

Jonsered 532136874

GEAR.SECTOR

$80.99

$

In Stock, Qty 7

0

29

Jonsered 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

32

Jonsered 532170162

ROD.ASM.TIE.BALL.JOINT.NOVAN

$102.99

$

In Stock, only 3 left!

0

36

Jonsered 532155099

BUSHING, STEERING
(Superseded to 532155106)

$10.99

$

In Stock, Qty 10

0

37

Jonsered 532152927

SCREW

$7.49

$

In Stock, Qty 20+

0

38

Jonsered 532172093

No Description Available

$

$

Not available

39

Jonsered 819132411

WASHER 13/32 X 2-3/8 X 12 GA

$

$

Not available

40

Jonsered 532124701

GRIPCO NUT
(Superseded to 532007810)

$3.99

$

Usually ships in 3-10 days

0

41

Jonsered 532159945

STEERING WHEEL ADAPTOR

$

$

Not available

42

Jonsered 532169633

BOOT.STEERING.SHAFT.BLACK

$8.99

$

In Stock, only 2 left!

0

43

Jonsered 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

44

Jonsered 532153720

EXT SHAFT STEERING
(Superseded to 532153721)

$

$

Not available

46

Jonsered 532121232

CAP.SPINDLE

$4.99

$

In Stock, Qty 20+

0

47

Jonsered 532124836

ZERK M
(Superseded to 532006855)

$7.49

$

In Stock, Qty 11

0

51

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

54

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

62

Jonsered 532167902

STEERING KIT
(Superseded to 584371701)

$148.99

$

In Stock, Qty 6

0

63

Jonsered 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

65

Jonsered 532160367

SPACER BRACE AXLE
(Superseded to 532414736)

$6.99

$

In Stock, Qty 13

0

66

Jonsered 532154404

BEARING ARM

$6.49

$

In Stock, only 1 left!

0

67

Jonsered 872140618

BOLT
(Superseded to 872110618)

$6.49

$

In Stock, Qty 19

0

68

Jonsered 532169827

BRACE.AXLE.15"TIRES

$21.99

$

Usually ships in 3-10 days

0

79

Jonsered 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

80

Jonsered 874950612

BOLT.HX.NYLON3/8-16X

$6.49

$

In Stock, only 3 left!

0

82

Jonsered 532169835

BRACKET
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

85

Jonsered 532133835

FASTENER.XMAS.TREE

$7.49

$

Usually ships in 3-10 days
