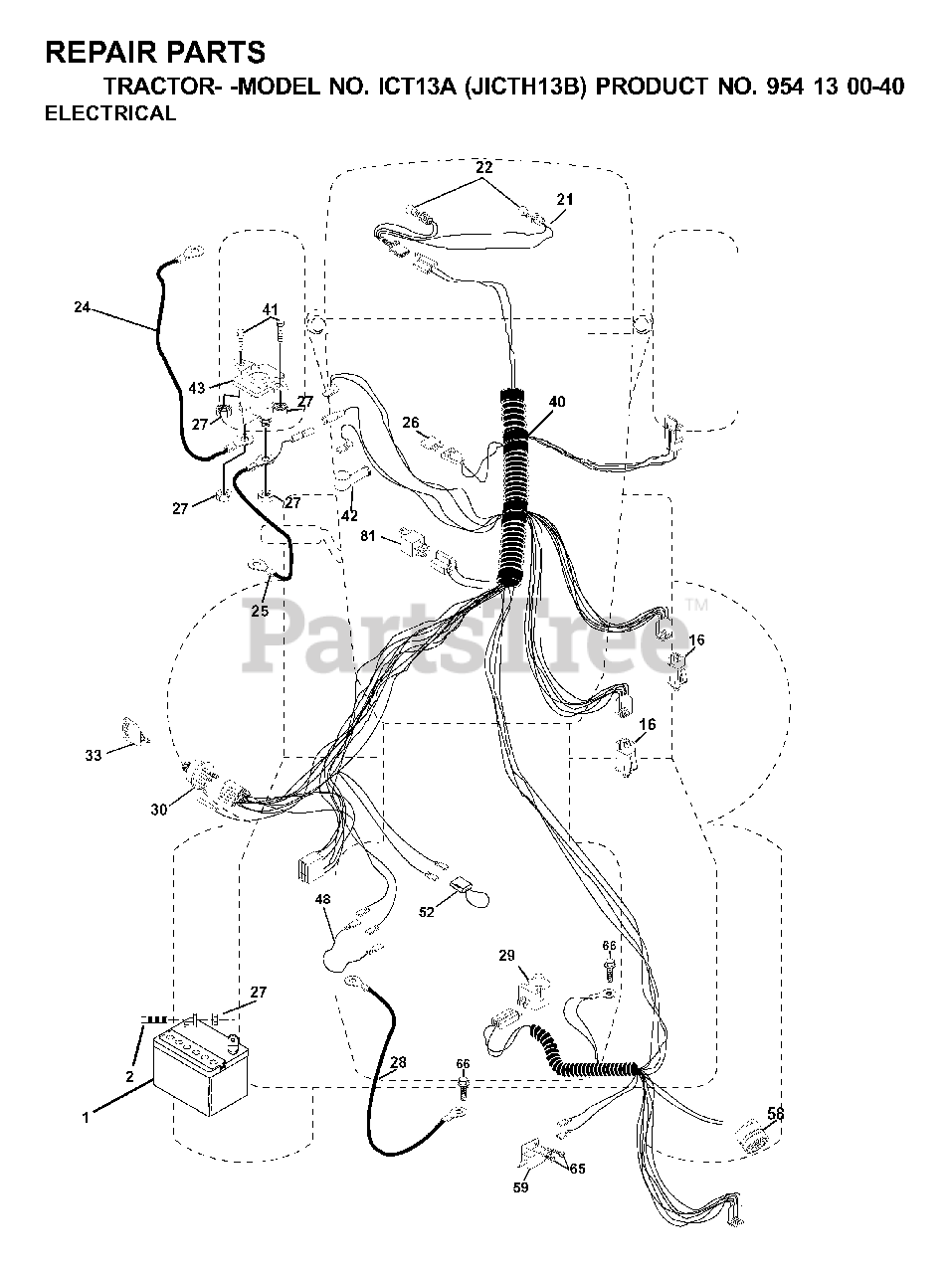

ICT 13 A (954130040) - Jonsered Lawn Tractor (2000-04) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Jonsered 532144925

BATTERY 12 VOLT 25 AMP
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Jonsered 874760412

BOLT LT

$7.49

$

In Stock, only 1 left!

0

16

Jonsered 532153664

SWITCH INTERLOCK
(Superseded to 532176138)

$22.99

$

In Stock, Qty 8

0

21

Jonsered 532166182

HARNESS ASM, LIGHT W/4152J

$

$

Not available

22

Jonsered 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 532004499

No Description Available

$

$

Not available

25

Jonsered 532165987

CABLE BATTERY

$30.99

$

Usually ships in 3-10 days

0

26

Jonsered 532166180

FUSE 15 AMP
(Superseded to 532175158)

$7.49

$

In Stock, only 2 left!

0

27

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Jonsered 532127725

CABLE GROUND

$

$

Not available

29

Jonsered 532160784

PLUNGER SWITCH (COLOR:OLIVE)

$20.99

$

In Stock, only 1 left!

0

30

Jonsered 532136968

SHAFT ASM LIFT RH

$

$

Not available

33

Jonsered 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 9

0

40

Jonsered 532170164

No Description Available

$

$

Not available

41

Jonsered 871110408

No Description Available
(Superseded to 71110408)

$2.99

$

Usually ships in 3-10 days

0

42

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Jonsered 532145673

SOLINOID
(Superseded to 532146154)

$24.99

$

In Stock, only 3 left!

0

48

Jonsered 532140844

ADAPTER

$6.49

$

Usually ships in 3-10 days

0

52

Jonsered 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

58

Jonsered 532169419

BUZZER
(Superseded to 532169420)

$74.99

$

Usually ships in 3-10 days

0

59

Jonsered 532166299

SWITCH

$

$

Not available

65

Jonsered 817211008

SCREW **

$4.99

$

Usually ships in 3-10 days

0

66

Jonsered 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

81

Jonsered 532109748

RELAY.ASSY.T

$30.99

$

In Stock, only 1 left!

0
