ICT 13 A (954130040) - Jonsered Lawn Tractor (2000-02) ENGINE CUTTING EQUIPMENT Parts Diagram

Lawn Tractor

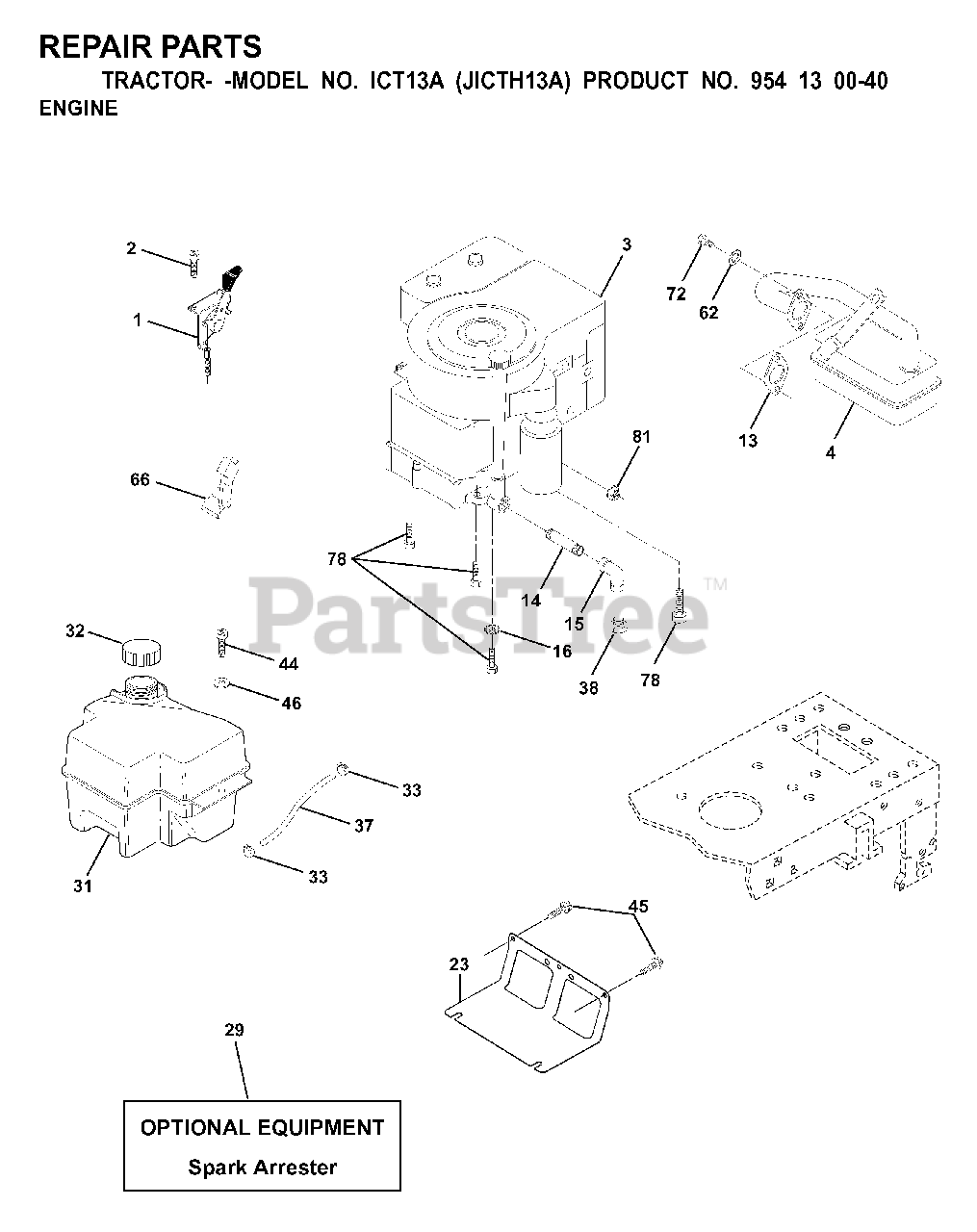

ENGINE CUTTING EQUIPMENT Parts Diagram

  • Title
1

Jonsered 532141359

CONTROL
(Superseded to 532170865)

$27.99

$

Usually ships in 3-10 days

0

2

Jonsered 817720410

SCREW LT
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

4

$102.99

$

In Stock, only 1 left!

0

13

Jonsered 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

$

$

Not available

15

Jonsered 813200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

16

Jonsered 811050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

23

Jonsered 532169837

SHEILD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

31

Jonsered 532161911

FUEL TANK
(Superseded to 532180645)

$

$

Not available

32

Jonsered 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Jonsered 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

37

Jonsered 532137040

LINE.FUEL.20

$6.49

$

Usually ships in 3-10 days

0

44

Jonsered 817490412

SCREW HEX CRT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

45

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

46

$6.49

$

Usually ships in 3-10 days

0

62

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

66

Jonsered 532127951

STOP THROTTLE

$

$

Not available

72

$

$

Not available

78

Jonsered 817490620

SCREW
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

81

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available
