ICFR7005BV (84456) - Snapper 16.5" Rear-Tine Tiller, 7hp CULTIVATOR SHIELD KIT Parts Diagram

16.5" Rear-Tine Tiller, 7hp

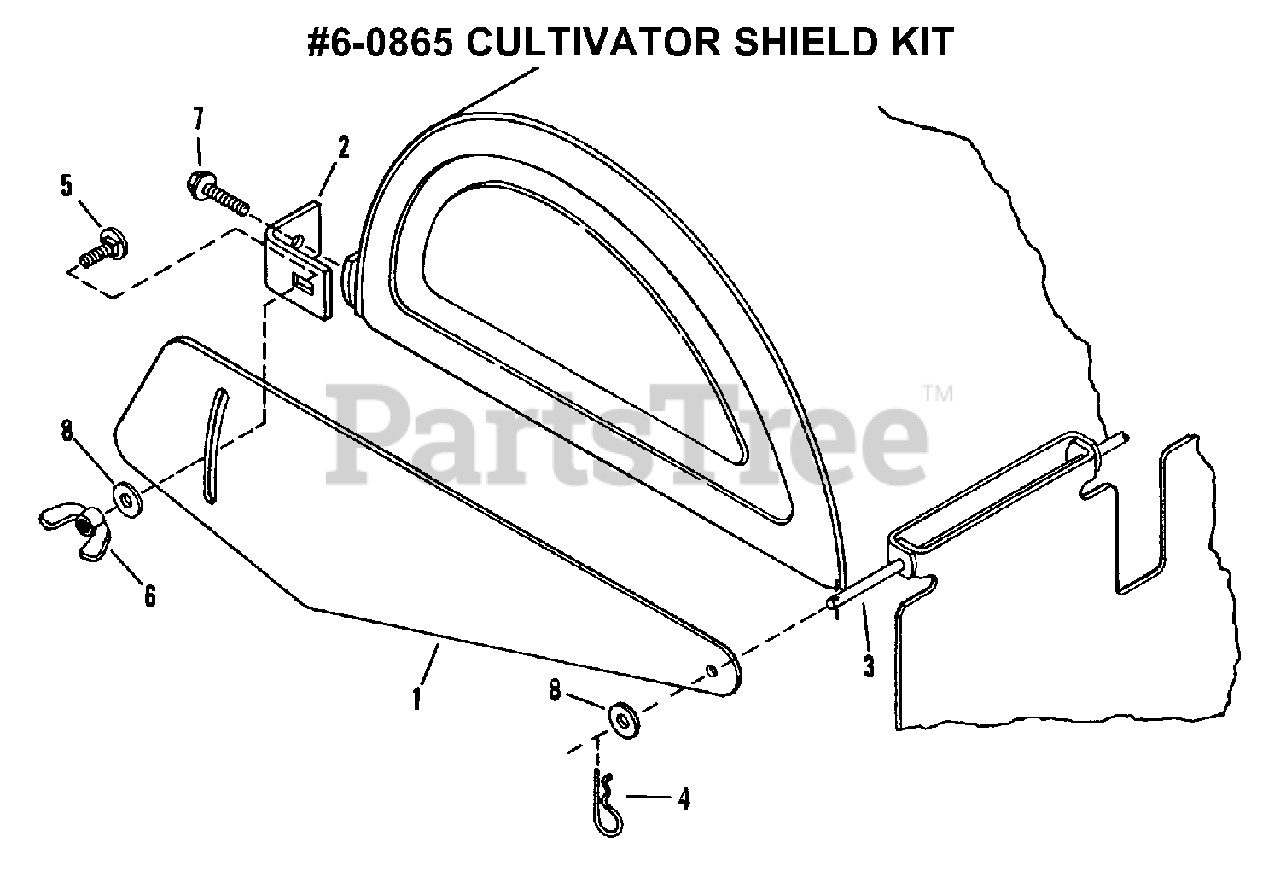

CULTIVATOR SHIELD KIT Parts Diagram

  • Title

Snapper 7060865

KIT, Cultivator Shield

Note: (Incl. items 1 thru 9)

$

$

Currently unavailable

1

Snapper 7036266

CULTIVATOR, Shield

$

$

Currently unavailable

2

Snapper 7032724

BRACKET, Front Latch

$

$

Not available

3

Snapper 7038397

PIN, Drag Shield
(Superseded to 7038397YP)

$31.99

$

Usually ships in 2-12 days

0

4

Snapper 7012431

PIN, 1/4" Hair
(Superseded to 7012431SM)

$2.99

$

Usually ships in 2-12 days

0

5

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Hd. Short Neck Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7090911

SCREW, 1/4-20 x 1-1/4" Hex Washer Self-Tap

$

$

Not available

7

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0
