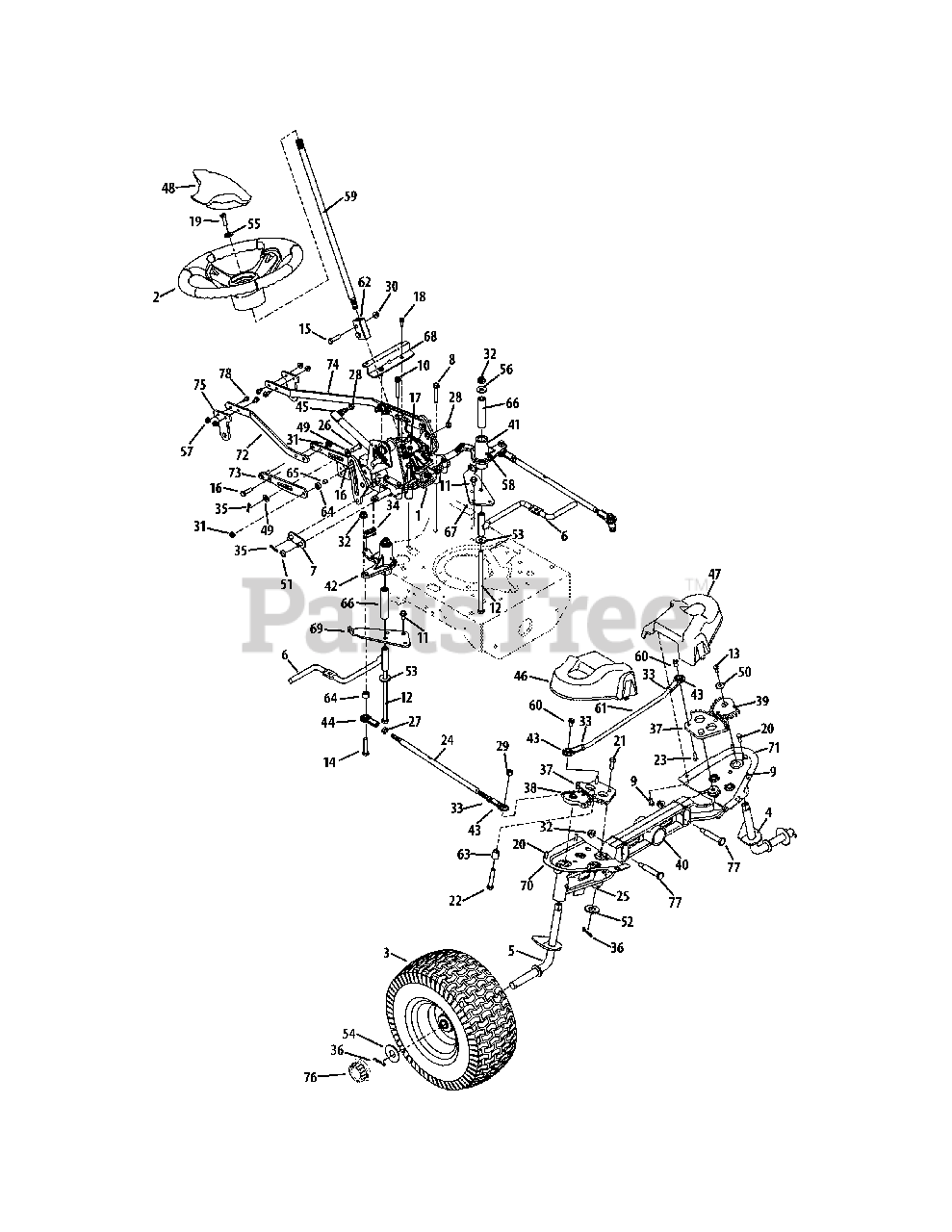

i1050 (17WF9BKP010) - Cub Cadet 50" Zero-Turn Mower (2011) Steering Controls & Front Axle Parts Diagram

50" Zero-Turn Mower

Steering Controls & Front Axle Parts Diagram

  • Title

1

Cub Cadet 918-04634A

Hydro Steering Assembly

$982.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 631-04008A

Steering Wheel Assembly
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

3

Cub Cadet 634-04415-0931

Wheel Assembly 15 x 5.0 x 6 (42")

$

$

Not available

3

Cub Cadet 734-04347-0901

Tire, 15 x 5.0 x 6 (42")

Note: Not shown

$

$

Not available

3

Cub Cadet N/A

Wheel Assembly 15 x 6 x 6 (50")

$

$

Currently unavailable

3

Cub Cadet 734-1731-0901

Tire, 15 x 6 x 6 (50")

Note: Not shown

$49.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 934-04104A-0499

Rim Assembly, 6.0 x 4.5

Note: Not shown

$181.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 737-0224

Grease Fitting

Note: Not shown

$7.49

$

In Stock, only 3 left!

0

4

Cub Cadet 683-04440

LH Axle Assembly (42")

$81.99

$

In Stock, only 1 left!

0

4

Cub Cadet 647-04062-0637

LH Axle Assembly (50")

$285.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 683-04439

RH Axle Assembly (42")

$87.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 647-04063-0637

RH Axle Assembly (50")

$285.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 647-04080A-0637

Fender Support Rod

$94.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 683-04332

Steering Box/Hydro Link

$

$

Not available

8

Cub Cadet 710-04006

Hex Washer Screw, 5/16-18 x 2.0

$9.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-04187

Hex Washer Screw, 1/4-15 x .5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-04389

Hex Washer Screw, 5/16-18 x 2.25

$6.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-04692

Hex Screw, 3/8-16 x 7.25

$9.49

$

In Stock, only 1 left!

0

13

Cub Cadet 710-0513

Hex Lock Screw, 1/4-28 x .625
(Superseded to 710-0513A)

$4.99

$

In Stock, Qty 7

0

14

Cub Cadet 710-0520

Hex Screw, 3/8-16 x 1.5

$4.49

$

In Stock, Qty 6

0

15

Cub Cadet 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0597

Hex Screw, 1/4-20 x 1.0

$3.99

$

In Stock, Qty 14

0

17

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0642

Hex Washer Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0650

Hex Wash Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3119

Hex Lock Screw, 3/8-16 x .75

$6.99

$

In Stock, only 1 left!

0

22

Cub Cadet 710-3144

Hex Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-3296

Hex Lock Screw, 1/4-20 x .75

$4.49

$

In Stock, only 3 left!

0

24

Cub Cadet 711-04472

Drag Link

$

$

Not available

25

Cub Cadet 711-04562

Steering Pivot Gear Shaft

$16.99

$

In Stock, only 1 left!

0

26

Cub Cadet 711-04722

Clevis Pin, .375 x .969

$6.99

$

In Stock, only 3 left!

0

27

Cub Cadet 712-0312A

Jam Nut, 3/8-24

$3.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 712-0365

Hex Lock Nut, M8 x 1.25

$

$

Not available

29

Cub Cadet 712-0375

Hex Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 6

0

30

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-04065

Flange Lock Nut, 3/16-16

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 912-3001

Hex Jam Nut, 3/8-24

$6.99

$

In Stock, Qty 17

0

34

Cub Cadet 913-04037

Connecting Link

$6.99

$

In Stock, only 3 left!

0

35

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

36

Cub Cadet 714-04039A

Cotter Pin, 5/32 x 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 717-04274A

Spur Gear

$203.99

$

In Stock, only 1 left!

0

38

Cub Cadet 717-04275A

RH Spur Gear

$34.99

$

In Stock, only 3 left!

0

39

Cub Cadet 717-04282A

LH Spur Gear

$34.99

$

In Stock, only 2 left!

0

40

Cub Cadet 719-04170A

Pivot Bar Axle

$274.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 719-04287-0637

LH Steering Arm

$43.99

$

In Stock, only 1 left!

0

42

Cub Cadet 719-04288-0637

RH Steering Arm

$41.99

$

In Stock, only 1 left!

0

43

Cub Cadet 723-04035

Ball Joint Rod End

$36.99

$

In Stock, only 4 left!

0

44

Cub Cadet 723-04036

Ball Joint Rod End

$37.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 927-0626A

Damper Cylinder

$153.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 731-05476

RH Steering Gear Cover

$

$

Not available

47

Cub Cadet 731-05618

LH Steering Gear Cover

$23.99

$

In Stock, only 3 left!

0

48

Cub Cadet 731-04532B

Steering Wheel Cover

$24.99

$

In Stock, Qty 12

0

49

Cub Cadet 936-0185

Flat Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 936-0286

Spring Washer, .39 x .75 x .010

$6.99

$

In Stock, only 2 left!

0

52

Cub Cadet 736-0315

Flat Washer, .76 x 1.5 x .12

$6.99

$

In Stock, Qty 6

0

53

Cub Cadet 936-0452

Bell Washer, .396 x 1.14 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

54

Cub Cadet 736-0866

Flat Washer, .755 x 1.92 x .060

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 936-3004

Flat Washer, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

56

Cub Cadet 736-3052

Flat Washer, .406 x 1.0 x .105

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

58

Cub Cadet 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

59

Cub Cadet 738-04189

Steering Shaft, .625 x 17.281

$

$

Not available

60

Cub Cadet 738-04240

Shoulder Nut, .375 x .5

$6.99

$

In Stock, Qty 20+

0

61

Cub Cadet 747-04496

Rod, 3/8-24 x 14.4

$

$

Not available

62

Cub Cadet 748-04139

Steering Shaft Block

$41.99

$

In Stock, Qty 8

0

63

Cub Cadet 750-04676

Spacer, .385 x .63 x .75

$20.99

$

In Stock, only 2 left!

0

64

Cub Cadet 750-04776

Spacer, .380 x .625 x .265

$5.49

$

In Stock, only 3 left!

0

65

Cub Cadet 750-04777

Spacer, .26 x .372 x .33

$6.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 750-04855

Spacer, .385 x .75 x 3.47

$12.99

$

In Stock, only 2 left!

0

67

Cub Cadet 783-04798-0637

LH Steering Support Bracket

$14.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 783-04799-0637

Upper Steering Support Bracket

$

$

Not available

69

Cub Cadet 783-05140-0637

RH Steering Support Bracket

$16.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 783-05184-0637

RH Base Cover Plate

$

$

Not available

71

Cub Cadet 783-05185-0637

LH Base Cover Plate

$

$

Not available

72

Cub Cadet 783-05380-0637

RH Steering/Hydro RH Link

$25.99

$

In Stock, only 2 left!

0

73

Cub Cadet 783-05381

Hydro/Steering Adjust. Bracket

$45.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 783-05404-0637

LH Steering/Hydro Link

$30.99

$

In Stock, only 1 left!

0

75

Cub Cadet 783-05446A

Steering Link Bracket

$17.99

$

In Stock, only 1 left!

0

76

Cub Cadet 931-3020

Hub Cap

$8.99

$

In Stock, Qty 20+

0

77

Cub Cadet 738-1011A

Shoulder Bolt, 3/8-16 x .5 x 2.23

$8.49

$

In Stock, Qty 11

0

78

Cub Cadet 710-0597

Hex Cap Screw, 1/4-20 x 1.0

$3.99

$

In Stock, Qty 14

0
