i1050 (17RF9BKP756) - Cub Cadet 50" Zero-Turn Mower (2007 & Before) Engine Mounting & Connections Parts Diagram

50" Zero-Turn Mower

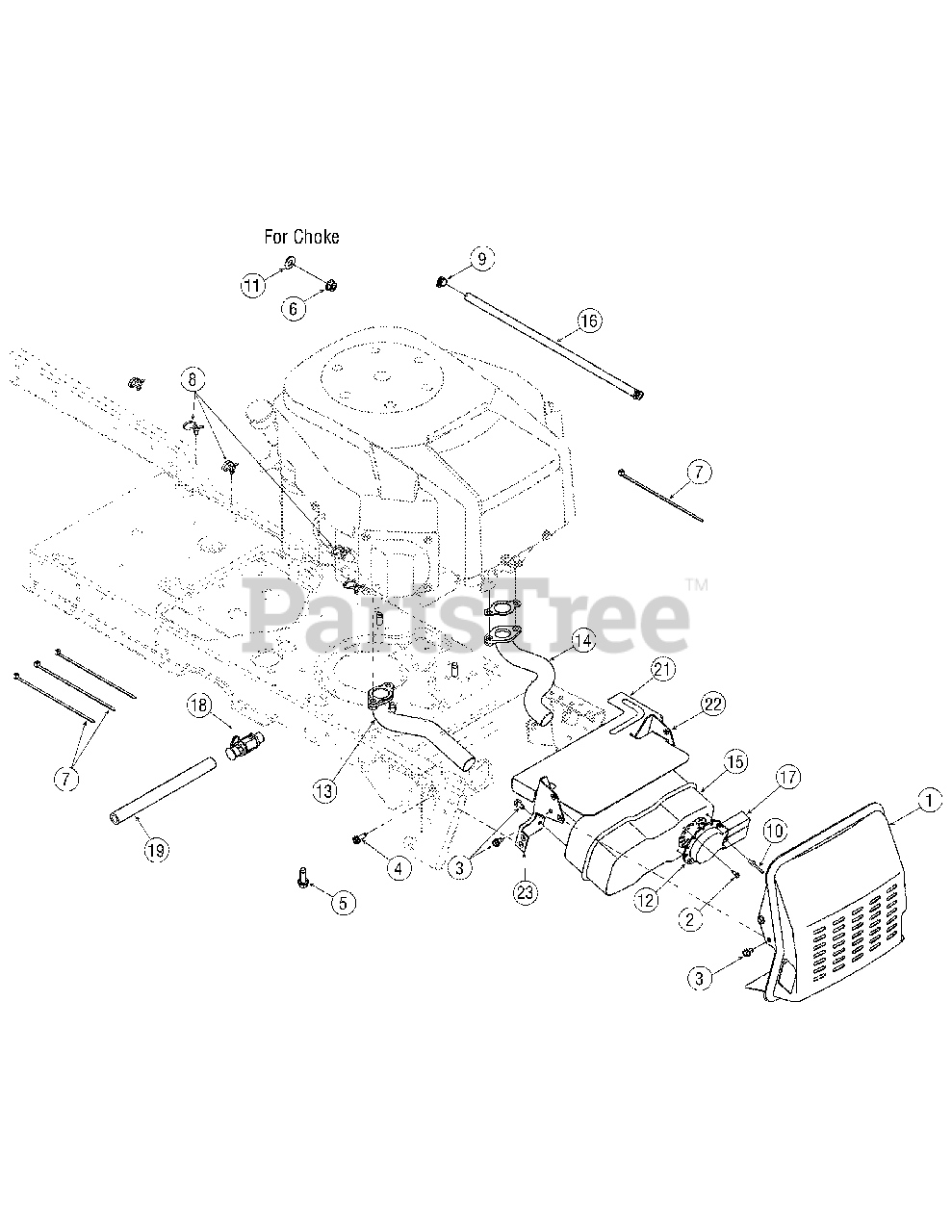

Engine Mounting & Connections Parts Diagram

  • Title
1

Cub Cadet 683-04256

Shield, Muffler
(Superseded to 683-04256-0637)

Variations

Cub Cadet 683-04256-0637

Muffler Shield Assembly - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0227

Screw, Hex Wash Hd. Tapp, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0599

Screw, Hex Wash Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0642

Screw, Hex Wash Hd. Tapp, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0654A

Screw, Hex Sems Tapp, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3005

Nut, Hex Flange Lock, 3/8-16 Gr5

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 726-0154

Tie, Push Mount Cable
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 728-04000

Rivet, Pop, .188 x .3

$6.99

$

In Stock, Qty 7

0

11

Cub Cadet 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 751-0564B

Deflector, Muffler

$13.99

$

In Stock, only 3 left!

0

13

Cub Cadet 751-10006

Pipe, Exhaust RH

$152.99

$

In Stock, only 1 left!

0

14

Cub Cadet 751-10007

Pipe Exhaust LH

$223.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 751-10161

Muffler, Dual Inlet
(Superseded to 951-10161)

$86.99

$

In Stock, only 1 left!

0

16

Cub Cadet 751-10349

Hose, Fuel ; Low Permeation, 51 inches

$9.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 751-10353

Deflector, Muffler
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

18

Cub Cadet 751-10517

Oil Drain
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

19

Cub Cadet 751-3141

Hose, Oil Drain Extension
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

21

Cub Cadet 783-04783A

Shield, Heat

$

$

Not available

22

Cub Cadet 783-04870

Bracket, Muffler LH
(Superseded to 783-04870-0637)

Variations

Cub Cadet 783-04870-0637

Muffler Bracket, LH - POWDER BLACK (0637)

$

$

Not available

$

$

23

Cub Cadet 783-04872

Bracket, Muffler RH
(Superseded to 783-04872-0637)

Variations

Cub Cadet 783-04872-0637

Muffler Bracket, RH - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 737-3030A

Oil, 10W30 Engine
(Superseded to 490-000-C044)

Note: not shown

$10.99

$

In Stock, Qty 20+

0
