i1050 (17AF9BKP710) - Cub Cadet 50" Zero-Turn Mower (2007 & Before) Transmission Drive & Controls Parts Diagram

50" Zero-Turn Mower

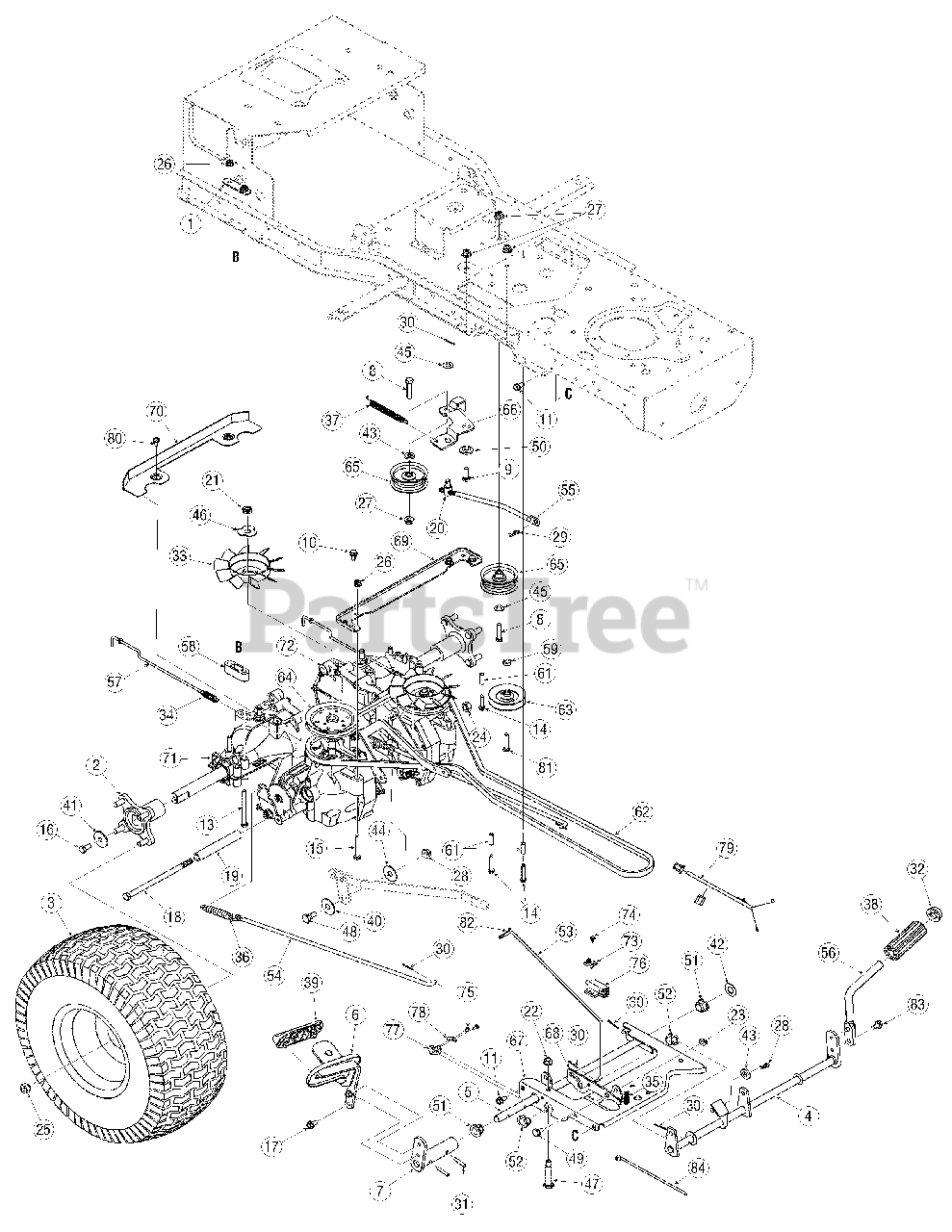

Transmission Drive & Controls Parts Diagram

  • Title

1

Cub Cadet 17840

Bracket, Transmission Mounting
(Superseded to 17840-0637)

Variations

Cub Cadet 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618-04317

Hub, Wheel
(Superseded to 918-04317)

$116.99

$

Usually ships in 3-6 days

0

3

Cub Cadet N/A

Wheel Assembly

Note: order components

$

$

Currently unavailable

3

Cub Cadet 734-1730

Tire, 20 x 8 x 8

Variations

Cub Cadet 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, only 1 left!

0

Cub Cadet 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, only 1 left!

0

Cub Cadet 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

Cub Cadet 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

$99.99

$

In Stock, only 1 left!

0

3

Cub Cadet 634-0246A

Rim Assembly, Rear
(Superseded to 934-0246A)

Variations

Cub Cadet 634-0246A-0499

Rim Assembly, Rear - CUB BEIGE (0499)

$134.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0246A-0662

Rear Rim Assembly, Oyster Grey - OYSTER GRAY (0662)

$134.99

$

In Stock, only 1 left!

0

Cub Cadet 634-0246A-4042

USE 934-0246A-4042 RIM ASM-RE - CRAFTSMAN GRAY (4042)

$134.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 934-0255

Valve, Tubeless Air

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 647-04061

Shaft Assembly, Brake Control

$

$

Not available

5

Cub Cadet 647-04094

Shaft Assembly, Hydro Control Pedal

$

$

Not available

6

Cub Cadet 683-0267C

Pedal Assembly, Hydro Control

$

$

Not available

7

Cub Cadet 683-04314A

Bracket, Pedal
(Superseded to 683-04314B-0637)

Variations

Cub Cadet 683-04314A-0637

USE 683-04314B-0637 BRACKET A - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 Gr5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0607

Screw, Hex Wash Hd. Tapp, 5/16-18 x .5

$6.99

$

In Stock, Qty 12

0

11

Cub Cadet 710-0726

Screw, Hex Wash Hd. Tapp, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-1266

Screw, Hex Cap, 5/16-18 x 3.5 Gr5

$9.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-1325

Screw, Hex Wash Hd. Tapp, 1/4-20 x 1.625

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-3073

Screw, Hex Cap, 5/16-18 x 2.25 Gr5
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

16

Cub Cadet 710-3119

Screw, Hex Cap Lock, 3/8-16 x .75 Gr5

$6.99

$

In Stock, only 1 left!

0

17

Cub Cadet 710-04484

Screw, Hex Wash Hd. Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-04648

Screw, Hex Cap, 7/16-14 x 8.5 Gr5

$7.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 711-04554

Spacer, .479 x .75 x 4.97

$

$

Not available

20

Cub Cadet 711-0832

Ferrule, 3/8-24 x .375 Dia.
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

21

Cub Cadet 712-0346

Nut, Hex Jam Insert Lock, 1/2-20 Gr5

$4.99

$

In Stock, Qty 9

0

22

Cub Cadet 712-0431

Nut, Hex Flange Top Lock, 3/8-16 GrF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 Gr5

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-0290

Nut, Hex Lock, 7/16-14 GrA

$4.99

$

In Stock, Qty 11

0

25

Cub Cadet 712-3050

Nut, Lug, 7/16-14

$9.99

$

In Stock, Qty 6

0

26

Cub Cadet 712-04063

Nut, Hex Flange Insert Lock, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-04065

Nut, Hex Flange Insert Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-0375

Nut, Hex Lock, 3/8-16

$4.49

$

In Stock, Qty 6

0

29

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 714-0111

Pin, Cotter, 3/32 x 1/0

$4.99

$

In Stock, Qty 13

0

31

Cub Cadet 715-0143

Pin, Spirol, .25 x 1.25

$4.99

$

In Stock, Qty 15

0

32

Cub Cadet 726-0214

Cap, Push, 5/8

$10.99

$

In Stock, only 3 left!

0

33

Cub Cadet 731-05846

Fan, Hydro

$23.99

$

In Stock, only 1 left!

0

34

Cub Cadet 732-0209

Spring, Extension, .48 x 2.03
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

35

Cub Cadet 732-0335

Spring, Compression, .405 x 1.17

$

$

Not available

36

Cub Cadet 732-0716C

Spring, Extension, .59 x 4.0
(Superseded to 732-0716D)

$13.99

$

In Stock, only 2 left!

0

37

Cub Cadet 732-0814

Spring, Extension, .56 x 5.52

$7.99

$

In Stock, only 4 left!

0

38

Cub Cadet 735-0239

Pad, Foot, 4.0 in. Lg
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

39

Cub Cadet 735-0662

Pad, Hydro Control Pedal

$11.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 736-3027

Washer, Flat, .531 x 1.75 x .09

$

$

Not available

41

Cub Cadet 736-0227

Washer, Flat, .39 x 1.5 x .134

$6.49

$

In Stock, Qty 13

0

42

Cub Cadet 736-0290

Washer, Flat, .625 x 1.0 x .067 HT

$6.99

$

In Stock, only 3 left!

0

43

Cub Cadet 736-3010

Washer, Flat, .407 x .812 x .135 HT

$4.99

$

In Stock, only 2 left!

0

44

Cub Cadet 736-3039

Washer, Flat, .406 x 1.5 x .105

$5.49

$

In Stock, Qty 8

0

45

Cub Cadet 736-3050

Washer, Flat, .406 x .812 x .051

$4.49

$

In Stock, Qty 16

0

46

Cub Cadet 736-04263

Washer, Hydro Lock

$6.99

$

In Stock, only 4 left!

0

47

Cub Cadet 738-0129

Bolt, Shoulder, 3/8-16: .5 x 2.0

$11.99

$

In Stock, only 1 left!

0

48

Cub Cadet 738-0143

Bolt, Shoulder, .496 x .336: 3/8-16

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 738-0155

Bolt, Shoulder, .435 x .160 : 5/16-18
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 738-0347

Spacer, Shoulder, .625 ID x .169
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

52

Cub Cadet 741-3065B

Bearing, Hex Flange, .625 ID Split

$8.49

$

In Stock, Qty 11

0

53

Cub Cadet 747-04562

Rod, Park Brake
(Superseded to 747-04562A)

$16.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 747-04584A

Rod, Brake

$26.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 747-04598A

Rod, Drive Engage

$

$

Not available

56

Cub Cadet 747-04629

Bracket, Brake Pedal
(Superseded to 747-04629-0637)

Variations

Cub Cadet 747-04629-0637

BRACKET-PEDAL:BRAKE - POWDER BLACK (0637)

$

$

Not available

$

$

57

Cub Cadet 747-04649A

Rod, Hydro Dump

$15.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 748-04155

Spacer, T-Axle

$7.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 750-04776

Spacer, .38 x .625 x .265

$5.49

$

In Stock, only 2 left!

0

61

Cub Cadet 750-04456

Spacer, .26 x .372 x 1.42

$7.49

$

In Stock, only 4 left!

0

62

Cub Cadet 754-04134

V-Belt, 88.4
(Superseded to 954-04134)

$43.99

$

In Stock, only 2 left!

0

63

Cub Cadet 756-04209

Pulley, V Type Drive, 3.06

$22.99

$

In Stock, Qty 20+

0

64

Cub Cadet 756-04274

Pulley, V Type, 4.5

$63.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 756-0981B

Pulley, Flat Idler, 2.75
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

66

Cub Cadet 783-04570A

Arm, Idler
(Superseded to 783-04570B-0637)

Variations

Cub Cadet 783-04570A-0637

Idler Arm, Lt-5 Hyd - POWDER BLACK (0637)

$19.99

$

In Stock, Qty 5

0

$19.99

$

In Stock, Qty 5

0

67

Cub Cadet 783-04881A

Bracket, Foot Pedal Support
(Superseded to 783-04881A-0637)

Variations

Cub Cadet 783-04881A-0637

BRACKET-SUPPORT:FO - POWDER BLACK (0637)

$

$

Not available

$

$

68

Cub Cadet 783-04981

Bracket, Park Brake

$49.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 783-05330A

Bracket, Support
(Superseded to 783-05330A-0637)

Variations

Cub Cadet 783-05330A-0637

Support Bracket, SS - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 783-05473

Bracket, Belt Keeper
(Superseded to 783-05473-0637)

Note: Mounts & secured to top of trans.

Variations

Cub Cadet 783-05473-0637

BRACKET-BELT KEEPE - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 783-05332

Bracket, Belt Keeper
(Superseded to 783-05332-0637)

Note: Mounts to the top but secured by trans. side cover bolts.

Variations

Cub Cadet 783-05332-0637

BRACKET-BELT KEEPER - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 918-04339A

Transmission, Hydro RH

$1830.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 918-04342A

Transmission, Hydro LH

$1830.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 17962

Plate, Switch

$4.99

$

In Stock, only 3 left!

0

74

Cub Cadet 710-0224

Screw, Hex Wash Hd. Tapp, #10-16 x .5
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

75

Cub Cadet 710-0227

Screw, Hex Wash Hd. Tapp, #8-18 x .5

$4.49

$

In Stock, Qty 15

0

76

Cub Cadet 725-04039

Switch, Brake
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

77

Cub Cadet 725-1644

Switch, Reverse

$9.99

$

In Stock, only 1 left!

0

78

Cub Cadet 726-0320

Plate, Insulator Nut
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 9

0

79

Cub Cadet 725-04374

Harness, Reverse Jumper

$20.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

81

Cub Cadet 710-3144

Screw, Hex Head Cap, 3/8-16 x 2

$4.49

$

In Stock, Qty 7

0

82

Cub Cadet 714-04040

Cotter Pin, Bow Tie

$1.49

$

In Stock, Qty 20+

0

83

Cub Cadet 710-1611B

Screw, TT, 5/16-18 x .750

$6.99

$

In Stock, only 2 left!

0

84

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0
