i1050 (17AF9BKP010) - Cub Cadet 50" Zero-Turn Mower (2008 - 2010) Flywheel Electrical Parts Diagram

50" Zero-Turn Mower

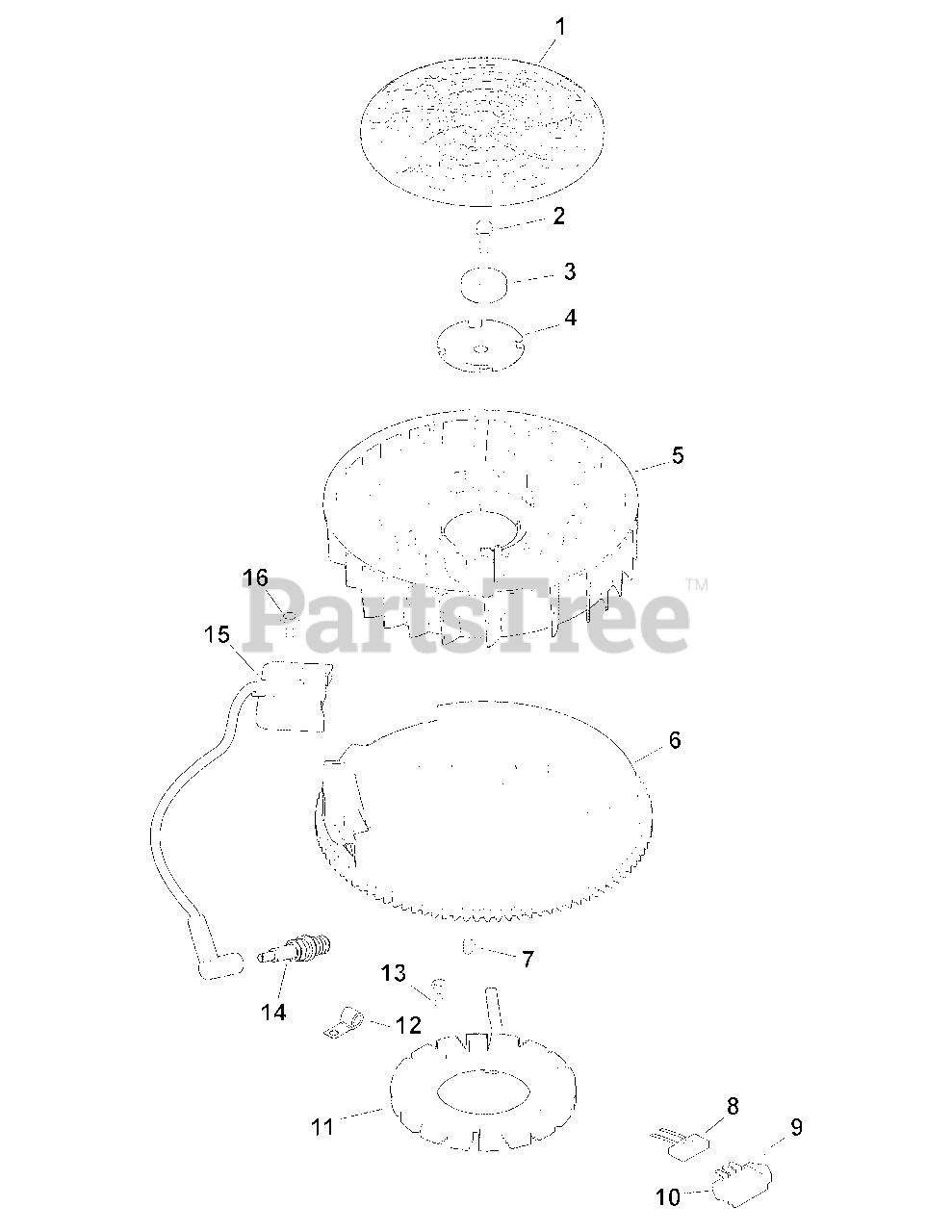

Flywheel Electrical Parts Diagram

  • Title

1

Cub Cadet KH-32-162-03-S

Screen, Grass

$5.49

$

In Stock, Qty 7

0

2

Cub Cadet KH-12-086-14

Screw, Flange, M10 x 1.5 x 45
(Superseded to KH-25-086-361-S)

$3.99

$

In Stock, Qty 12

0

3

Cub Cadet KH-12-468-03

Washer, Flat 13/32

$

$

Not available

4

Cub Cadet KH-20-146-02-S

Plate, Fan Mounting
(Superseded to KH-20-146-05-S)

$2.99

$

In Stock, Qty 11

0

5

Cub Cadet KH-32-157-01-S

Fan
(Superseded to KH-32-755-38-S)

$21.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-32-025-08-S

Flywheel
(Superseded to KH-32-025-22-S)

$347.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-X-42-15

Key, 3/16 x 5/8

$

$

Not available

8

Cub Cadet KH-236602-S

Connector (3 Contact)
(Superseded to KH-25-155-41-S)

$24.99

$

In Stock, only 1 left!

0

9

Cub Cadet KH-M-551016-S

Screw, Flange, M5 x 0.8 x 16

$2.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-41-403-09

Rectifier-Regulator
(Superseded to KH-25-403-37-S)

$

$

Not available

11

Cub Cadet KH-237878

Kit, 15 Amp Stator

$149.99

$

In Stock, Qty 8

0

12

Cub Cadet KH-235173

Clip, Cable

$

$

Not available

13

Cub Cadet KH-M-548025-S

Screw, Thrd. Frmng M5 x 0.8x 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

14

Cub Cadet 759-3336

Plug, Spark
(Superseded to RC12YC)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet KH-24-584-45-S

Module, Ignition
(Superseded to KH-24-584-201-S)

$110.99

$

Usually ships in 3-6 days

0

16

Cub Cadet KH-M-545020-S

Screw, Flnge Thrd. Frmng M5 x 0.8x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 20+

0

Cub Cadet KH-25-454-03-S

Tie, Wire

Note: Not Illustrated

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-32-176-02-S

Harness, Wiring
(Superseded to KH-32-176-14-S)

Note: Not Illustrated

$

$

Not available
