i1050 (17AF9BKP009) - Cub Cadet 50" Zero-Turn Mower (2008 - 2010) Steering Gear Box Assembly Parts Diagram

50" Zero-Turn Mower

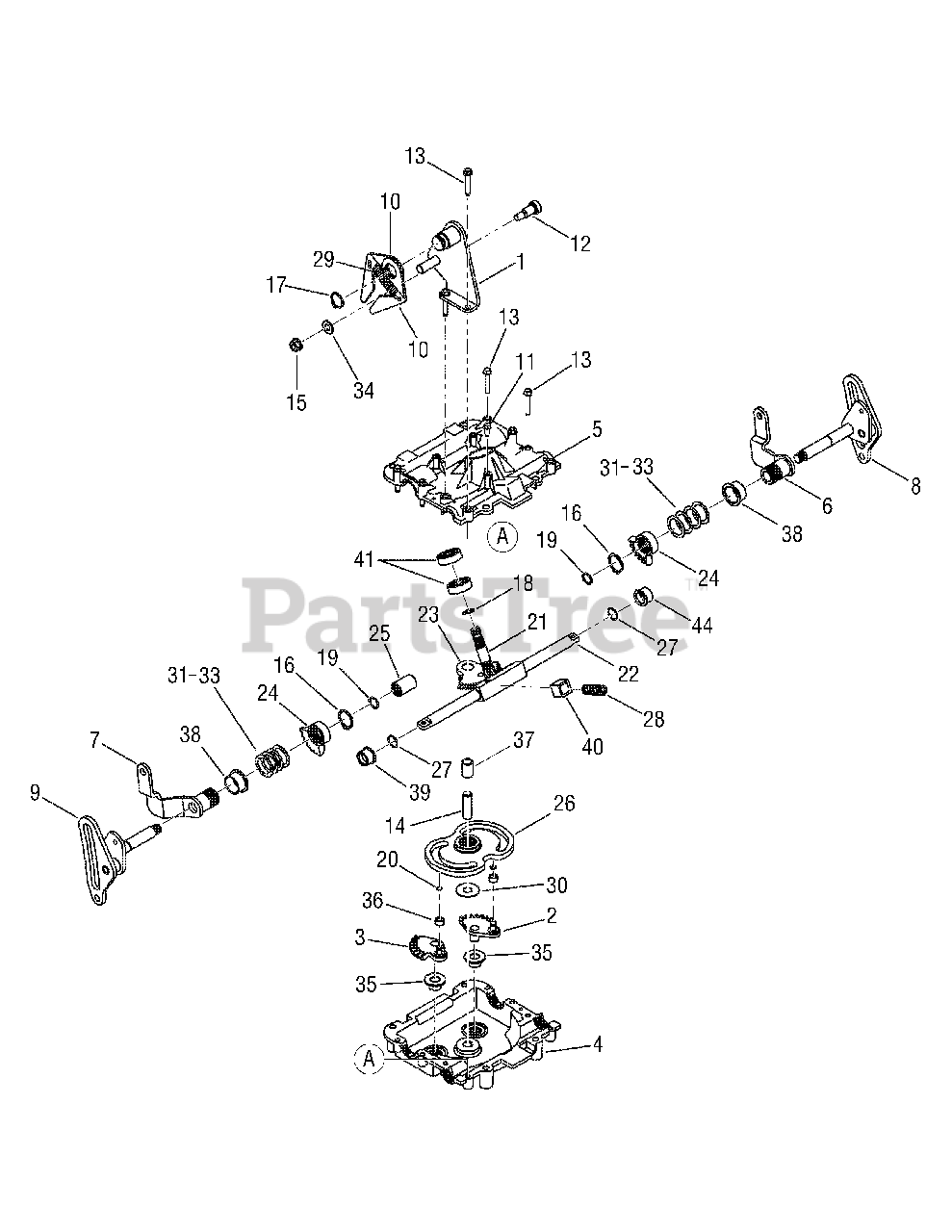

Steering Gear Box Assembly Parts Diagram

  • Title

1

Cub Cadet 607-04243

Bracket, Steering Box Return

$

$

Not available

2

Cub Cadet 617-04036

Gear, Bevel LH
(Superseded to 759-04277)

$

$

Not available

3

Cub Cadet 617-04037

Gear, Bevel RH
(Superseded to 759-04277)

$

$

Not available

4

Cub Cadet 619-04153

Housing, Steering Lower
(Superseded to 919-04153)

$102.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 737-0148

Grease, Darina
(Superseded to 737-0300A)

Note: Not shown

$34.99

$

In Stock, Qty 20+

0

5

Cub Cadet 619-04206

Housing, Steering Upper
(Superseded to 919-04206)

$

$

Not available

6

Cub Cadet 647-04083

Arm, Hydro LH

$65.99

$

In Stock, only 1 left!

0

7

Cub Cadet 647-04084

Arm, Hydro RH

$49.99

$

In Stock, only 2 left!

0

8

Cub Cadet 647-04085

Cam, Hydro LH
(Superseded to 759-04284)

$134.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 647-04086

Cam, Hydro RH
(Superseded to 759-04284)

$134.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-2441

Arm, Neutral

$7.49

$

In Stock, only 2 left!

0

11

Cub Cadet 710-0642

Screw, Hex Wash Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-04040

Screw, Shoulder, .497 x .75 : 3/8-16

$15.99

$

In Stock, only 1 left!

0

13

Cub Cadet 710-0778

Screw, Hex Wash Hd. Tapp, 1/4-20 x 1.5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 711-04587

Shaft, Steering
(Superseded to 911-04587A)

$8.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-3005

Nut, Hex Flange Lock, 3/8-16 Gr5

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 716-0102

Ring, Snap, 1.0 Dia. Shaft

$5.49

$

In Stock, Qty 20+

0

17

Cub Cadet 716-0111

Ring, External Retaining, .875 Shaft

$6.99

$

In Stock, only 4 left!

0

18

Cub Cadet 716-0114

Ring, Retaining, .56 Dia. Shaft
(Superseded to 916-0114)

$6.99

$

In Stock, only 2 left!

0

19

Cub Cadet 716-0115

Ring, Retaining, .56 Dia. Shaft
(Superseded to 916-0115)

$

$

Not available

20

Cub Cadet 716-04066

Ring, Retaining, .31125 Dia. Shaft

$

$

Not available

21

Cub Cadet 717-04318

Gear, Pinion, 7T

$80.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 717-04319

Gear, Synchro Rack

$79.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 717-04328

Gear, Steering, 17T
(Superseded to 917-04328)

$67.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 717-04330

Gear, Steering, 26T
(Superseded to 917-04330)

$20.99

$

In Stock, only 2 left!

0

25

Cub Cadet 718-04229

Tube, Coupler
(Superseded to 759-04284)

$134.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 718-04269

Cam, Hydro Steering
(Superseded to 759-04277)

$

$

Not available

27

Cub Cadet 721-04186

O-Ring, .625 x .07

$7.99

$

In Stock, only 2 left!

0

28

Cub Cadet 732-04523

Spring, Compression, .531 x 1.25

$

$

Not available

29

Cub Cadet 732-1162

Spring, Extension, .56 x 2.31 x .105

$8.99

$

In Stock, only 3 left!

0

30

Cub Cadet 736-04237

Washer, Flat, .508 x 1.32 x .04

$3.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-04257

Washer, Flat, 1.015 x 1.375 x .005

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-04258

Washer, Flat, 1.015 x 1.375 x .010

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 736-04259

Washer, Flat, 1.015 x 1.375 x .015

$6.99

$

In Stock, Qty 5

0

34

Cub Cadet 736-0864

Washer, Thrust, .375 x .812 x .06

$4.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 741-04203

Bearing, Flange, .5 x .7

$6.99

$

In Stock, only 3 left!

0

36

Cub Cadet 741-04204

Bearing, Sleeve, .437 x .3425

$19.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 741-04206

Bearing, Sleeve, .623 x .5025 x .25
(Superseded to 741-04206A)

$3.99

$

In Stock, only 1 left!

0

38

Cub Cadet 741-04231

Bearing, Sleeve, 1.2 x 1.0

$11.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 741-04235

Bearing, Flange, .625 x .875

$20.99

$

In Stock, only 2 left!

0

40

Cub Cadet 741-04257

Bearing, Caster Rack

$5.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 741-0747

Bearing, Ball, .5625 x 1.375 x .4375

$18.99

$

In Stock, only 2 left!

0
