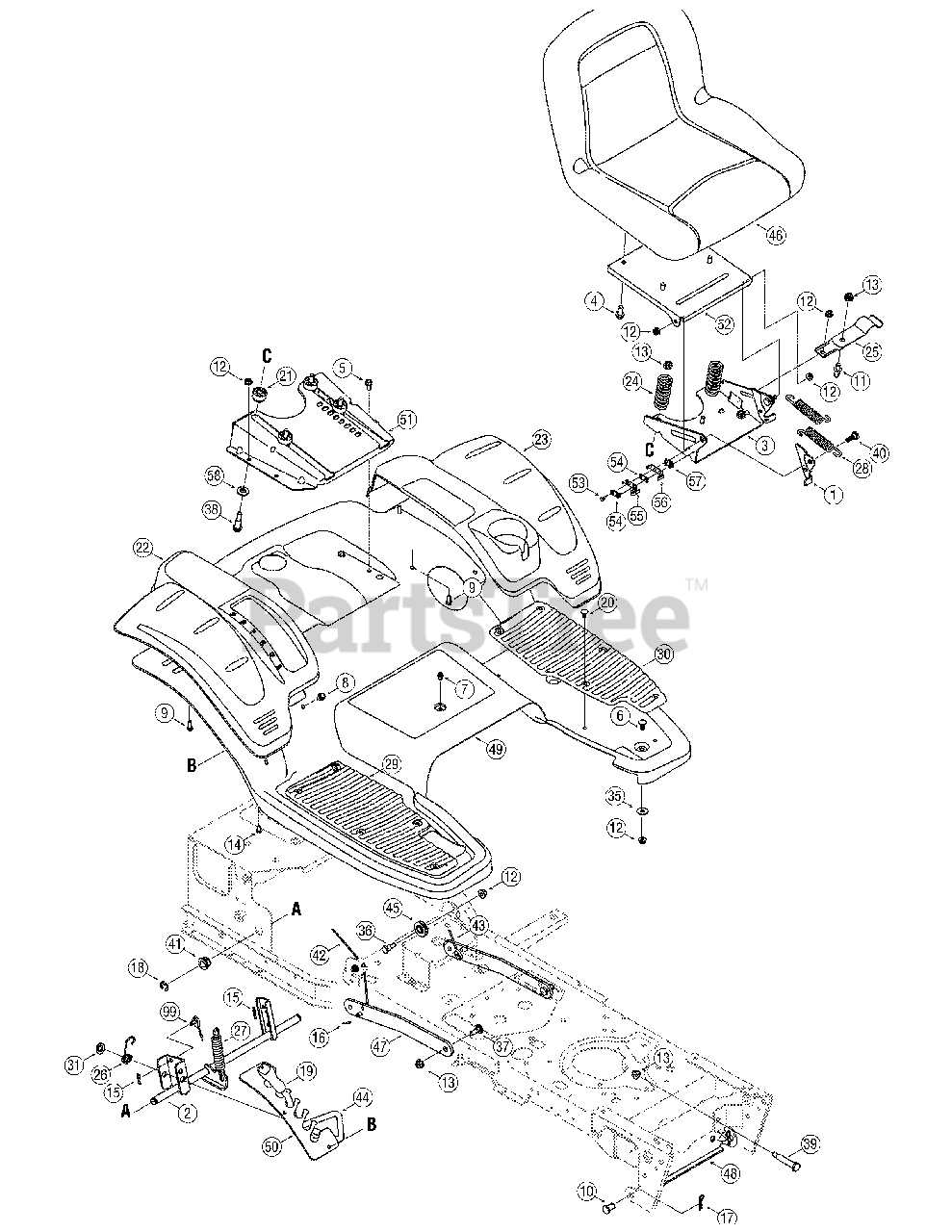

i1046 (17RF9BKH756) - Cub Cadet 46" Zero-Turn Mower (2007 & Before) Seat Fender & Deck Lift Parts Diagram

46" Zero-Turn Mower

Seat Fender & Deck Lift Parts Diagram

  • Title

1

Cub Cadet 783-05515

Bracket, RH Seat Lift

$

$

Not available

2

Cub Cadet 647-04095A

Shaft, Lift
(Superseded to 647-04095A-0637)

Variations

Cub Cadet 647-04095A-0637

SHAFT ASM-LIFT DECK - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

$80.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 683-04313A

Seat Slide
(Superseded to 683-04313A-0637)

Variations

Cub Cadet 683-04313A-0637

SEAT ASM-PIVOT - POWDER BLACK (0637)

$39.99

$

In Stock, only 1 left!

0

$39.99

$

In Stock, only 1 left!

0

4

Cub Cadet 710-04482

Screw, Hex Flange, 3/8-16 x .875 Gr5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-04484

Screw, TT 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0451

Screw, Carriage, 5/16-18 x 75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0599

Screw, Hex Wash Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0726

Screw, Hex Wash Hd. Tapp, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0895

Screw, Hex Wash Hd. Tapp, 1/4-15 x .75

$6.49

$

In Stock, Qty 9

0

10

Cub Cadet 711-0332

Pin, Clevis, .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 12

0

11

Cub Cadet 711-04626

Pin, Seat Index

$

$

Not available

12

Cub Cadet 712-04063

Nut, Hex Flange Insert Lock, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04065

Nut, Hex Flange Insert Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-04187

Screw, Hex Wash Hd. H/L, 1/4-15 x .5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

15

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0111

Pin, Cotter, 3/32 x 1.0

$4.99

$

In Stock, Qty 13

0

17

Cub Cadet 714-04023

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 716-0106A

E-ring, .625 Shaft

$5.49

$

In Stock, only 2 left!

0

19

Cub Cadet 720-0311

Grip, Handle

$15.99

$

In Stock, only 1 left!

0

20

Cub Cadet 726-3046

Clip, Ratchet

$3.99

$

In Stock, only 4 left!

0

21

Cub Cadet 731-04074

Spacer, Seat Adjustment

$7.49

$

In Stock, Qty 20+

0

22

Cub Cadet 731-05477

Cover, Rear Fender RH

$78.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 731-05518

Cover, Rear Fender LH

$

$

Not available

24

Cub Cadet 732-04035

Spring, Compression

$10.99

$

In Stock, only 1 left!

0

25

Cub Cadet 732-04386

Spring, Seat Adjust

$

$

Not available

26

Cub Cadet 732-04459

Spring, Lift Torsion

$

$

Not available

27

Cub Cadet 732-0826A

Spring, Extension, .865 x 4.68

$11.99

$

In Stock, Qty 20+

0

28

Cub Cadet 732-1184

Spring, Extension, .84 x 4.6

$11.99

$

In Stock, only 1 left!

0

29

Cub Cadet 735-04078

Pad, Foot RH
(Superseded to 735-04078A)

$

$

Not available

30

Cub Cadet 735-04079

Pad, Foot LH

$

$

Not available

31

Cub Cadet 726-0221

Nut, Speed, .5

$6.49

$

In Stock, only 2 left!

0

32

Cub Cadet 736-0272

Washer, Flat, .51 x 1.0 x .06

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0192

Washer, Flat, .535 x .93 x .09

$4.49

$

In Stock, Qty 16

0

35

Cub Cadet 736-3078

Washer, Flat, .344 x 1.0 x .063 HT

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 738-0138A

Bolt, Shoulder, .496 x 2.5:3/8-16

$6.99

$

In Stock, only 2 left!

0

37

Cub Cadet 738-0380

Bolt, Shoulder, .5 x .27:3/8-16

$7.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 738-0966A

Bolt, Shoulder, .5 x .925:3/8-16

$4.99

$

In Stock, Qty 19

0

39

Cub Cadet 738-1011A

Bolt, Shoulder, .5 x 2.23:3/8-16

$8.49

$

In Stock, Qty 11

0

40

Cub Cadet 738-0296

Bolt, Shoulder, .447 x .268:5/16-18

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 741-0225

Bearing, Hex Flange,
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

42

Cub Cadet 746-04369

Cable, Lift, 16.16 Lg

$39.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 746-0968

Cable, Lift, 16.16 Lg

$19.99

$

In Stock, Qty 20+

0

44

Cub Cadet 747-04701

Handle, Lift

$

$

Not available

45

Cub Cadet 756-1154

Pulley, Roller

$7.99

$

In Stock, only 2 left!

0

46

Cub Cadet 757-04053

Seat, High Back
(Superseded to 757-04053A)

$313.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 783-05546

Link, Deck Lift
(Superseded to 783-05546A-0637)

Variations

Cub Cadet 783-05546-0637

Lift Link - POWDER BLACK (0637)

$20.99

$

In Stock, only 2 left!

0

$20.99

$

In Stock, only 2 left!

0

48

Cub Cadet 783-0720C

Bracket, Front Deck Adjust

Variations

Cub Cadet 783-0720C-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

Cub Cadet 783-0720C-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 783-04901

Fender, Rear
(Superseded to 783-04901-0691)

Variations

Cub Cadet 783-04901-0691

FENDER-SYNCHRO STE - BLACK JACK (0691)

$

$

Not available

$

$

50

Cub Cadet 783-04977A

Plate, Deck Lift
(Superseded to 783-04977A-0637)

Variations

Cub Cadet 783-04977A-0637

PLATE-LIFT:DECK - POWDER BLACK (0637)

$

$

Not available

$

$

51

Cub Cadet 783-05307

Pedesta, Seat
(Superseded to 783-05307-0637)

Variations

Cub Cadet 783-05307-0637

SEAT-PDSTL - POWDER BLACK (0637)

$

$

Not available

$

$

52

Cub Cadet 783-05272A

Plate, Seat Pivot
(Superseded to 783-05272A-0637)

Variations

Cub Cadet 783-05272A-0637

PLATE-SEAT PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

53

Cub Cadet 710-0227

Screw, Hex Wash Hd. Tapp, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 726-0279

Plate, Insulator

$3.99

$

In Stock, Qty 8

0

55

Cub Cadet 725-1303

Switch, Outer Seat Spring
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

56

Cub Cadet 725-1439

Switch, Inner Seat Spring

$8.49

$

In Stock, Qty 10

0

57

Cub Cadet 726-0278

Plate, Insulator Boss

$6.99

$

In Stock, Qty 10

0

58

Cub Cadet 736-0326

Washer, Flat, .510 x 1 x .125

$4.49

$

In Stock, only 2 left!

0
