i1046 (17AF9BKH056) - Cub Cadet 46" Zero-Turn Mower (2008 & After) Kohler SV600-0217 Ignition & Electrical Parts Diagram

46" Zero-Turn Mower

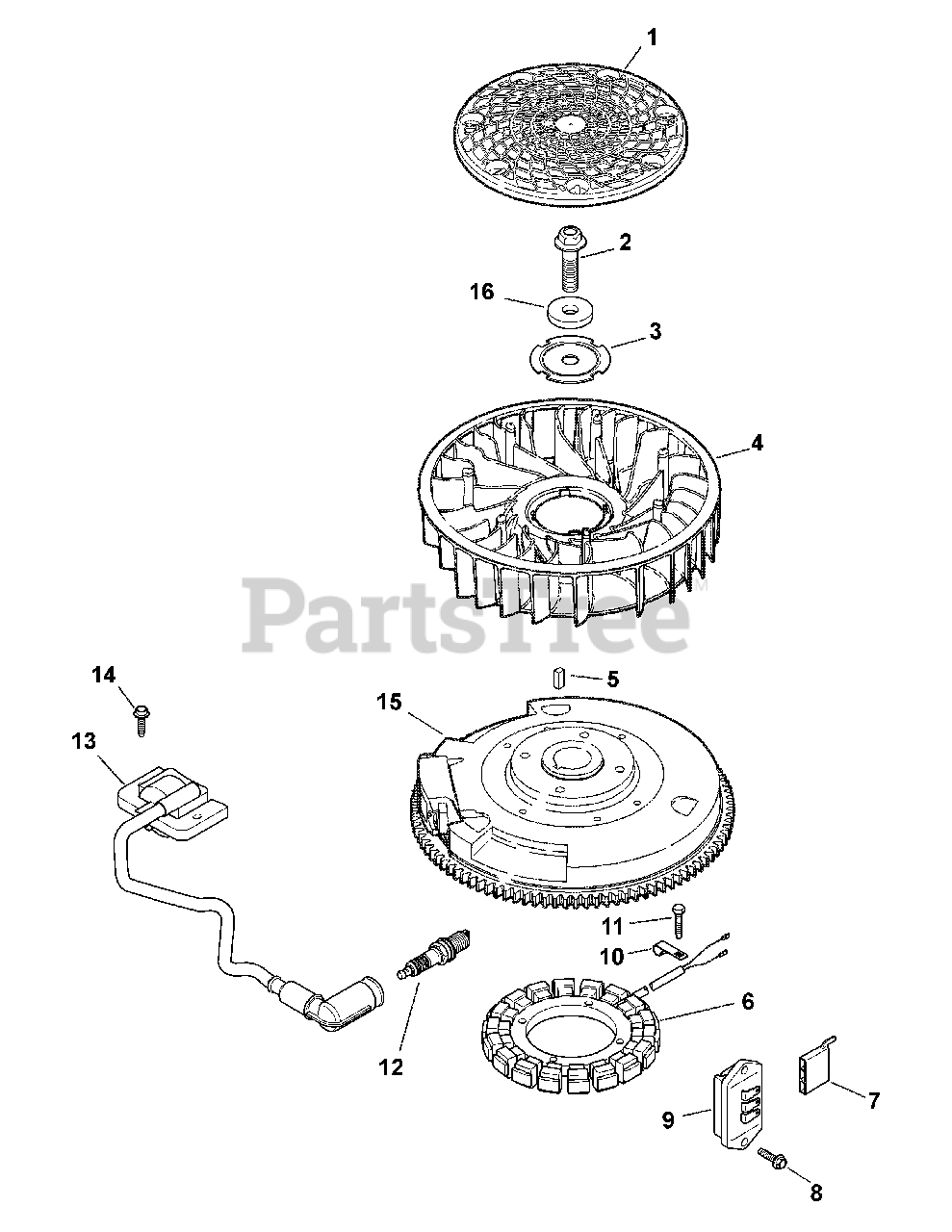

Kohler SV600-0217 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-20-162-02-S

Screen, Grass

$7.99

$

In Stock, Qty 5

0

2

Cub Cadet KH-25-086-125-S

Screw, Hex Flange
(Superseded to KH-25-086-362-S)

$3.99

$

In Stock, Qty 7

0

3

Cub Cadet KH-20-146-05-S

Plate, Fan Mounting

$2.99

$

In Stock, Qty 11

0

4

Cub Cadet KH-20-157-01-S

Fan

$24.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-25-340-02-S

Key, Straight Flywheel
(Superseded to KH-25-340-04-S)

$3.99

$

In Stock, Qty 10

0

6

Cub Cadet KH-237878

Kit, 15 Amp Stator

Note: (Incl. KH-25-452-01-S - Not Shown)

$149.99

$

In Stock, Qty 15

0

7

Cub Cadet KH-25-155-41-S

Connect0R

$24.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-M-545020-S

Screw, Flg Thd Frm M5X.8X20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

9

Cub Cadet KH-41-403-10-S

Regulator/Rectifier
(Superseded to KH-25-403-37-S)

$

$

Not available

10

Cub Cadet KH-20-154-04-S

Clip, Wire

$2.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-M-548025-S

Screw, Thd Frm M5X0.8X25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

12

Cub Cadet 759-3336

Plug, Spark (Std)
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

13

Cub Cadet KH-20-584-03-S

Module, Ignition (Cdi Fixed)

$32.99

$

In Stock, only 3 left!

0

14

Cub Cadet KH-M-545020-S

Screw, Flg Thd Frm M5X.8X20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

15

Cub Cadet KH-20-025-40-S

Flywheel
(Superseded to KH-20-025-44-S)

$251.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-25-468-09-S

Washer, Flat

$6.49

$

In Stock, only 2 left!

0

Cub Cadet KH-20-176-16-S

Harness, Wiring
(Superseded to KH-20-176-22-S)

Note: Not Shown

$26.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-452-01-S

Terminal

Note: Not Shown

$5.49

$

In Stock, only 1 left!

0

Cub Cadet KH-25-454-05-S

Tie

Note: Not Shown

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-20-237-01-S

Clamp, Cable

Note: Not Shown

$

$

Not available
