i1046 (17AF9BKH056) - Cub Cadet 46" Zero-Turn Mower (2008 & After) Kohler SV600-0009 Ignition & Electrical Parts Diagram

46" Zero-Turn Mower

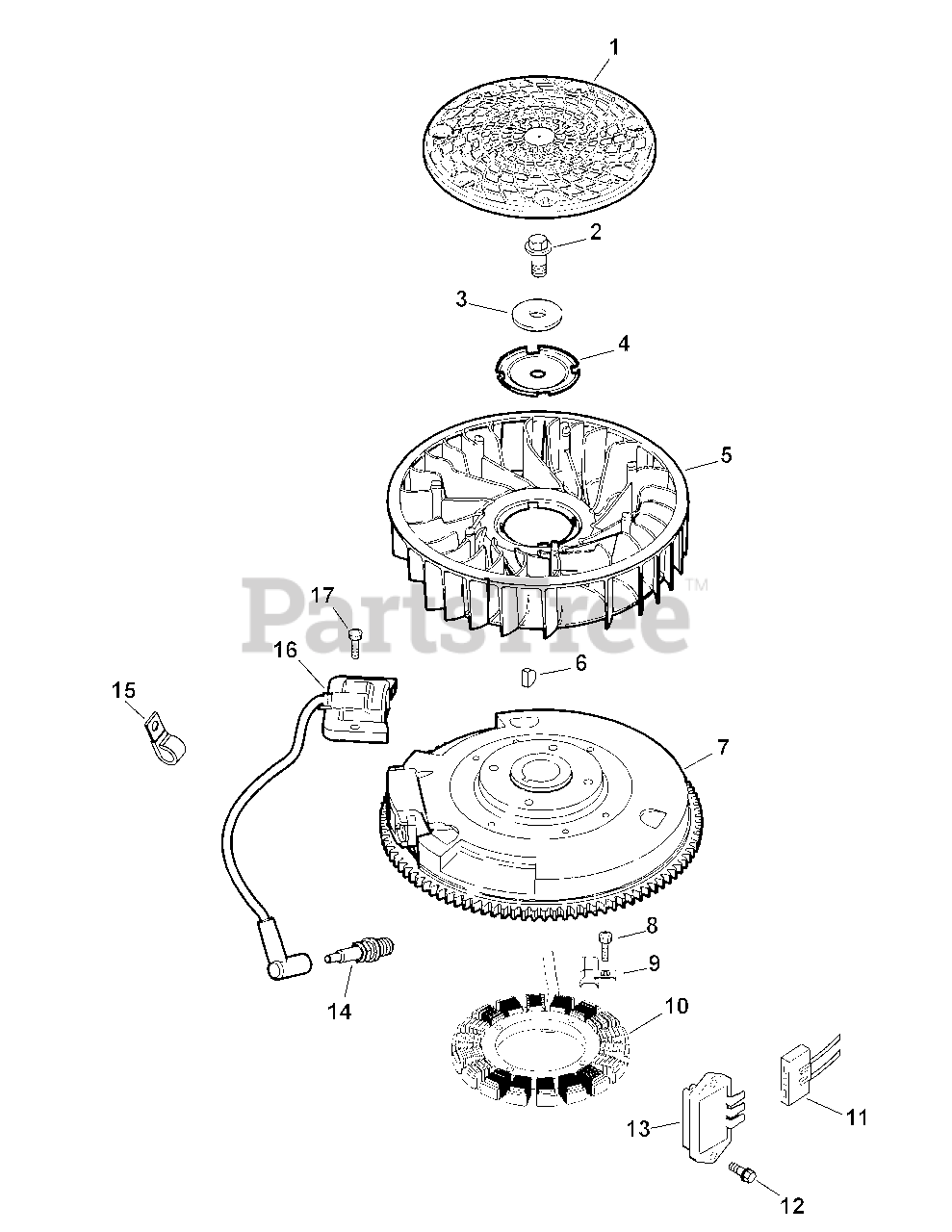

Kohler SV600-0009 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-20-162-02-S

Grass Screen

$7.99

$

In Stock, Qty 5

0

2

Cub Cadet KH-12-086-14

Hex Flange Screw, M10 x 1.5 x 45
(Superseded to KH-25-086-361-S)

$3.99

$

In Stock, Qty 12

0

3

Cub Cadet KH-12-468-03

Flat Washer, 13/32

$

$

Not available

4

Cub Cadet KH-20-146-05-S

Fan Mounting Plate

$2.99

$

In Stock, Qty 11

0

5

Cub Cadet KH-20-157-01-S

Fan

$24.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-X-42-15

Woodruff Key

$

$

Not available

7

Cub Cadet KH-20-025-40-S

Flywheel
(Superseded to KH-20-025-44-S)

$251.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-20-086-17-S

Hex Socket Screw, M5 x 0.8 x 25

$

$

Not available

9

Cub Cadet KH-20-154-03-S

Stator Wire Clip

$2.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-237878

Stator Kit

$149.99

$

In Stock, Qty 7

0

11

Cub Cadet KH-25-155-41-S

Body Connector (3 Contact)

$24.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-M-545020-S

Hex Flange Screw, M5 x 0.8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 20+

0

13

Cub Cadet KH-41-403-09

Regulator Rectifier
(Superseded to KH-25-403-37-S)

$

$

Not available

14

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet KH-231285-S

Cable Clip

$7.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-20-584-03-S

Ignition Module

$32.99

$

In Stock, only 3 left!

0

17

Cub Cadet KH-M-561025-S

Hex Socket Screw, M5 x 0.8 x 25

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-20-176-02-S

Wiring Harness

Note: Not Shown

$

$

Not available

Cub Cadet KH-20-237-01-S

Wire Harness Clamp

Note: Not Shown

$

$

Not available
