i1046 (17AF9BKH056) - Cub Cadet 46" Zero-Turn Mower (2008 & After) Kohler SV600-0009 Engine Mounting & Connections Parts Diagram

46" Zero-Turn Mower

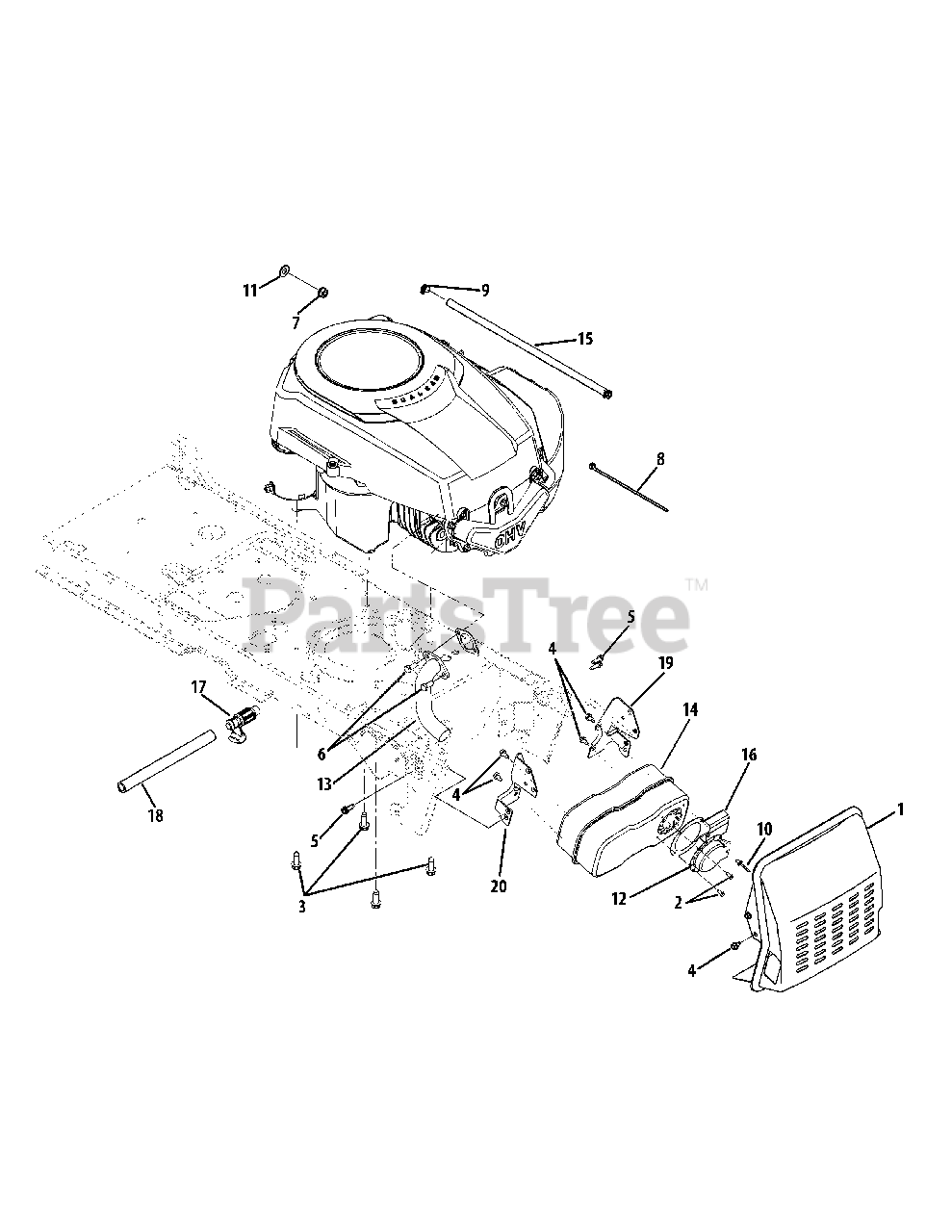

Kohler SV600-0009 Engine Mounting & Connections Parts Diagram

  • Title

1

Cub Cadet 683-04256-0637

Muffler Shield

$58.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0227

Hex Washer Screw, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04683

Hex Screw, 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

4

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1652

Hex Washer Screw, 1/2-20 x .625

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 912-3005

Hex Lock Nut, 3/8-16
(Superseded to 712-3005)

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 728-04000

Pop Rivet, .188 x .3

$6.99

$

In Stock, Qty 7

0

11

Cub Cadet 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 751-0564B

Muffler Deflector

$13.99

$

In Stock, only 3 left!

0

13

Cub Cadet 751-10017

Pipe Exhaust

$84.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 751-10162

Single Inlet Muffler
(Superseded to 951-10162)

$84.99

$

In Stock, Qty 5

0

15

Cub Cadet 751-10349-28

Fuel Hose

$41.99

$

In Stock, only 1 left!

0

16

Cub Cadet 751-10353

Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

17

Cub Cadet 951-10517

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 751-3141-14

Oil Drain Extension Hose

$11.99

$

In Stock, Qty 7

0

19

Cub Cadet 783-04870-0637

LH Muffler Bracket

$

$

Not available

20

Cub Cadet 783-04872-0637

RH Muffler Bracket

$

$

Not available

NS

Cub Cadet 926-0154

Fuel Line Cable Tie, 7.5

$6.49

$

Usually ships in 3-6 days

0
