i1046 (17AE9BKH010) - Cub Cadet 46" Zero-Turn Mower (2008 & After) Kohler SV710-0019 Crankcase Crankshaft & Dipstick Parts Diagram

46" Zero-Turn Mower

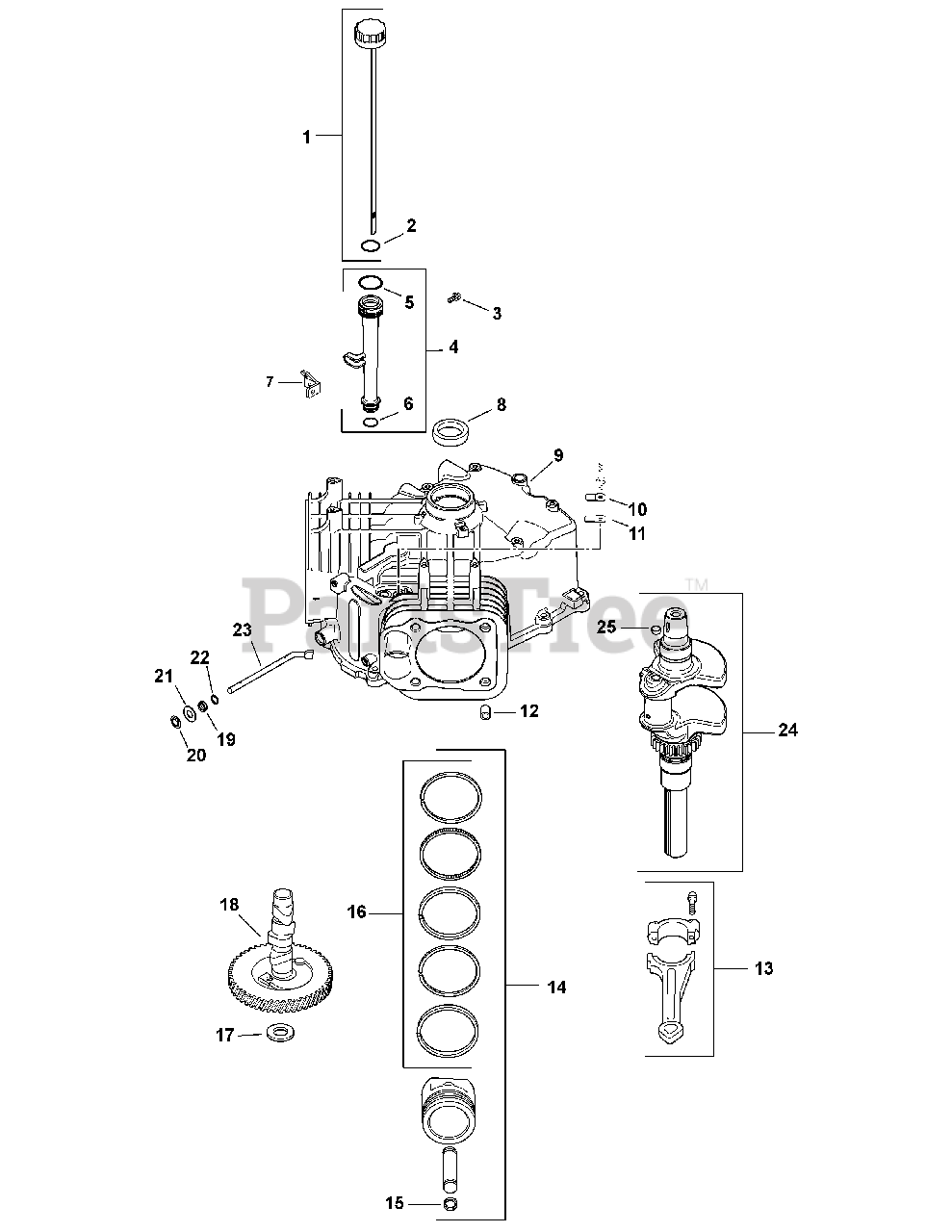

Kohler SV710-0019 Crankcase Crankshaft & Dipstick Parts Diagram

  • Title

1

Cub Cadet KH-32-038-01-S

Dipstick Assembly (Incl. Ref.2)
(Superseded to KH-32-755-04-S)

$

$

Not available

2

Cub Cadet KH-25-153-02-S

O-Ring, Dipstick

$2.49

$

In Stock, only 1 left!

0

3

Cub Cadet KH-M-545013-S

Screw, Flnge Thrd. Frmng M5 x .8 x 13

$2.49

$

In Stock, Qty 7

0

4

Cub Cadet KH-12-123-04

Kit, Oil Fill Tube (Incl. Ref. 5,6)
(Superseded to KH-32-755-04-S)

$

$

Not available

5

Cub Cadet KH-12-153-02-S

O-ring, Upper Fill Tube

$2.49

$

In Stock, Qty 8

0

6

Cub Cadet KH-12-153-01-S

O-ring, Lower Fill Tube

$4.99

$

In Stock, Qty 16

0

7

Cub Cadet KH-24-126-19

Bracket, Fill Tube
(Superseded to KH-24-126-243-S)

$11.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-032-01-S

Seal, Oil
(Superseded to KH-24-032-19-S)

$7.49

$

In Stock, Qty 20+

0

9

Cub Cadet N/A

Crankcase - Use Short Block

$

$

Currently unavailable

9

Cub Cadet KH-32-522-03

Short Block
(Superseded to KH-32-522-07)

$

$

Not available

10

Cub Cadet KH-24-018-04

Retainer, Breather Reed

$

$

Not available

11

Cub Cadet KH-12-402-02

Reed, Breather

$

$

Not available

12

Cub Cadet KH-24-380-16-S

Pin, Locating

$4.49

$

In Stock, only 3 left!

0

13

Cub Cadet KH-24-067-24-S

Connecting Rod (Std.)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, only 3 left!

0

14

Cub Cadet KH-32-874-06-S

Kit, Piston w/Ring Set (Std.)
(Superseded to KH-25-874-13-S)

$270.99

$

In Stock, only 2 left!

0

14

Cub Cadet KH-32-874-28-S

Kit, Piston w/Ring Set (.25)

$

$

Currently unavailable

14

Cub Cadet KH-32-874-09-S

Kit, Piston w/Ring Set (.08)
(Superseded to KH-25-874-07-S)

$261.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-018-01-S

Retainer, Piston Pin

$2.99

$

In Stock, Qty 7

0

16

Cub Cadet KH-24-108-11-S

Ring Set (Std. & .08)
(Superseded to KH-24-108-22-S)

$

$

Not available

16

Cub Cadet KH-24-108-06-S

Ring Set (.25)
(Superseded to KH-24-108-16-S)

$103.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-12-422-07-S

Shim, Camshaft (White .028)

$4.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-12-422-08-S

Shim, Camshaft (Blue .03)

$2.49

$

In Stock, only 2 left!

0

17

Cub Cadet KH-12-422-09-S

Shim, Camshaft (Red .032)

$2.49

$

In Stock, only 1 left!

0

17

Cub Cadet KH-12-422-10-S

Shim, Camshaft (Yellow .034)

$2.49

$

In Stock, only 1 left!

0

17

Cub Cadet KH-12-422-11-S

Shim, Camshaft (Green .036)

$2.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-12-422-12-S

Shim, Camshaft (Gray .038)

$2.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-12-422-13-S

Shim, Camshaft (Black .04)

$2.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-32-012-01-S

Kit, Camshaft

$136.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-28-032-09-S

Seal, Governor Cross Shaft

$3.49

$

In Stock, Qty 6

0

20

Cub Cadet KH-24-018-09-S

Retaining Ring

$2.49

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-M-931010-S

Washer, Flat, 9mm

$2.49

$

In Stock, only 2 left!

0

22

Cub Cadet KH-24-468-15-S

Washer, Flat, 11/32

$2.49

$

In Stock, Qty 5

0

23

Cub Cadet KH-24-144-38-S

Shaft, Governor Cross
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-32-014-04-S

Crankshaft (Incl. Ref. 25)
(Superseded to KH-32-014-303-S)

$

$

Not available

25

Cub Cadet KH-52-139-09-S

Plug, Cup

$4.99

$

In Stock, only 2 left!

0

Cub Cadet KH-SV710-0019

Engine, Complete Twin

Note: Not Shown i1046 Model 17AF

$

$

Not available
