i1042 (17WE9BKR010) - Cub Cadet 42" Zero-Turn Mower (2011) Transmission Drive & Control - i1042 Parts Diagram

42" Zero-Turn Mower

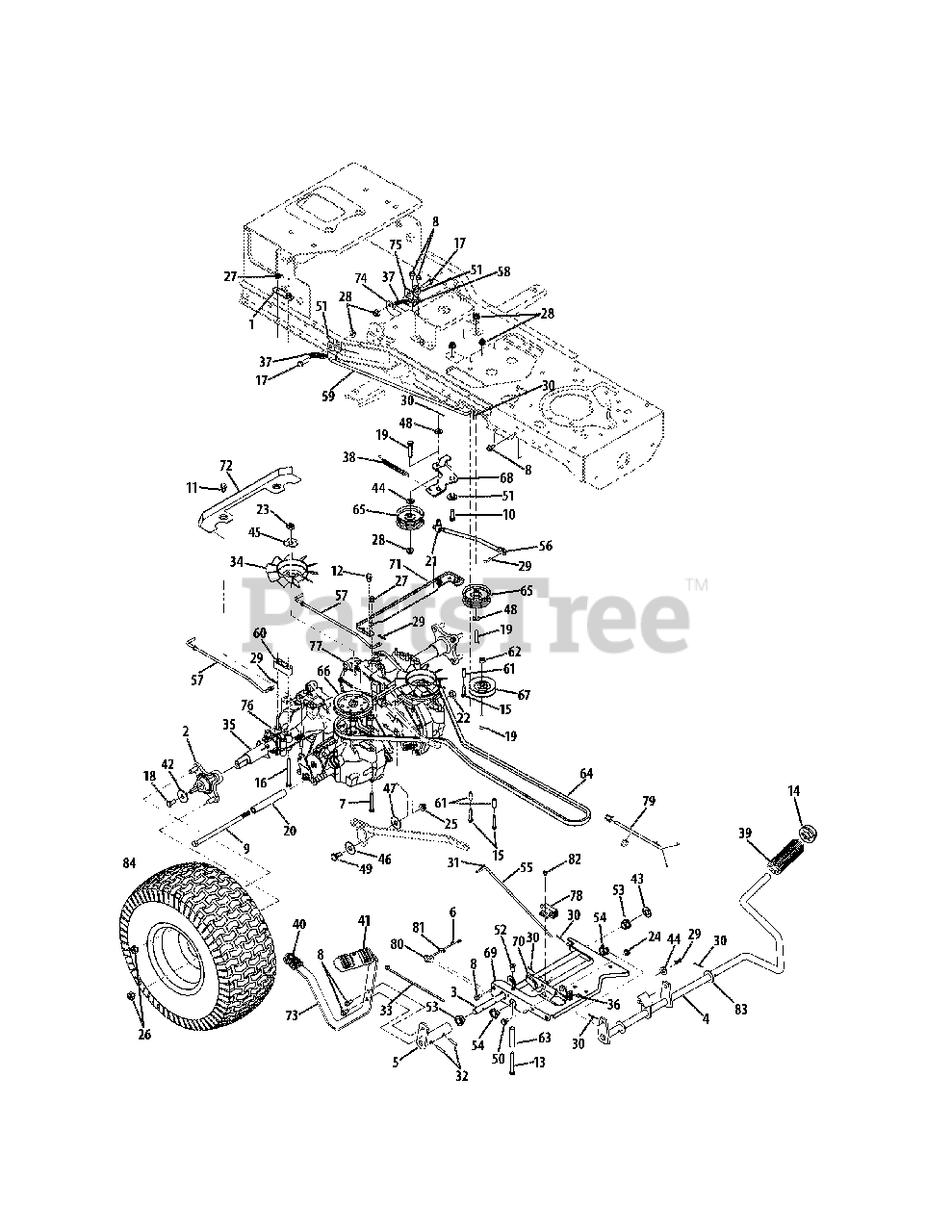

Transmission Drive & Control - i1042 Parts Diagram

  • Title

1

Cub Cadet 17840-0637

Transmission Mounting Bracket

$11.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-04612

Wheel Hub

$

$

Not available

3

Cub Cadet 647-04094A

Hydro Control Pedal Shaft Assy.

$

$

Not available

4

Cub Cadet 647-04141A

Brake Control Shaft Assembly

$107.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 683-04314B-0637

Pedal Bracket

$

$

Not available

6

Cub Cadet 710-0227

Hex Washer Screw, #8-18 x .5

$4.49

$

In Stock, Qty 15

0

7

Cub Cadet 710-0395

Hex Screw, 5/16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-04484

Hex Washer Screw, 5/16-12 x .75

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04648

Hex Screw, 7/16-14 x 8.5

$7.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0607

Hex Washer Screw, 5/16-18 x .5

$6.99

$

In Stock, Qty 12

0

13

Cub Cadet 710-0641

Hex Screw, 1/4-20 x 2.25

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 726-0214

Push Cap, 5/8

$10.99

$

In Stock, only 3 left!

0

15

Cub Cadet 710-1026

Hex Washer Screw, 1/4-20 x .75

$6.99

$

In Stock, Qty 13

0

16

Cub Cadet 710-1266

Hex Screw, 5/16-18 x 3.5

$9.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 12

0

18

Cub Cadet 710-3119

Hex Lock Screw, 3/8-16 x .75

$6.99

$

In Stock, only 1 left!

0

19

Cub Cadet 710-3144

Hex Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 7

0

20

Cub Cadet 711-04554

Spacer, .479 x .75 x 4.97

$

$

Not available

21

Cub Cadet 911-0832

Ferrule, 3/8-24 x .375

$15.99

$

In Stock, only 4 left!

0

22

Cub Cadet 712-0290

Hex Lock Nut, 7/16-14

$4.99

$

In Stock, Qty 11

0

23

Cub Cadet 912-0346

Hex Lock Nut, 1/2-20
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 9

0

24

Cub Cadet 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-0375

Hex Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 6

0

26

Cub Cadet 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, Qty 6

0

27

Cub Cadet 712-04063

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-04065

Hex Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 914-0104

Internal Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 914-0111

Cotter Pin, 3/32 x 1/0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

31

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

32

Cub Cadet 915-0143

Spirol Pin, .25 x 1.25
(Superseded to 715-0143)

$

$

Not available

33

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

34

Cub Cadet 731-05846

Hydro Fan

$23.99

$

In Stock, only 1 left!

0

35

Cub Cadet 731-06274

Sleeve, 1.015 x 2.6

$

$

Not available

36

Cub Cadet 732-0335

Compression Spring, .405 x 1.17

$

$

Not available

37

Cub Cadet 732-04495

Extension Spring, .59 x 5.4

$8.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 732-04579

Extension Spring, .60 x 6.44

$9.99

$

In Stock, only 1 left!

0

39

Cub Cadet 735-0239

Foot Pad, 4.0
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

40

Cub Cadet 735-04117

Reverse Pedal Pad

$6.49

$

In Stock, only 3 left!

0

41

Cub Cadet 735-04118A

Forward Pedal Pad

$14.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 936-0227

Flat Washer, .39 x 1.5 x .134
(Superseded to 736-0227)

$

$

Not available

43

Cub Cadet 736-0290

Flat Washer, .625 x 1.0 x .067

$6.99

$

In Stock, only 3 left!

0

44

Cub Cadet 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, only 2 left!

0

45

Cub Cadet 736-04263

Hydro Lock Washer

$6.99

$

In Stock, only 4 left!

0

46

Cub Cadet 736-3027

Flat Washer, .531 x 1.75 x .09

$

$

Not available

47

Cub Cadet 936-3039

Flat Washer, .406 x 1.5 x .105
(Superseded to 736-3039)

$

$

Not available

48

Cub Cadet 736-3050

Flat Washer, .406 x .812 x .051

$4.49

$

In Stock, Qty 16

0

49

Cub Cadet 738-0143

Shoulder Bolt, 3/8-16 x .496 x .336

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 938-0155

Shoulder Bolt, 5/16-18 x .435 x .160

$6.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 938-0347

Shoulder Spacer, .625 ID x .169

$10.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 738-04240

Shoulder Nut, .375 Dia x .5

$6.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

54

Cub Cadet 741-3065B

Hex Flange Bearing, .625 ID Split

$8.49

$

In Stock, Qty 11

0

55

Cub Cadet 747-04562A

Park Brake Rod

$16.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 747-04598A

Drive Engage Rod

$

$

Not available

57

Cub Cadet 747-04729

Hydro Bypass Rod

$15.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 747-04834

LH Brake Rod

$

$

Not available

59

Cub Cadet 747-04833

RH Brake Rod

$

$

Not available

60

Cub Cadet 748-04155

Axle Spacer

$7.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 750-04456

Spacer, .26 x .372 x 1.42

$7.49

$

In Stock, only 4 left!

0

62

Cub Cadet 750-04776

Spacer, .38 x .625 x .265

$5.49

$

In Stock, only 2 left!

0

63

Cub Cadet 750-05026

Spacer, .375 x .5 x 2.0

$

$

Not available

64

Cub Cadet 954-04134

V-Belt

$43.99

$

In Stock, only 2 left!

0

65

Cub Cadet 756-04224

Flat Idler Pulley, 2.75

$26.99

$

In Stock, Qty 20+

0

66

Cub Cadet 756-04274

Pulley

$63.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 756-04325

Idler Pulley

$24.99

$

In Stock, Qty 20+

0

68

Cub Cadet 783-04570B-0637

Idler Arm

$19.99

$

In Stock, Qty 5

0

69

Cub Cadet 783-05976-0637

Pedal Support Bracket

$

$

Not available

70

Cub Cadet 783-04981

Park Brake Bracket

$49.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 783-05330A-0637

Support Bracket

$41.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 783-05473-0637

Belt Keeper Bracket

$33.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 783-05880A

Hydro Drive Pedal

Variations

Cub Cadet 783-05880A-0637

PEDAL-HYDRO DRIVE - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 783-05836-0637

LH Brake Pivot Bracket

$

$

Not available

75

Cub Cadet 783-05839-0637

Brake Pivot Bracket

$

$

Not available

76

Cub Cadet 918-04339A

RH Hydro Transmission

$1830.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 918-04342A

LH Hydro Transmission

$1830.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 20+

0

79

Cub Cadet 725-04374

Reverse Jumper Harness

$20.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 725-1644

Reverse Switch

$9.99

$

In Stock, only 1 left!

0

81

Cub Cadet 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 9

0

82

Cub Cadet 738-04237A

Shoulder Screw, #10-32 X .5

$6.49

$

In Stock, Qty 7

0

83

Cub Cadet 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

84

Cub Cadet 634-04239

Wheel Assembly 20 x 8 x 8

Variations

Cub Cadet 634-04239-0931

USE 634-04239 WHEEL ASM COMPL - Carlisle Beige (0931)

$

$

Not available

Cub Cadet 634-04239-0961

WHEEL ASM COMPLETE - Carlisle Gray (0961)

$

$

Not available

$

$

84

Cub Cadet 734-1730-0901

Tire, 20 x 8 x 8

Note: Not shown

$99.99

$

In Stock, only 1 left!

0

84

Cub Cadet 934-0255

Tubeless Air Valve

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

84

Cub Cadet 934-0246A-0499

Rear Rim Assembly

Note: Not shown

$134.99

$

Usually ships in 3-6 days

0
