i1042 (17WE9BKR010) - Cub Cadet 42" Zero-Turn Mower (2011) Mower Deck - i1042 Parts Diagram

42" Zero-Turn Mower

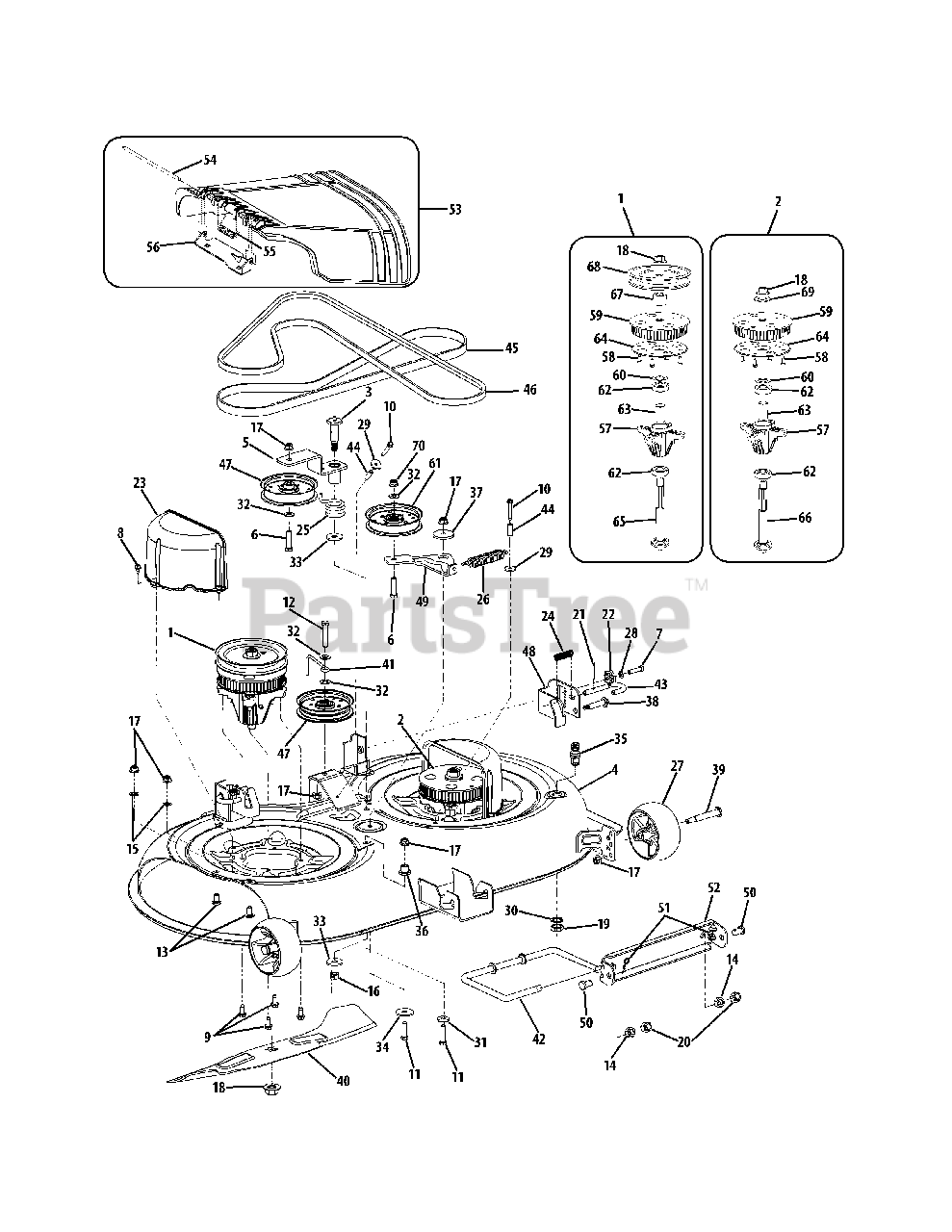

Mower Deck - i1042 Parts Diagram

  • Title

1

Cub Cadet 918-04512B

Spindle Assembly - Drive

$197.99

$

In Stock, only 1 left!

0

2

Cub Cadet 918-04516A

Spindle Assembly - Driven

$176.99

$

In Stock, only 2 left!

0

3

Cub Cadet 638-04012A

Shoulder Bolt

$21.99

$

In Stock, Qty 5

0

4

Cub Cadet 983-04379A-4021

Deck Assembly

$1161.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 683-04425-4021

Idler Bracket

$55.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-0520

Hex Screw, 3/16-18 x 1.5

$4.49

$

In Stock, Qty 6

0

7

Cub Cadet 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-1325

Hex Washer Screw, 1/4-20 x 1.625

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3144

Hex Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3178

Carriage Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 912-0206

Hex Nut, 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0290

Hex Lock Nut, 7/16-14

$4.99

$

In Stock, Qty 11

0

17

Cub Cadet 712-04065

Hex Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

19

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

20

Cub Cadet 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 917-04074

Deck Adjust Gear

$13.99

$

In Stock, Qty 14

0

23

Cub Cadet 731-06291A

Belt Cover

$

$

Not available

24

Cub Cadet 732-04652

Compression Spring, .535 x 1.751

$6.99

$

In Stock, only 3 left!

0

25

Cub Cadet 732-04469

Torsion Spring, 1.10 x 1.3

$8.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-0826A

Extension Spring, .865 x 4.68

$11.99

$

In Stock, Qty 20+

0

27

Cub Cadet 734-04155

Deck Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

28

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 936-0176

Flat Washer, .265 x .938 x .12
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

30

Cub Cadet 736-0225

Internal Tooth Lock Washer, 5/8

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 736-0258

Flat Washer, .385 x 1.0 x .135

$4.49

$

In Stock, only 2 left!

0

32

Cub Cadet 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0322

Flat Washer, .450 x 1.250 x .164

$9.49

$

In Stock, Qty 7

0

34

Cub Cadet 936-3039

Flat Washer, .406 x 1.5 x .105
(Superseded to 736-3039)

$

$

Not available

35

Cub Cadet 737-04003D

Deck Wash Nozzle

$23.99

$

In Stock, Qty 6

0

36

Cub Cadet 938-0785

Shoulder Spacer, 1.38 x .445 x .36

$25.99

$

In Stock, Qty 9

0

37

Cub Cadet 738-04162A

Shoulder Spacer, .884 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

38

Cub Cadet 738-04316A

Shoulder Bolt, 5/16 -24 x .435 x 1.76

$7.99

$

In Stock, only 1 left!

0

39

Cub Cadet 938-3056

Shoulder Bolt, 3/8-16 x .496 x 2.5

$9.49

$

In Stock, Qty 20+

0

40

Cub Cadet 942-04217

2-in-1 Blade

$43.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 747-04530

Belt Keeper Rod

$7.49

$

In Stock, Qty 20+

0

42

Cub Cadet 747-04863

Deck Front Hanger Rod

$

$

Not available

43

Cub Cadet 747-1116

Deck Release Rod

$12.99

$

In Stock, Qty 6

0

44

Cub Cadet 750-0566A

Spacer, .26 x .372 x 1.03

$9.99

$

In Stock, only 1 left!

0

45

Cub Cadet 954-04167

Timing Belt

$113.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 954-04185

V-Belt

$51.99

$

In Stock, only 1 left!

0

47

Cub Cadet 756-04129B

Idler Pulley, 4.25
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

48

Cub Cadet 783-05627-0637

Deck Hanger/Adjust LH Bracket

$19.99

$

In Stock, only 1 left!

0

49

Cub Cadet 783-05802

Idler Bracket

Variations

Cub Cadet 783-05802-0637

Tension Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

50

Cub Cadet 911-0332

Clevis Pin, .5 x .78

$16.99

$

In Stock, Qty 17

0

51

Cub Cadet 914-04023

Internal Cotter Pin
(Superseded to 714-04023)

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 783-0720C-0637

Front Deck Rod Bracket

$45.99

$

In Stock, only 2 left!

0

53

Cub Cadet 631-04254

Chute Deflector Assembly
(Superseded to 631-04293A)

$63.99

$

In Stock, Qty 6

0

54

Cub Cadet 711-04847B

Hinge Pin

$8.99

$

In Stock, Qty 7

0

55

Cub Cadet 732-04372

Torsion Spring, .44 x 2.0

$10.99

$

In Stock, Qty 8

0

56

Cub Cadet 783-05823

Chute Mounting Bracket

$33.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 619-04183A

Spindle Housing
(Superseded to 719-07293-M)

$44.99

$

In Stock, Qty 5

0

58

Cub Cadet 710-04065

Screw, 1/4-10 x .625

$6.49

$

In Stock, Qty 20+

0

59

Cub Cadet 913-04040A

Timing Pulley

$71.99

$

In Stock, only 1 left!

0

60

Cub Cadet 936-0287

Flat Washer, .793 x 1.24 x .06
(Superseded to 736-0287)

$

$

Not available

61

Cub Cadet 756-04280

Idler Pulley
(Superseded to 756-04280A)

$39.99

$

In Stock, only 4 left!

0

62

Cub Cadet 941-0919A

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

63

Cub Cadet 750-04936

Spacer, .792 x 1.06 x 1.86

$6.99

$

In Stock, Qty 20+

0

64

Cub Cadet 787-01520

Timing Pulley Plate

$11.99

$

In Stock, only 2 left!

0

65

Cub Cadet 938-04292

Spindle Shaft

$46.99

$

In Stock, Qty 8

0

66

Cub Cadet 938-04291

Spindle Shaft

$44.99

$

In Stock, only 1 left!

0

67

Cub Cadet 750-04724

Spacer, .735 x 1.375 x1.066

$10.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 756-04372

Deck Pulley

$

$

Not available

69

Cub Cadet 736-0315

Flat Washer, .76 x 1.5 x .12

$6.99

$

In Stock, Qty 6

0

70

Cub Cadet 712-0266A

Jam Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0
