i1042 (17WE9BKR010) - Cub Cadet 42" Zero-Turn Mower (2011) Kohler SV540-3219 Engine Controls Parts Diagram

42" Zero-Turn Mower

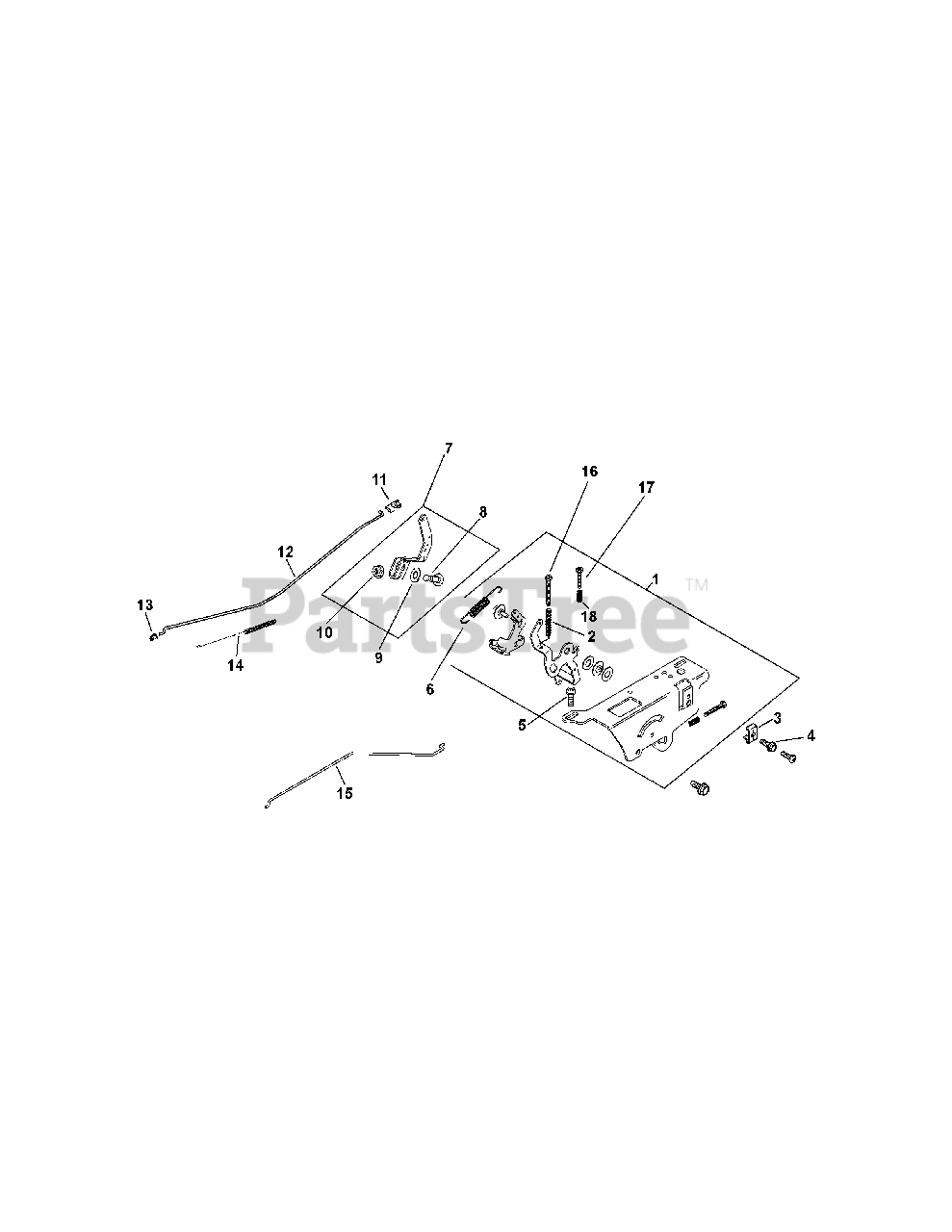

Kohler SV540-3219 Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-20-536-06-S

Speed Control Assembly Kit

Note: (Inc. 2,6, 16-18 KH-25-086-297-S & KH-M-66420-S)

$52.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-20-089-12-S

Speed Control Spring (Long)

$27.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-12-237-01

Cable Clamp
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-M-545016-S

Flg. Thd. Frm. Screw, M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-M-664020-S

Lbd. Skt. Screw, M6 x 1.0 x 20
(Superseded to KH-25-086-403-S)

$2.49

$

In Stock, only 2 left!

0

6

Cub Cadet KH-20-089-11-S

Governor Spring

$2.49

$

In Stock, Qty 7

0

7

Cub Cadet KH-20-090-11-S

Lever, Governor Assembly (Inc.8-10)

$6.49

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-52-211-04

Rd. Hd. Sq. Nck. Bolt, 1/4-20 x 1

$

$

Not available

9

Cub Cadet KH-X-22-11

Internal Tooth Lock Washer, 1/4

$

$

Not available

10

Cub Cadet KH-12-100-07

Hex Flange Nut, 1/4-20

$

$

Not available

11

Cub Cadet KH-25-158-11

Throttle Linkage Bushing

$

$

Not available

12

Cub Cadet KH-20-079-07-S

Throttle Linkage

$3.99

$

In Stock, only 3 left!

0

13

Cub Cadet KH-25-158-08

Linkage Retaining Bushing

$5.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-20-089-10-S

Linkage Spring

$3.99

$

In Stock, Qty 8

0

15

Cub Cadet KH-20-079-05-S

Choke Linkage

$2.99

$

In Stock, Qty 5

0

16

Cub Cadet KH-20-086-18-S

Phl. Thd. Frm. Screw, M4 x 0.7 x 38

$2.49

$

In Stock, Qty 6

0

17

Cub Cadet KH-20-086-10-S

Phl. Thd. Frm. Screw, M4 x 0.7 x 25

$2.49

$

In Stock, only 3 left!

0

18

Cub Cadet KH-12-089-11-S

Speed Control Spring (Short)

$2.49

$

In Stock, only 4 left!

0
