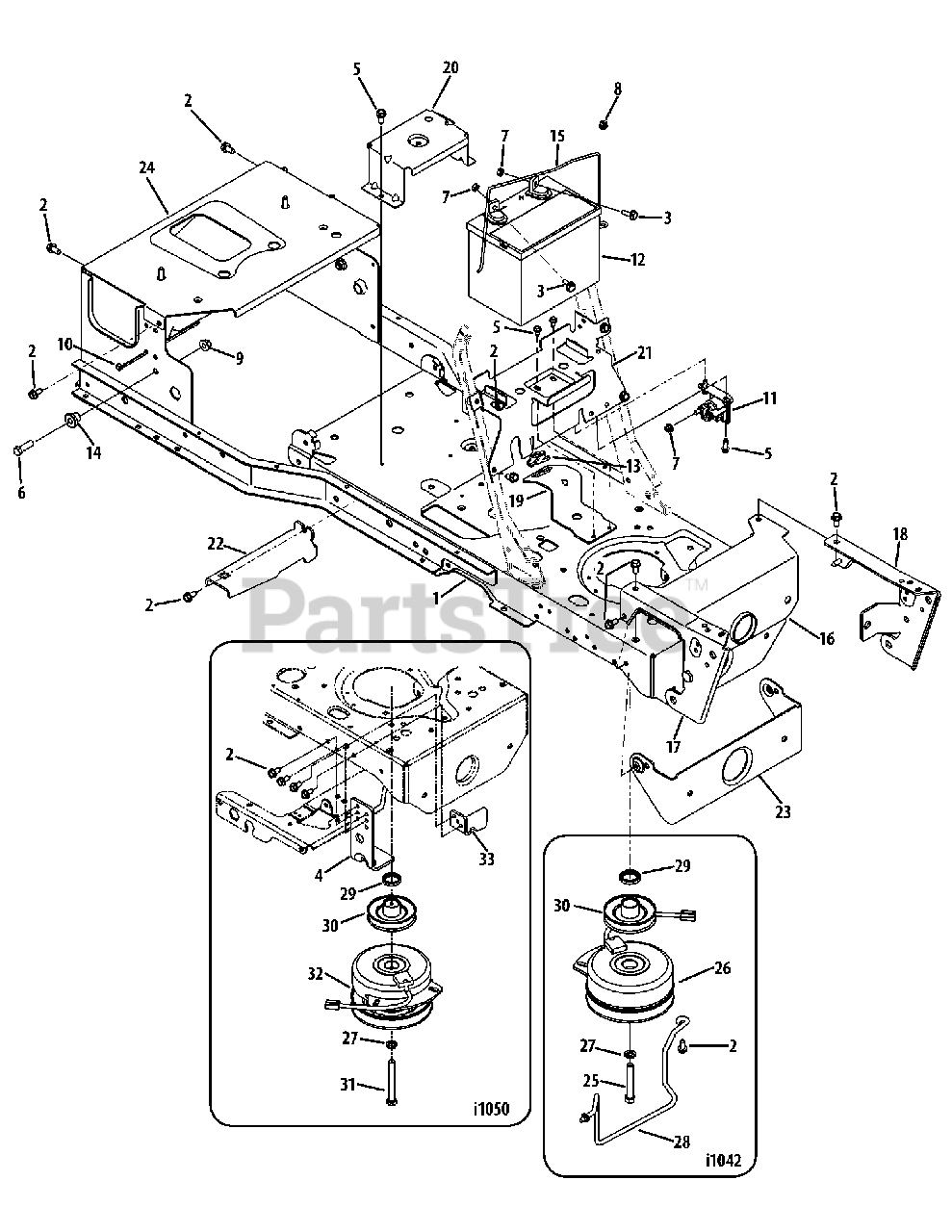

i1042 (17WE9BKR010) - Cub Cadet 42" Zero-Turn Mower (2011) Frame, PTO & Battery Parts Diagram

42" Zero-Turn Mower

Frame, PTO & Battery Parts Diagram

  • Title

1

Cub Cadet 683-04513-0637

Frame Assembly

$

$

Not available

2

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04666

Hex Flange Screw, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

0

4

Cub Cadet 783-04467-0637

Up Stop Deck Bracket

$37.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0642

Hex Washer Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

7

Cub Cadet 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04064

Hex Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04065

Hex Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

12

Cub Cadet 925-1707D

Battery

$

$

Not available

13

Cub Cadet 731-05659

Steering Shaft Bushing

$10.99

$

In Stock, only 1 left!

0

14

Cub Cadet 738-04058

Shoulder Spacer, .38 x 1.0 x .7

$4.49

$

In Stock, only 3 left!

0

15

Cub Cadet 747-04215-0637

Battery Strap

$16.99

$

In Stock, Qty 7

0

16

Cub Cadet 783-04806-0637

Pivot Bar Bracket

$40.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 783-04844-0637

RH Pivot Support Bracket

$47.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 783-04845-0637

LH Pivot Support Bracket

$45.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 783-04868-0637

Steering Support Bracket

$

$

Not available

20

Cub Cadet 783-04910A-0637

Support Fender Bracket

$

$

Not available

21

Cub Cadet 783-05469-0637

Battery Support Bracket

$

$

Not available

22

Cub Cadet 783-05617-0637

Running Board Support Bracket

$

$

Not available

23

Cub Cadet 783-05760-0637

Pivot Bar Support Bracket

$

$

Not available

24

Cub Cadet 783-05850A-0637

Seat Frame Plate

$

$

Not available

25

Cub Cadet 710-04377

Hex Lock Screw, 7/16-50 x 2.75

$11.99

$

In Stock, only 1 left!

0

26

Cub Cadet 917-04526

Electric PTO Clutch, 42" Deck
(Superseded to 917-04526A)

$756.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

28

Cub Cadet 747-05056

Belt Keeper Rod

$

$

Not available

29

Cub Cadet 750-04763

Spacer, 1.375 x 1.00 x .25

$11.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 756-0978B

Engine Pulley

$66.99

$

In Stock, Qty 13

0

31

Cub Cadet 710-04379A

Hex Lock Screw, 7/16-50 x 3.50

$6.49

$

In Stock, only 2 left!

0

32

Cub Cadet 917-04174A

Electric PTO Clutch, 50" Deck

$679.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 783-04419B-0637

Clutch Bracket

$14.99

$

In Stock, only 4 left!

0

Cub Cadet 925-04375A

Wire Harness

Note: Not shown

$259.99

$

Usually ships in 3-6 days

0
