i1042 (17WE9BKR010) - Cub Cadet 42" Zero-Turn Mower (2010 & Before) Engine SV540-0219 Crankcase Parts Diagram

42" Zero-Turn Mower

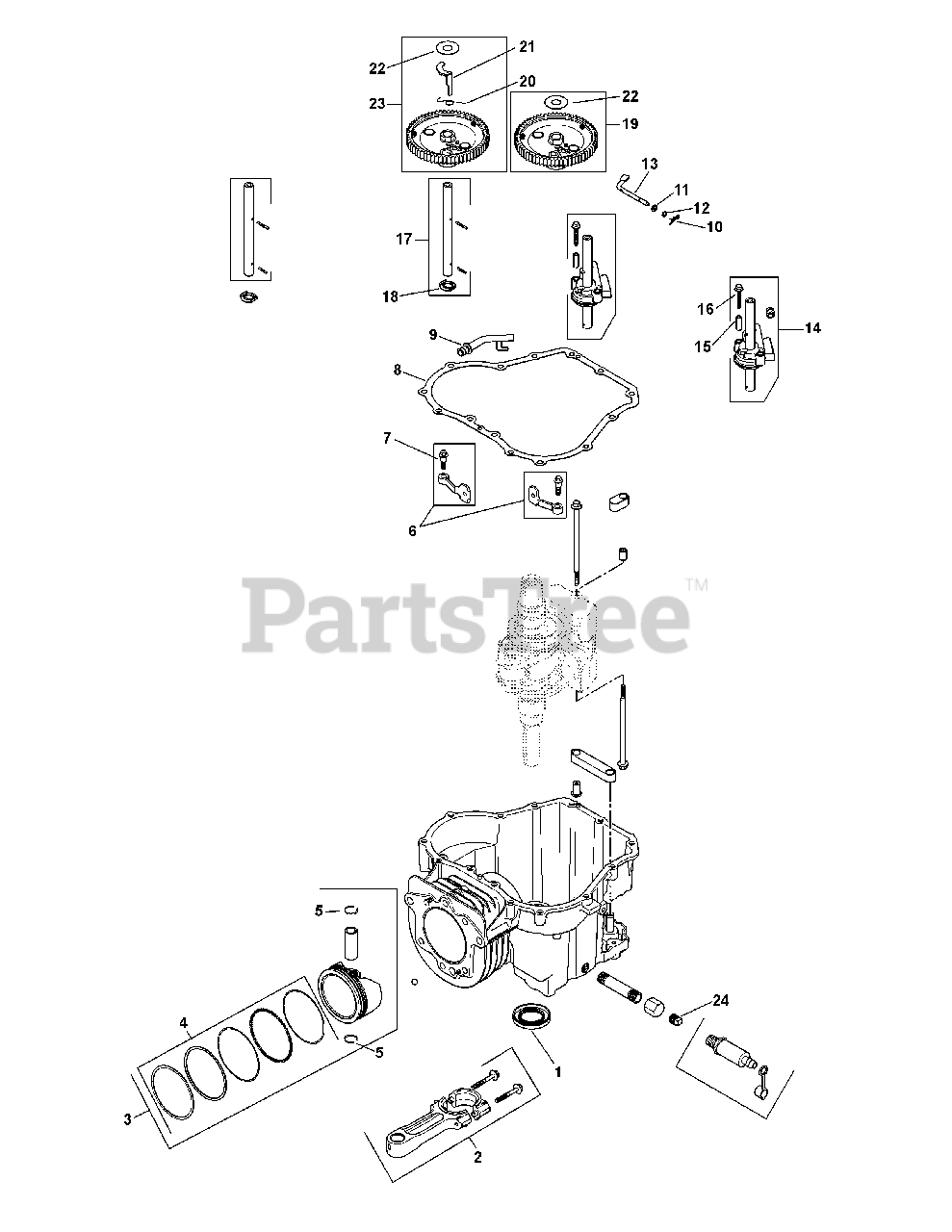

Engine SV540-0219 Crankcase Parts Diagram

  • Title
1

Cub Cadet KH-20-032-01-S

Oil Seal
(Superseded to KH-20-032-08-S)

$9.49

$

In Stock, Qty 11

0

2

Cub Cadet KH-20-067-05-S

Connecting Assembly Rod

$80.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-20-874-09-S

Piston w/ Ring Set Kit, 94mm (Inc. 4 & 5)
(Superseded to KH-20-874-16-S)

$114.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-20-108-04-S

Ring Set, 94mm

$63.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-62-018-04-S

Piston Pin Retainer

$2.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-20-090-01-S

Cam Lever Assembly Kit (Inc. 7)
(Superseded to KH-20-090-12-S)

$5.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-20-086-06-S

Shd. Thd. Frm. Screw M6 x 1 x 26

$3.99

$

In Stock, Qty 16

0

8

Cub Cadet KH-20-041-01-S

Closure Plate Gasket
(Superseded to KH-20-041-21-S)

$

$

Not available

9

Cub Cadet KH-20-123-02-S

Drainback Tube

$4.99

$

In Stock, Qty 10

0

10

Cub Cadet KH-12-154-05

Hitch Pin Clip
(Superseded to KH-12-154-05-S)

$2.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-M-631015

Flat Washer, 6 mm
(Superseded to KH-M-631015-S)

$2.49

$

In Stock, Qty 7

0

12

Cub Cadet KH-X-25-102-S

Flat Washer, 1.4

$2.49

$

In Stock, Qty 5

0

13

Cub Cadet KH-20-144-02-S

Governor Cross Shaft

$14.99

$

In Stock, only 1 left!

0

14

Cub Cadet KH-20-393-02-S

Oil Pump Assembly Kit (Inc. 8, 15 & 16)

$41.99

$

In Stock, only 1 left!

0

15

Cub Cadet KH-20-112-02-S

Oil Pump Screw Spacer
(Superseded to KH-20-086-12-S)

$2.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-20-086-13-S

Oil Pump Screw
(Superseded to KH-20-086-12-S)

$2.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-20-144-11-S

Cam Center Shaft Kit, Exhaust (Inc. 18)

$20.99

$

In Stock, only 1 left!

0

18

Cub Cadet KH-20-468-08-S

Thrust Washer

$2.99

$

In Stock, only 1 left!

0

19

Cub Cadet KH-20-010-04-S

Camshaft Assembly Kit (Inc. 20-22)

$

$

Not available

20

$2.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-20-044-23-S

ACR Weight
(Superseded to KH-20-044-32-S)

$13.99

$

In Stock, only 1 left!

0

22

Cub Cadet KH-20-468-03-S

Thrust-ACR Washer

$2.49

$

In Stock, Qty 10

0

23

Cub Cadet KH-20-010-04-S

Camshaft Assembly Kit (Inc. 22)

$

$

Not available

24

Cub Cadet KH-25-139-57-S

Sq. Hd. Pipe Plug, 3.8

$2.49

$

In Stock, only 3 left!

0

Crankcase (Use Short Block)

Note: Not Shown

$

$

Not available
