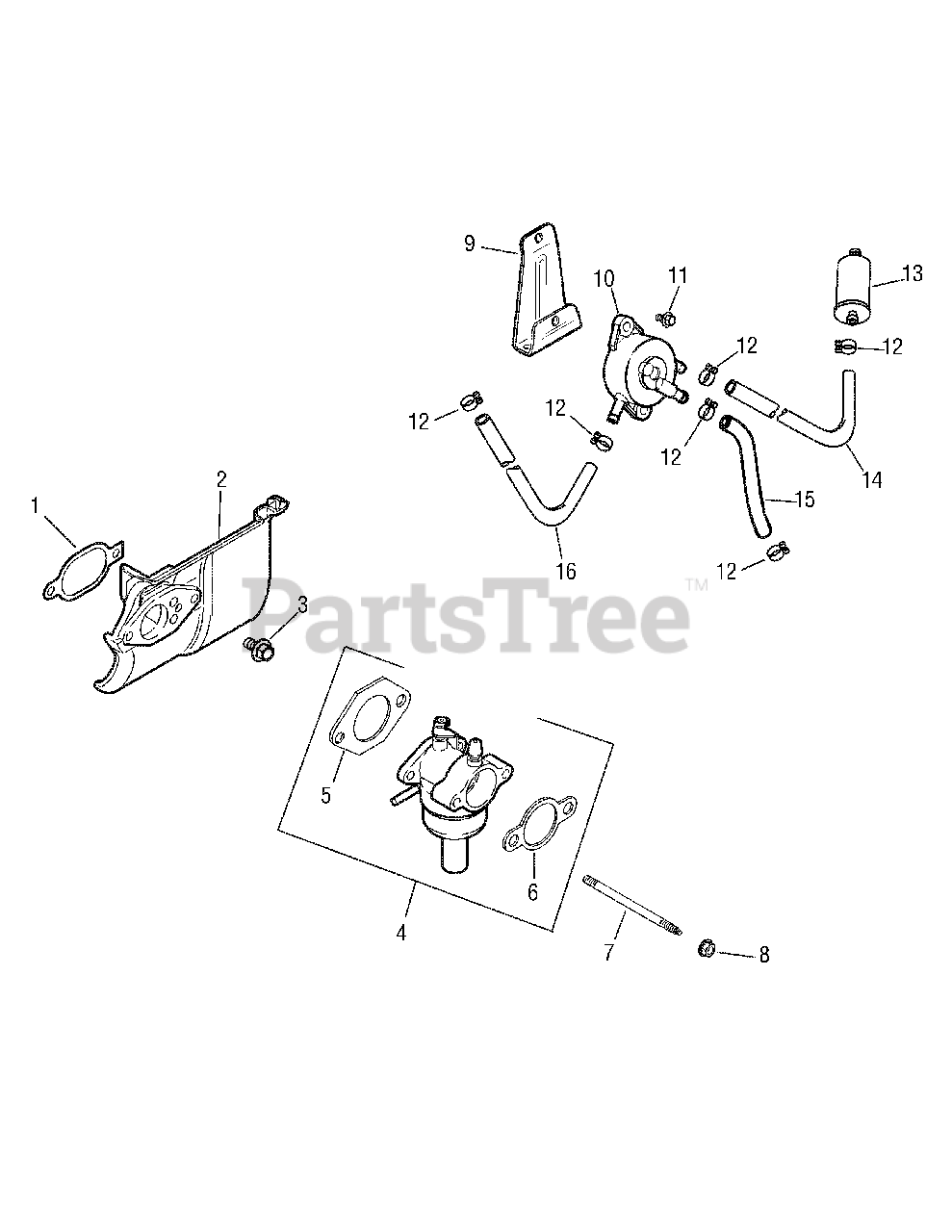

i1042 (17RE9BKR056) - Cub Cadet 42" Zero-Turn Mower (2010 & Before) Engine SV540-0020 Fuel System Parts Diagram

42" Zero-Turn Mower

Engine SV540-0020 Fuel System Parts Diagram

  • Title
1

Cub Cadet KH-20-041-07-S

Gasket, heat deflector
(Superseded to KH-20-041-17-S)

$7.49

$

In Stock, only 2 left!

0

2

Cub Cadet KH-20-265-09-S

Deflector, heat

$29.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-M-651020-S

Screw, hex. flange M6x1.0x20

$2.49

$

In Stock, Qty 6

0

4

Cub Cadet KH-20-853-16-S

Carburetor w/gaskets (Includes 5,6)
(Superseded to KH-20-853-33-S)

$176.99

$

In Stock, only 3 left!

0

5

Cub Cadet KH-12-041-01

Gasket, carburetor

$2.49

$

In Stock, Qty 14

0

6

Cub Cadet KH-12-041-02

Gasket, air cleaner

$2.99

$

In Stock, Qty 5

0

7

Cub Cadet KH-20-072-05-S

Stud, carburetor mounting
(Superseded to KH-20-072-10-S)

$4.99

$

In Stock, Qty 9

0

8

Cub Cadet KH-M-641060-S

Nut, hex. flange M6x1.0

$4.49

$

In Stock, Qty 8

0

9

Cub Cadet KH-20-126-02-S

Bracket, fuel pump mounting

$8.99

$

Usually ships in 2-5 days

0

10

$

$

Not available

11

Cub Cadet KH-M-0545010

Screw, hex. flange

$

$

Not available

12

Cub Cadet KH-25-237-14-S

Clamp, hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

13

Cub Cadet KH-25-050-22-S

Filter, fuel
(Superseded to KH-25-050-22-S1)

$9.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-20-353-01-S

Line, fuel 15-3/4" (pump to filter)

$

$

Not available

15

Cub Cadet KH-41-353-15-S

Line, fuel 2" (pump to carb)

$3.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-52-353-20

Line, fuel 10" (pump to fitting)
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

Cub Cadet KH-20-431-01-S

Sleeve, fuel line (not shown)
(Superseded to KH-25-431-12-S)

$10.99

$

In Stock, only 1 left!

0

Cub Cadet KH-X-22-11

Washer, lock 1/4" (ground) (not shown)

$

$

Not available

Cub Cadet KH-12-755-110-S

Kit, choke shaft (not shown)

$14.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-757-02

Kit, float (not shown)

$

$

Not available

Cub Cadet KH-12-757-03

Kit, carburetor repair (not shown)

$35.99

$

In Stock, Qty 8

0

Cub Cadet KH-25-757-25-S

Kit, solenoid repair (not shown)

$76.99

$

In Stock, only 1 left!

0

Cub Cadet KH-12-757-37-S

Kit, bowl replacement w/gaskets (not shown)

$16.99

$

In Stock, Qty 6

0

Cub Cadet KH-12-454-03-S

Tie, wire (not shown)

$3.49

$

Usually ships in 2-5 days

0
