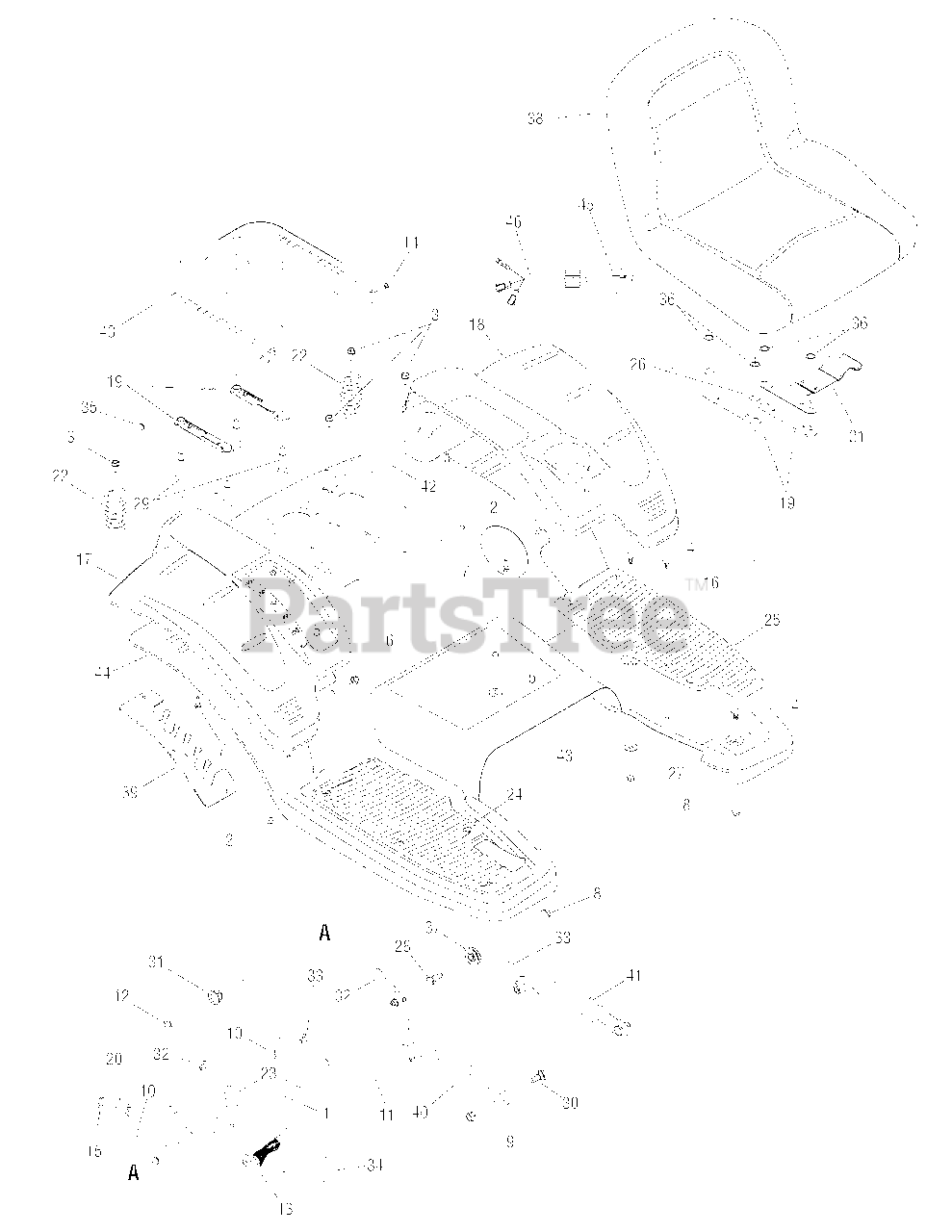

i1042 (17AE9BKR256) - Cub Cadet 42" Zero-Turn Mower (2010 & Before) Seat, Fender & Deck Lift Parts Diagram

42" Zero-Turn Mower

Seat, Fender & Deck Lift Parts Diagram

  • Title

1

Cub Cadet 647-04095A

Shaft, Lift
(Superseded to 647-04095A-0637)

Variations

Cub Cadet 647-04095A-0637

SHAFT ASM-LIFT DECK - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

$80.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-04187

Screw, Hex Wash Hd. H/L, 1/4-15 x .5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

3

Cub Cadet 710-1260A

Screw, Hex Wash Hd. Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0451

Screw, Carriage, 5/16-18 x 75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0599

Screw, Hex Wash Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0726

Screw, Hex Wash Hd. Tapp, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0895

Screw, Hex Wash Hd. Tapp, 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

8

Cub Cadet 712-04063

Nut, Hex Flange Insert Lock, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04065

Nut, Hex Flange Insert Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0111

Pin, Cotter, 3/32 x 1.0

$4.99

$

In Stock, Qty 13

0

12

Cub Cadet 716-0106A

E-ring, .625 Shaft

$5.49

$

In Stock, only 2 left!

0

13

Cub Cadet 720-0311

Grip, Handle

$15.99

$

In Stock, only 2 left!

0

14

Cub Cadet 726-0135

Nut, Speed, .3125 Dia.

$6.99

$

In Stock, only 1 left!

0

15

Cub Cadet 726-0221

Nut, Speed, .5

$6.49

$

In Stock, only 1 left!

0

16

Cub Cadet 726-3046

Clip, Ratchet

$3.99

$

In Stock, Qty 16

0

17

Cub Cadet 731-05477

Cover, Rear Fender RH

$78.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-05518

Cover, Rear Fender LH

$

$

Not available

19

Cub Cadet 731-06208

Spacer, Seat Adjust

$

$

Not available

20

Cub Cadet 732-04459

Spring, Lift Handle Torsion

$

$

Not available

21

Cub Cadet 732-04491

Spring, Seat Adjust

$

$

Not available

22

Cub Cadet 732-04508

Spring, Compression, 1.71 x 3.25 x .23

$7.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 732-0826A

Spring, Extension, .865 x 4.68

$11.99

$

In Stock, Qty 20+

0

24

Cub Cadet 735-04078A

Pad, Foot RH

$

$

Not available

25

Cub Cadet 735-04109

Pad, Foot LH

$18.99

$

In Stock, only 1 left!

0

26

Cub Cadet 736-0192

Washer, Flat, .535 x .93 x .09

$4.49

$

In Stock, Qty 8

0

27

Cub Cadet 736-3078

Washer, Flat, .344 x 1.0 x .063 HT

$4.49

$

In Stock, only 3 left!

0

28

Cub Cadet 738-0138A

Bolt, Shoulder, .496 x 2.5:3/8-16

$6.99

$

In Stock, only 2 left!

0

29

Cub Cadet 738-0373

Bolt, Shoulder, .496 x 1.525:3/8-16
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

30

Cub Cadet 738-04130

Bolt, Shoulder, .625 x .175:3/8-16
(Superseded to 738-04130A)

$9.49

$

In Stock, Qty 10

0

31

Cub Cadet 741-0225

Bearing, Hex Flange,
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

32

Cub Cadet 746-04369

Cable, Lift, 16.16 Lg

$39.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 746-0968

Cable, Lift, 16.16 Lg

$19.99

$

In Stock, Qty 20+

0

34

Cub Cadet 747-04701

Handle, Lift

$

$

Not available

35

Cub Cadet 747-04821

Rod, Seat, 5/16 x 11.62

$

$

Not available

36

Cub Cadet 750-04945

Spacer, .51 x .75 x 1.0

$6.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 756-1154

Pulley, Roller

$7.99

$

In Stock, only 2 left!

0

38

Cub Cadet 757-04030A

Seat, High Back

$

$

Not available

39

Cub Cadet 783-04977A

Plate, Deck Lift Index
(Superseded to 783-04977A-0637)

Variations

Cub Cadet 783-04977A-0637

PLATE-LIFT:DECK - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 783-04494B

Arm, Deck Lift RH
(Superseded to 783-04494C)

Variations

Cub Cadet 783-04494B-0637

Deck Lift Arm, RH - POWDER BLACK (0637)

$21.99

$

In Stock, only 1 left!

0

Cub Cadet 783-04494B-4008

Deck Lift Arm, RH - WINE RED (4008)

$21.99

$

In Stock, only 1 left!

0

$20.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 783-04711B

Arm, Deck Lift LH
(Superseded to 783-04711C)

Variations

Cub Cadet 783-04711B-0637

Deck Lift Arm, LH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04711B-4008

Deck Lift Arm, LH - WINE RED (4008)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 783-05816

Bracket, Seat Pivot
(Superseded to 783-05816-0637)

Variations

Cub Cadet 783-05816-0637

BRACKET-PIVOT SEAT - POWDER BLACK (0637)

$

$

Not available

$

$

43

Cub Cadet 783-05817

Plate, Seat Mounting
(Superseded to 783-05817-0637)

Variations

Cub Cadet 783-05817-0637

PLATE-SEAT I-1000 - POWDER BLACK (0637)

$

$

Not available

$

$

44

Cub Cadet 783-05865

Fender, Rear
(Superseded to 783-05865-0637)

Variations

Cub Cadet 783-05865-0637

FENDER- I SERIES - POWDER BLACK (0637)

$

$

Not available

$

$

45

Cub Cadet 725-04040

Switch, Seat
(Superseded to 925-04040)

$36.99

$

In Stock, only 2 left!

0

46

Cub Cadet 725-04658

Harness, Seat Switch Jumper
(Superseded to 725-04658A)

$

$

Not available
