i1042 (17AE9BKR256) - Cub Cadet 42" Zero-Turn Mower (2010 & Before) Engine SV540-0020 Controls Parts Diagram

42" Zero-Turn Mower

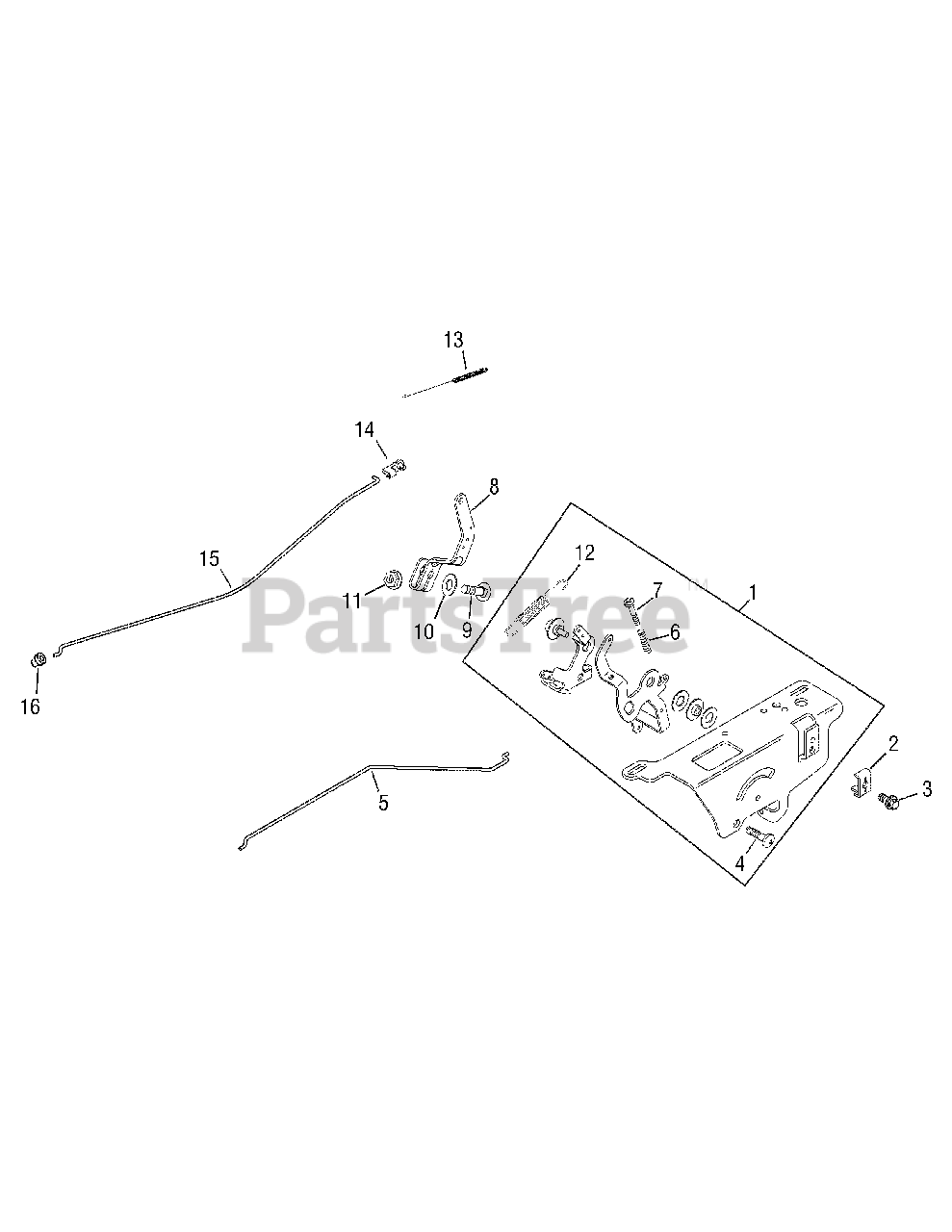

Engine SV540-0020 Controls Parts Diagram

  • Title

1

Cub Cadet KH-20-536-05-S

Control Assembly, Speed
(Superseded to KH-20-536-06-S)

Note: (Includes 4,6,7 & 12)

$52.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-12-237-01

Clamp, cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-M-545016-S

Screw, hex fl ange thread forming M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-M-664020-S

Screw, 6 lobed socket thread forming M6 x 1.0 x 20
(Superseded to KH-25-086-403-S)

$2.49

$

In Stock, only 2 left!

0

5

Cub Cadet KH-20-079-05-S

Linkage, choke

$2.99

$

In Stock, Qty 7

0

6

Cub Cadet KH-12-089-11

Spring, speed control
(Superseded to KH-12-089-11-S)

$2.49

$

In Stock, only 4 left!

0

7

Cub Cadet KH-20-086-10-S

Screw, hex fl ange thread forming M4 x 0.7 x 25

$2.49

$

In Stock, only 3 left!

0

8

Cub Cadet KH-20-090-02-S

Lever, governor
(Superseded to KH-20-090-11-S)

$6.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-52-211-04

Bolt, round head square neck 1/4-20 x 1"

$

$

Not available

10

Cub Cadet KH-X-22-11

Washer, internal tooth lock 1/4"

$

$

Not available

11

Cub Cadet KH-12-100-07

Nut, hex. fl ange 1/4-20"

$

$

Not available

12

Cub Cadet KH-20-089-11-S

Spring, governor

$2.49

$

In Stock, Qty 8

0

13

Cub Cadet KH-20-089-10-S

Spring, linkage

$3.99

$

In Stock, Qty 9

0

14

Cub Cadet KH-25-158-11

Bushing, throttle linkage

$

$

Not available

15

Cub Cadet KH-20-079-04-S

Linkage, throttle
(Superseded to KH-20-079-07-S)

$3.99

$

In Stock, Qty 5

0

16

Cub Cadet KH-25-158-08

Bushing, linkage retaining

$5.99

$

Usually ships in 2-5 days

0
