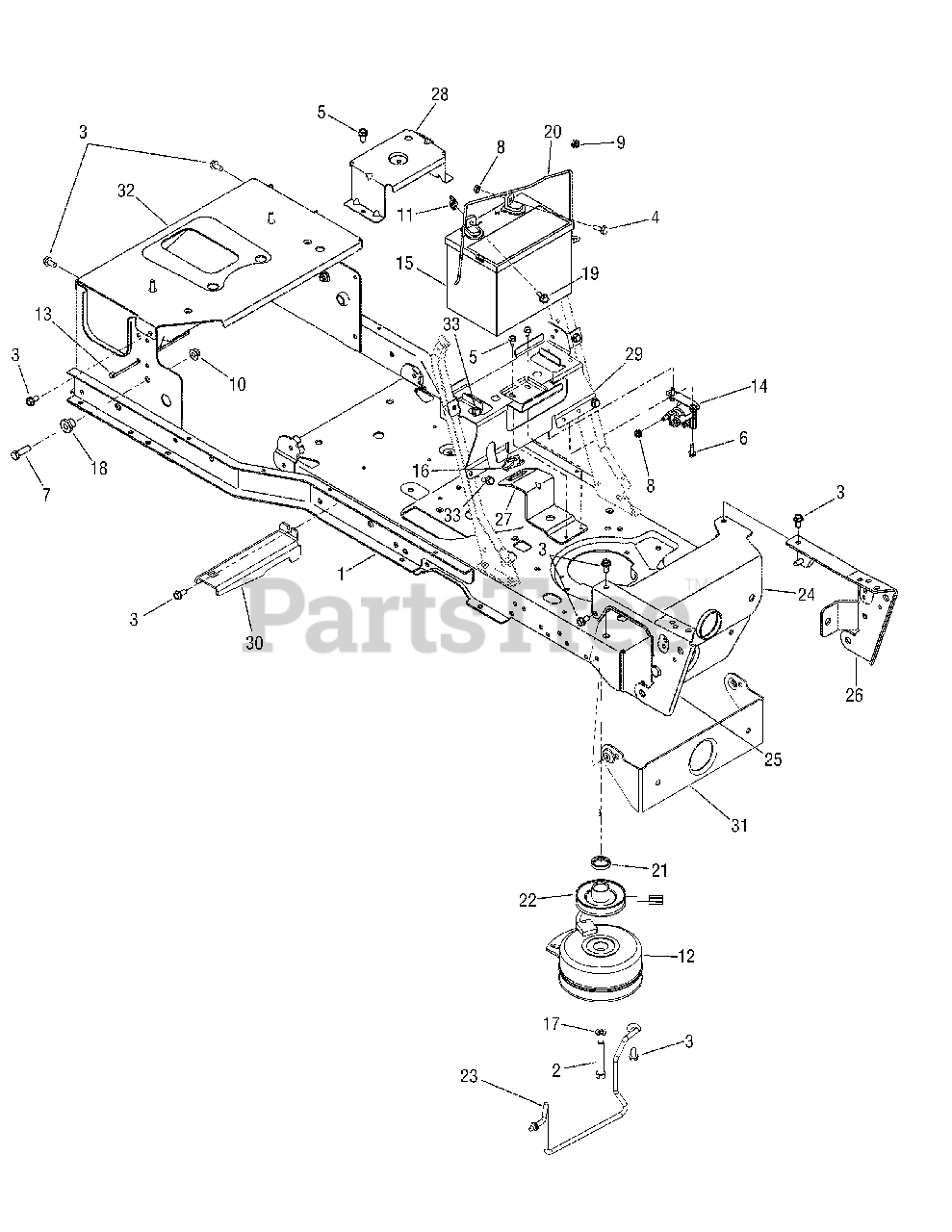

i1042 (17AE9BKR056) - Cub Cadet 42" Zero-Turn Mower (2010 & Before) Frame, PTO & Battery Parts Diagram

42" Zero-Turn Mower

Frame, PTO & Battery Parts Diagram

  • Title

1

Cub Cadet 683-04305B

Frame Assembly
(Superseded to 683-04305B-0637)

Variations

Cub Cadet 683-04305B-0637

FRAME ASSY-HYDRO - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 710-04377

Screw, Hex Cap Lock, 7/16-20 x 2.75 Gr5

$11.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-04484

Screw, Hex Wash. Hd. Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-04666

Screw, Hex Flange Hd. , 1/4-20 x .75 Gr5

$6.99

$

In Stock, only 3 left!

0

5

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0642

Screw, Hex Wash. Hd. Tapp, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 Gr5

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04064

Nut, Hex Flange Insert Lock, 1/4-20 GrF

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04065

Nut, Hex Flange Insert Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 717-04526

Clutch, Electric PTO
(Superseded to 917-04526A)

$756.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 725-04439

Solenoid, Start
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

15

Cub Cadet 925-1707D

Battery - Dry

$

$

Not available

16

Cub Cadet 731-05659

Bushing, Steering Shaft

$10.99

$

In Stock, only 1 left!

0

17

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

18

Cub Cadet 738-04058

Spacer, Shoulder, .38 x 1.0 x .7

$4.49

$

In Stock, only 3 left!

0

19

Cub Cadet 738-1132

Screw, Shoulder, .25 x .15:1/4-20

$5.49

$

In Stock, only 2 left!

0

20

Cub Cadet 747-04215

Strap, Battery
(Superseded to 747-04215-0637)

Variations

Cub Cadet 747-04215-0637

Battery Strap - POWDER BLACK (0637)

$16.99

$

In Stock, Qty 7

0

$16.99

$

In Stock, Qty 7

0

21

Cub Cadet 750-04763

Spacer, 1.37 x 1.00 x .25

$11.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 756-0978B

Pulley, Engine

$66.99

$

In Stock, Qty 13

0

23

Cub Cadet 747-04685A

Rod, Belt Keeper

$31.99

$

In Stock, only 1 left!

0

24

Cub Cadet 783-04806

Bracket, Pivot Bar

Variations

Cub Cadet 783-04806-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04806-0716

BRACKET-PIVOT BAR - CUB YELLOW-99 (0716)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 783-04844

Bracket, Pivot Support RH

Variations

Cub Cadet 783-04844-0637

Pivot Support Bracket - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04844-0716

BRACKET-PIVOT SUPPORT - CUB YELLOW-99 (0716)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 783-04845

Bracket, Pivot Support LH

Variations

Cub Cadet 783-04845-0637

BRACKET-PIVOT SUPT - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04845-0716

BRACKET-PIVOT SUPPORT - CUB YELLOW-99 (0716)

$

$

Not available

$36.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 783-04868

Bracket, Steering Support
(Superseded to 783-04868-0637)

Variations

Cub Cadet 783-04868-0637

Steering Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

28

Cub Cadet 783-04910A

Bracket, Support Fender
(Superseded to 783-04910A-0637)

Variations

Cub Cadet 783-04910A-0637

BRACKET-SUPPORT FE - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 783-05469

Bracket, Battery Support

Variations

Cub Cadet 783-05469-0637

BRACKET-BATTERY TRAY - POWDER BLACK (0637)

$

$

Not available

$

$

30

Cub Cadet 783-05617

Bracket, Running Board Support
(Superseded to 783-05617-0637)

Variations

Cub Cadet 783-05617-0637

BRACKET SUPT - POWDER BLACK (0637)

$

$

Not available

$

$

31

Cub Cadet 783-05760

Bracket, Pivot Bar Support
(Superseded to 783-05760-0637)

Variations

Cub Cadet 783-05760-0637

BRACKET-SUPPORT I1 - POWDER BLACK (0637)

$

$

Not available

$

$

32

Cub Cadet 783-05850

Plate, Seat Frame
(Superseded to 783-05850A-0637)

Variations

Cub Cadet 783-05850-0637

USE 783-05850A-0637 PLATE-FRA - POWDER BLACK (0637)

$

$

Not available

$

$

33

Cub Cadet 710-0726

Screw, Hex Wash. Hd. Tapp, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 725-04375A

Harness, Main Wire
(Superseded to 925-04375A)

Note: not shown

$259.99

$

Usually ships in 3-6 days

0
