i1042 (17AE9BKR056) - Cub Cadet 42" Zero-Turn Mower (2010 & Before) Engine SV540-0219 Oil Pan & Lubrication Parts Diagram

42" Zero-Turn Mower

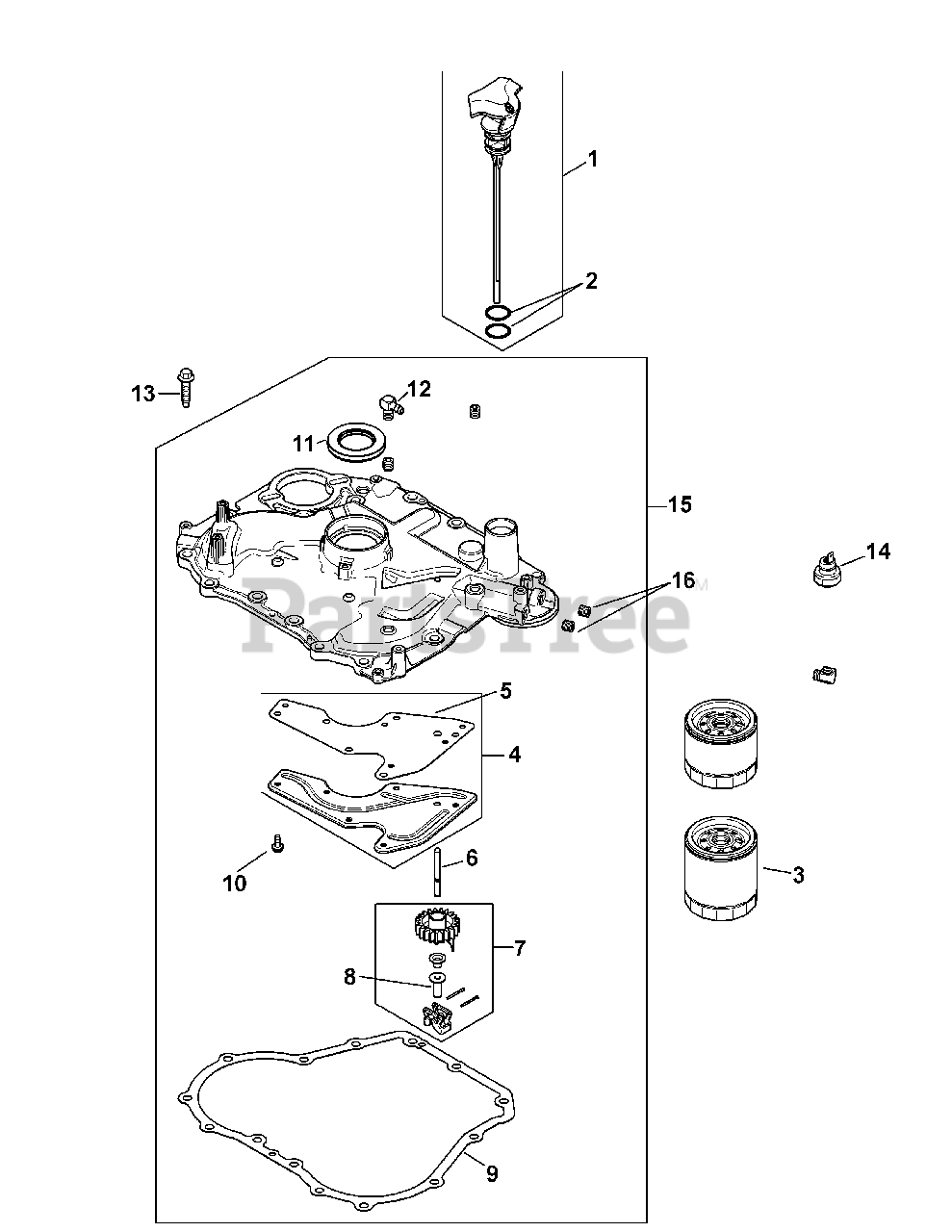

Engine SV540-0219 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-20-040-07-S

Dipstick Assembly (Inc. 2)
(Superseded to KH-20-040-08-S)

$7.99

$

In Stock, Qty 8

0

2

Cub Cadet KH-20-153-01-S

O-Ring
(Superseded to KH-25-153-09-S)

$3.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-25-050-25-S

Oil Filter
(Superseded to KH-52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

4

Cub Cadet KH-20-096-02-S

Oil Passage Cover Kit (Inc. 5)

$

$

Not available

5

Cub Cadet KH-20-041-02-S

Oil Passage Gasket

$3.49

$

In Stock, Qty 5

0

6

Cub Cadet KH-20-144-03-S

Governor Cross Shaft

$2.49

$

In Stock, only 3 left!

0

7

Cub Cadet KH-25-310-07-S

Governor Gear Assembly
(Superseded to KH-25-310-09-S)

Note: (Inc. 8 & KH-62-380-02-S)

$13.99

$

In Stock, only 3 left!

0

8

Cub Cadet KH-12-380-01

Governor Regulating Pin

$

$

Not available

9

Cub Cadet KH-20-041-01-S

Closure Plate Gasket
(Superseded to KH-20-041-21-S)

$

$

Not available

10

Cub Cadet KH-M-545013-S

Flg. Thd. Frm. Screw, M5 x 0.8 x 13

$2.49

$

In Stock, Qty 7

0

11

Cub Cadet KH-20-032-01-S

Oil Seal
(Superseded to KH-20-032-08-S)

$9.49

$

In Stock, Qty 9

0

12

Cub Cadet KH-25-155-02

90° Hose Connector

$

$

Not available

13

Cub Cadet KH-25-086-127-S

Hex Flange Screw, 1/2
(Superseded to KH-25-086-421-S)

$2.49

$

In Stock, only 3 left!

0

14

Cub Cadet KH-25-099-27-S

Oil Pressure Switch

$15.99

$

In Stock, only 4 left!

0

15

Cub Cadet KH-20-009-10-S

Closure Plate Assembly Kit

Note: (Inc.5-12, 16 & KH-20-096-02-S)

$194.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-25-139-60-S

Ctsk. Pipe Plug, 1/8

$3.49

$

In Stock, only 2 left!

0
