i1042 (17AE9BKR056) - Cub Cadet 42" Zero-Turn Mower (2010 & Before) Engine SV540-0219 Fuel System Parts Diagram

42" Zero-Turn Mower

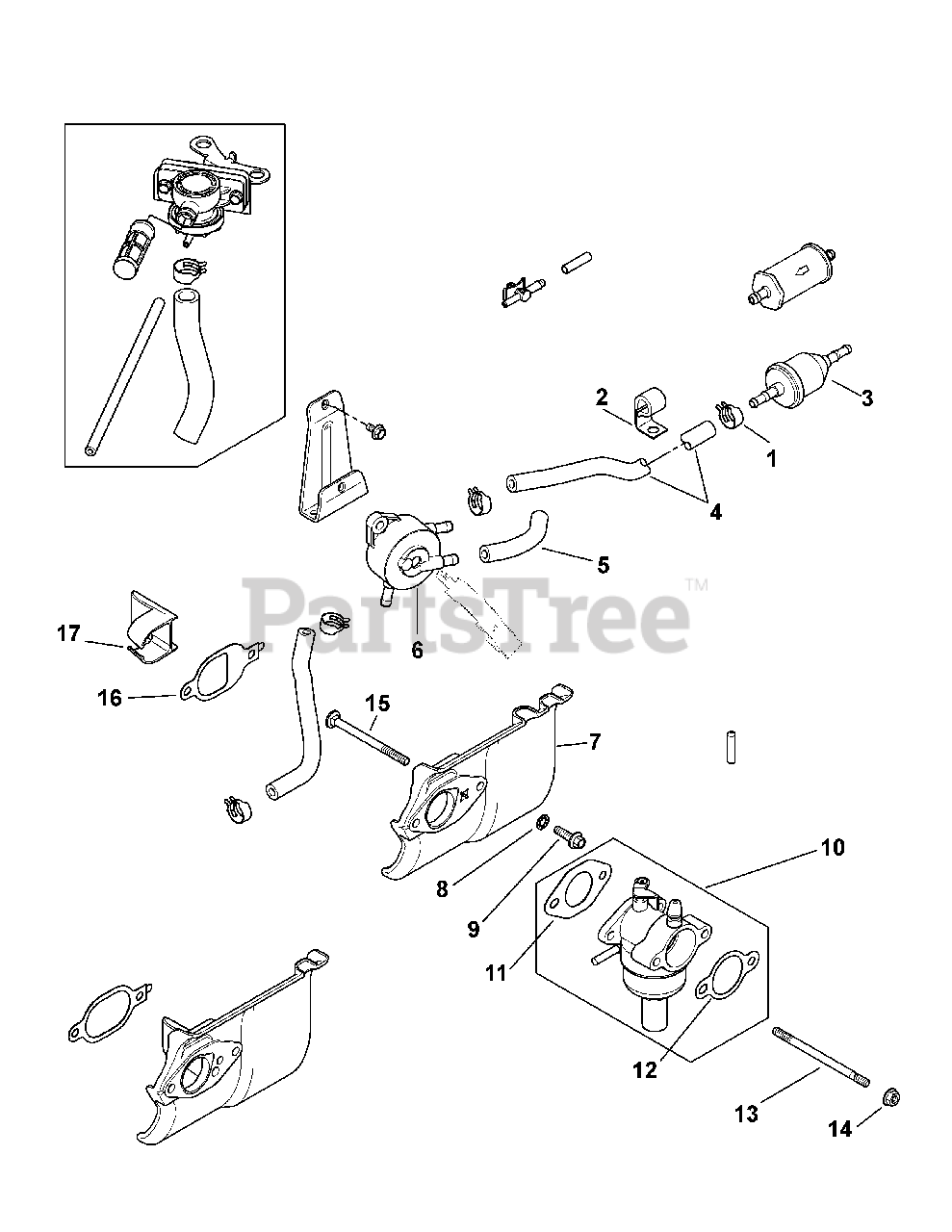

Engine SV540-0219 Fuel System Parts Diagram

  • Title
1

Cub Cadet KH-25-237-14-S

Hose Clamp, 1.2
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

$5.49

$

In Stock, only 4 left!

0

3

Cub Cadet KH-25-050-22-S

Fuel Filter
(Superseded to KH-25-050-22-S1)

$9.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-25-111-34-S

Fuel Line, 24
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, only 4 left!

0

$

$

Not available

$

$

Not available

7

Cub Cadet KH-20-265-09-S

Heat Deflector Kit (Inc. 12, 15-17)

$29.99

$

In Stock, only 2 left!

0

8

Cub Cadet KH-X-22-11

Internal Tooth Lock Washer, 1.4

$

$

Not available

9

Cub Cadet KH-M-651020-S

Flange Screw, M6 x 1.0 x 20

$2.49

$

In Stock, Qty 6

0

10

Cub Cadet KH-20-853-51-S

Carburetor Service Kit (Inc. 11 & 12)
(Superseded to KH-20-853-86-S)

$197.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-12-041-01

Carburetor Gasket

$2.49

$

In Stock, Qty 14

0

12

Cub Cadet KH-12-041-02

Air Cleaner Base Gasket

$2.99

$

In Stock, Qty 5

0

13

Cub Cadet KH-20-072-05-S

Stud, M6 x 1.0 x 100
(Superseded to KH-20-072-10-S)

$4.99

$

In Stock, Qty 9

0

14

Cub Cadet KH-M-641060-S

Flange Nut, M6 x 1.0

$4.49

$

In Stock, Qty 6

0

15

Cub Cadet KH-20-072-07-S

Carburetor Stud
(Superseded to KH-20-072-09-S)

$2.99

$

In Stock, Qty 9

0

16

Cub Cadet KH-20-041-18-S

Heat Deflector Gasket

$6.99

$

In Stock, Qty 13

0

17

Cub Cadet KH-20-332-01-S

Intake Port Insert

$2.99

$

In Stock, Qty 10

0

Cub Cadet KH-25-454-05-S

Tie

Note: (not shown)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-755-110-S

Choke Repair Kit

Note: (not shown)

$14.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-757-02

Float Repair Kit

Note: (not shown)

$

$

Not available

Cub Cadet KH-12-757-03

Carburetor Repair Kit

Note: (not shown)

$35.99

$

In Stock, Qty 7

0

Cub Cadet KH-25-757-25-S

Kit, solenoid repair

Note: (not shown)

$76.99

$

In Stock, only 1 left!

0

Cub Cadet KH-12-757-37-S

Bowl Replacement Repair Kit

Note: (not shown)

$16.99

$

In Stock, only 4 left!

0
