i1042 (17AE9BKR056) - Cub Cadet 42" Zero-Turn Mower (2010 & Before) Engine SV540-0020 Ignition Electrical & Blower Housing Parts Diagram

42" Zero-Turn Mower

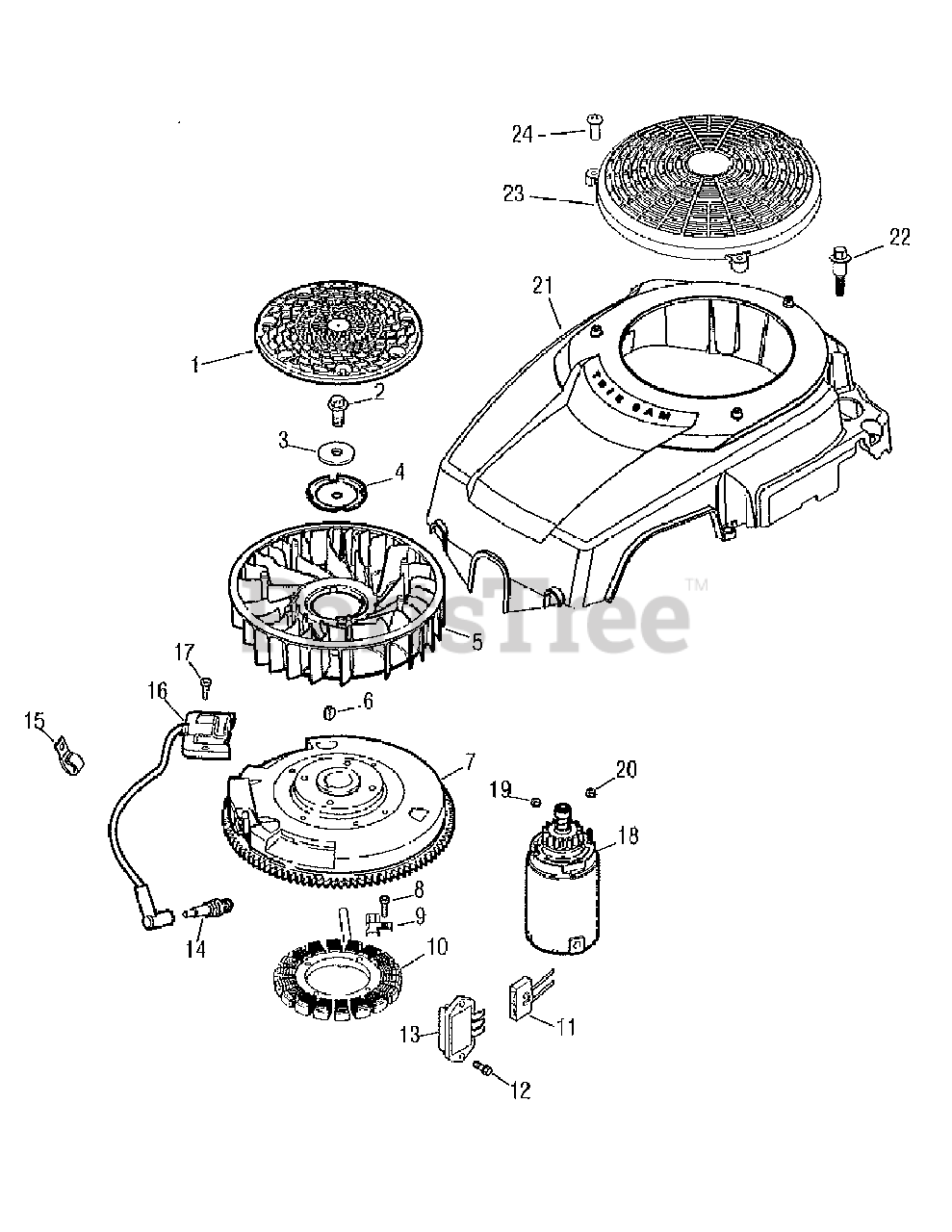

Engine SV540-0020 Ignition Electrical & Blower Housing Parts Diagram

  • Title
1

Cub Cadet KH-20-162-02-S

Screen, Grass

$7.99

$

In Stock, Qty 5

0

2

Cub Cadet KH-12-086-14

Screw, Hex Flange, M10-1.5 x 46
(Superseded to KH-25-086-361-S)

$3.99

$

In Stock, Qty 12

0

3

Cub Cadet KH-12-468-03

Washer, Flat

$

$

Not available

4

Cub Cadet KH-20-146-02-S

Plate, Fan Mounting
(Superseded to KH-20-146-05-S)

$2.99

$

In Stock, Qty 11

0

$24.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-X-42-15

Key, Woodruff

$

$

Not available

7

Cub Cadet KH-20-025-05-S

Flywheel
(Superseded to KH-20-025-44-S)

$251.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-20-086-17-S

Screw, Hex Socket

$

$

Not available

$2.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-237878

Kit, Stator

$149.99

$

In Stock, Qty 8

0

11

Cub Cadet KH-236602-S

Connector, Body (3 Contact)
(Superseded to KH-25-155-41-S)

$24.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-M-545020-S

Screw, Hex Flange
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 20+

0

13

Cub Cadet KH-41-403-09

Rectifi er-Regulator
(Superseded to KH-25-403-37-S)

$

$

Not available

14

Cub Cadet 759-3336

Plug, Spark
(Superseded to RC12YC)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet KH-231285-S

Clip, Cable

$7.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-20-584-01-S

Module,Iignition
(Superseded to KH-20-584-03-S)

$32.99

$

In Stock, only 3 left!

0

17

Cub Cadet KH-M-561025-S

Screw, Hex Socket

$2.49

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-20-098-06-S

Starter Ass’y, Inertia Drive
(Superseded to KH-20-098-11-S)

$110.99

$

In Stock, only 3 left!

0

19

Cub Cadet KH-25-100-31-S

Nut, Hex Serrated Flange
(Superseded to KH-25-100-56-S)

$2.49

$

In Stock, Qty 10

0

20

Cub Cadet KH-12-100-07

Nut, Hex Flange 1/4-20

$

$

Not available

21

Cub Cadet KH-20-755-11-S

Housing, Blower
(Superseded to KH-20-755-40-S)

$45.99

$

In Stock, only 1 left!

0

22

Cub Cadet KH-20-086-06-S

Screw, Shoulder M5-0.8 x 36

$3.99

$

In Stock, Qty 11

0

23

$22.99

$

In Stock, only 1 left!

0

24

Cub Cadet KH-24-086-41

Screw, Tapping

$

$

Not available

Cub Cadet KH-20-237-01-S

Clamp. Wire (clamps harness to blower)

Note: Not Shown

$

$

Not available

Cub Cadet KH-20-176-01-S

Harness, Wiring
(Superseded to KH-20-176-20-S)

Note: Not Shown

$25.99

$

Usually ships in 2-5 days

0
