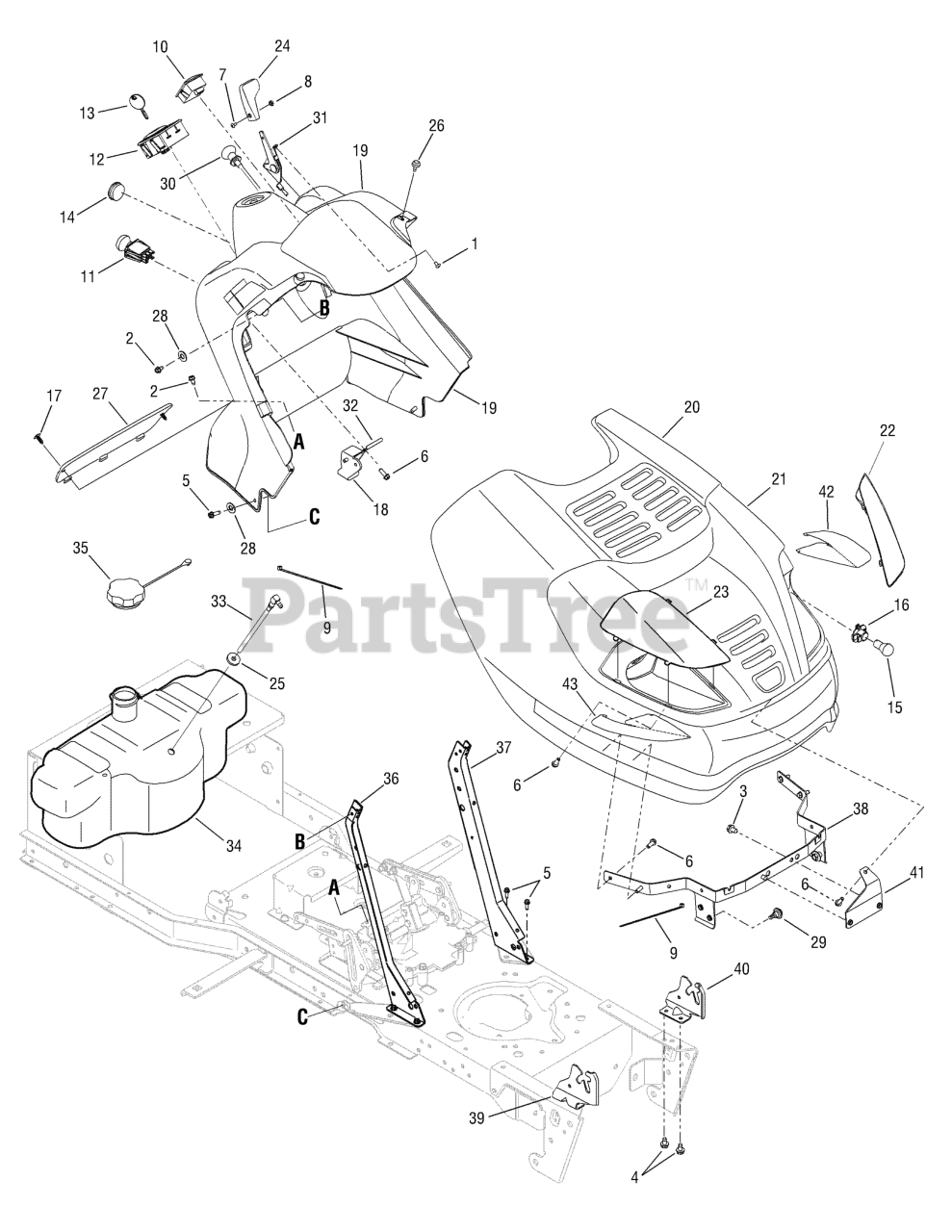

i1042 (17AE9BKR010) - Cub Cadet 42" Zero-Turn Mower (2010 & Before) Hood, Dash Panel & Fuel Tank Parts Diagram

42" Zero-Turn Mower

Hood, Dash Panel & Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 710-0192

Screw, Truss Hd. Mach., 10-24 x .375

$3.99

$

In Stock, Qty 12

0

2

Cub Cadet 710-0599

Screw, Hex Wash Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0604A

Screw, Hex Wash Hd. Tapp, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0607

Screw, Hex Wash Hd. Tapp, 5/16-18 x .5

$6.99

$

In Stock, Qty 9

0

5

Cub Cadet 710-0642

Screw, Hex Wash Hd. Tapp, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0895

Screw, Hex Wash Hd. Tapp, 1/4-15 x .75

$6.49

$

In Stock, Qty 10

0

7

Cub Cadet 710-3217

Screw, Truss Hd. Mach., #8-32 x .375

$6.99

$

In Stock, Qty 7

0

8

Cub Cadet 712-0142

Nut, Hex, 8-32

$4.49

$

In Stock, Qty 10

0

9

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 725-04022B

Meter, Indicator/Service Monitor
(Superseded to 925-04022B)

$146.99

$

In Stock, Qty 5

0

11

Cub Cadet 725-04258

Switch, PTO
(Superseded to 925-04258A)

$56.99

$

In Stock, only 4 left!

0

12

Cub Cadet 725-04227B

Switch, Ingition/Module
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

13

Cub Cadet 725-2054A

Key, Ignition Switch
(Superseded to 925-2054A)

$17.99

$

In Stock, Qty 20+

0

14

Cub Cadet 720-3025

Plug

$

$

Not available

15

Cub Cadet 725-0963

Bulb, 12V Light
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

16

Cub Cadet 725-1649

Receptacle, Light
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

17

Cub Cadet 726-3046

Clip, Ratchet

$3.99

$

In Stock, Qty 15

0

18

Cub Cadet 731-04213

Lever, Dash Brake

$12.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 731-05406

Panel, Dash

$141.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 731-05434

Hood

$240.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 731-05435

Plenum, Hood
(Superseded to 931-05435)

$90.99

$

In Stock, only 1 left!

0

22

Cub Cadet 731-05525

Lense, Head Light LH

$13.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 731-05526

Lense, Head Light RH

$16.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 731-3161A

Knob, Throttle Control
(Superseded to 931-3161A)

$19.99

$

In Stock, only 1 left!

0

25

Cub Cadet 735-0149

Bushing, Fuel Tank
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

26

Cub Cadet 735-0271A

Bumper Cap

$8.99

$

In Stock, only 1 left!

0

27

Cub Cadet 735-04076

Net, Storage

$15.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 736-0463

Washer, Flat, .25 x .63 x .0515

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 738-04091A

Screw, Shoulder, .43 x .29:TT5/16-18

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 746-04120

Cable, Choke Control
(Superseded to 746P04120)

$34.99

$

In Stock, only 3 left!

0

31

Cub Cadet 746-1100

Cable, Throttle Control
(Superseded to 946-1100)

$34.99

$

In Stock, Qty 9

0

32

Cub Cadet 747-1155

Rod, Brake Lock Pivot

$13.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 751-10442

Fitting, Fuel Pick Up

$32.99

$

In Stock, Qty 20+

0

34

Cub Cadet 751-10692

Tank, Fuel
(Superseded to 951-05137A)

$

$

Not available

35

Cub Cadet 751-10703

Cap, Fuel Tank
(Superseded to 951-12428)

$43.99

$

In Stock, Qty 15

0

36

Cub Cadet 783-04285F

Support, Dash, R.H.
(Superseded to 783-04285F-0637)

Variations

Cub Cadet 783-04285F-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 783-04323F

Support, Dash, L.H.
(Superseded to 783-04323F-0637)

Variations

Cub Cadet 783-04323F-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 783-04606B

Bracket, Hood Pivot
(Superseded to 783-04606C)

Variations

Cub Cadet 783-04606B-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

Cub Cadet 783-04606B-0638

USE 783-04606C-0638 BRACKET-P - MTD/TROY-BILT RED (0638)

$39.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04606B-0716

USE 783-04606C-4021 BRACKET-P - CUB YELLOW-99 (0716)

$48.99

$

In Stock, only 1 left!

0

Cub Cadet 783-04606B-4008

USE 783-04606C-4008 BRACKET-P - WINE RED (4008)

$42.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 783-04840

Bracket, Hood Pivot RH

Variations

Cub Cadet 783-04840-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$19.99

$

In Stock, only 2 left!

0

Cub Cadet 783-04840-0716

BRACKET:PIVOT:HOOD - CUB YELLOW-99 (0716)

$18.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04840-4008

BRACKET:PIVOT:HOOD - WINE RED (4008)

$19.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 783-04841

Bracket, Hood Pivot LH

Variations

Cub Cadet 783-04841-0716

BRACKET:PIVOT:HOOD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04841-4008

BRACKET:PIVOT:HOOD - WINE RED (4008)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04841-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

$15.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 783-05162

Bracket, Hood Support
(Superseded to 783-05162-0637)

Variations

Cub Cadet 783-05162-0637

BRACKET-SUPPORT HO - POWDER BLACK (0637)

$

$

Not available

$

$

42

Cub Cadet 777X42426

Label, Reflector

$

$

Not available

43

Cub Cadet 777X42427

Label, Reflector

$

$

Not available
