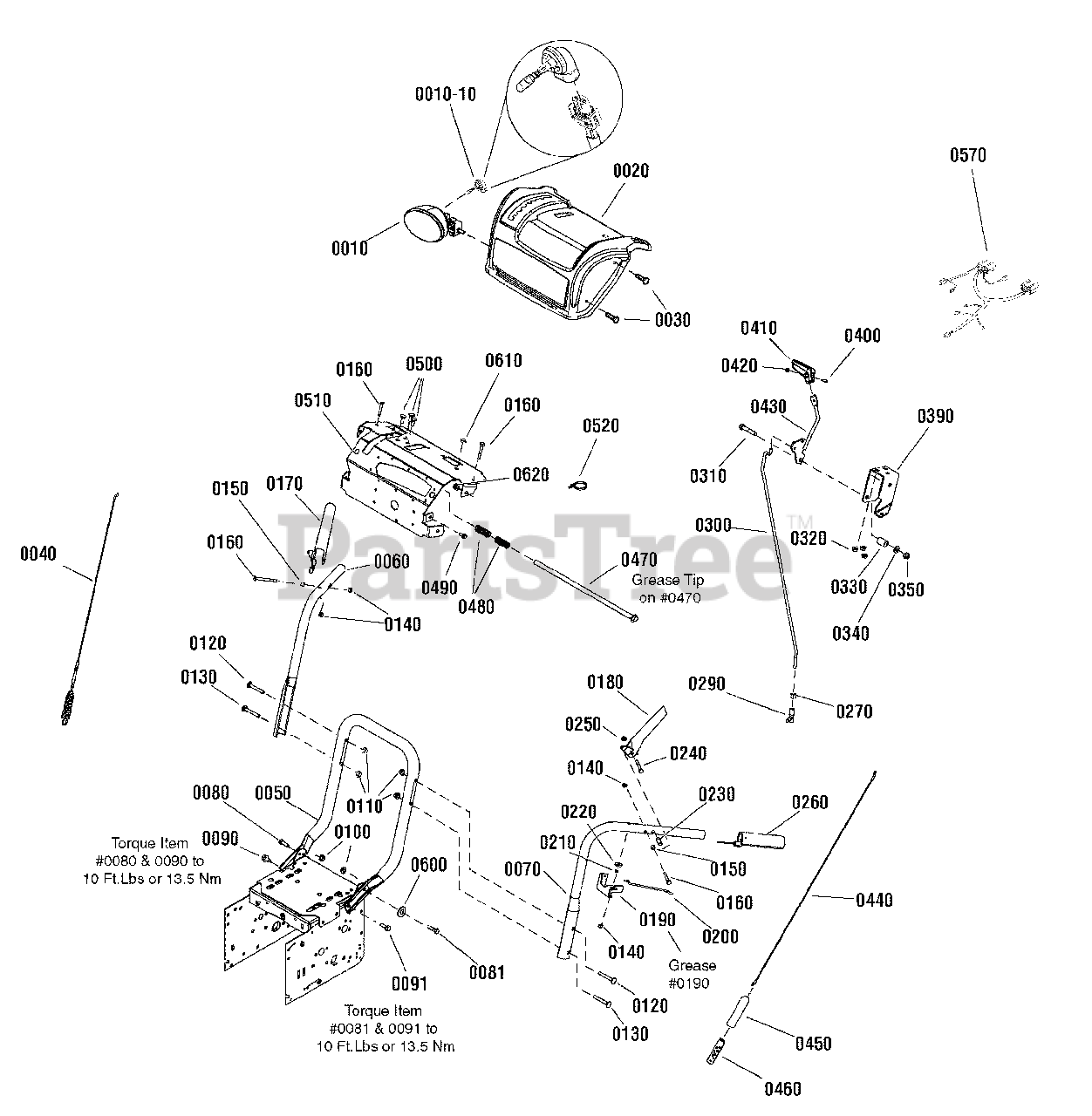

  • Title

0010

Snapper 1737966

HEADLIGHT ASSEMBLY, Oval
(Superseded to 1737966YP)

$97.99

$

Usually ships in 2-12 days

0

0010-10

* BULB, 881-12V 27W Halogen Lamp

Note: (Included with Ref. No. 0010)

$

$

Not available

0020

Snapper 1736536D

DASH ASSEMBLY
(Superseded to 1736536DYP)

$62.99

$

Usually ships in 2-12 days

0

0030

Snapper 1960715

SCREW, Truss Head Torx, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0040

Snapper 1732471

CABLE, Auger Drive
(Superseded to 1732471SM)

$

$

Not available

0050

Snapper 1737759A

HANDLE, Lower
(Superseded to 1737759AYP)

$176.99

$

Usually ships in 2-12 days

0

0060

Snapper 1734587BM

HANDLE, Upper, R.H.
(Superseded to 1734587ASM)

$51.99

$

Usually ships in 2-12 days

0

0070

Snapper 1734586BM

HANDLE, Upper, L.H.
(Superseded to 1734586ASM)

$55.99

$

In Stock, only 1 left!

0

0080

Snapper 1921333

CAPSCREW, Hex Head, 5/16-18 x 1, G5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0081

Snapper 1921977

CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G5
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

0090

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0091

Snapper 1960373

CAPSCREW, Hex Washer Head, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0100

Snapper 1935048

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0110

Snapper 1739305

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0120

Snapper 1960273

BOLT, Carriage, 5/16-18 x 2-1/4, G5
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

0130

Snapper 7091189

BOLT, Carriage, 5/16-18 x 2, G5
(Superseded to 703059)

$4.49

$

In Stock, Qty 12

0

0140

Snapper 1920397

NUT, Hex Lock, 1/4-20, ESNA Light
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 1678392

SPACER, 1/4 ID x 3/8 OD x 5/16
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0160

Snapper 1921962

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0170

Snapper 1739783BM

LEVER, Clutch, R.H.
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

0180

Snapper 1739782BM

LEVER, Clutch, L.H.
(Superseded to 1739782AYP)

$

$

Not available

0190

Snapper 1733505BM

BRACKET, Pivot, Free Hand
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

0200

Snapper 1736360

ROD, 5-5/8
(Superseded to 1736360YP)

$11.99

$

Usually ships in 2-12 days

0

0210

Snapper 1733095

SPACER, 1/4 ID x 3/8 OD x 1/8
(Superseded to 1733095SM)

$4.49

$

Usually ships in 2-12 days

0

0220

Snapper 1960353

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

0230

Snapper 1736542

SPACER, Stepped
(Superseded to 703223)

$4.49

$

Usually ships in 2-12 days

0

0240

Snapper 1750554

SCREW, Hex Washer Head, Shoulder, 10-24
(Superseded to 1750554YP)

$4.99

$

In Stock, only 1 left!

0

0250

Snapper 1933896

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0260

Snapper 1726317

GRIP
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

0270

Snapper 2820263

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0290

Snapper 724360

BALLJOINT
(Superseded to 50782MA)

$21.99

$

In Stock, Qty 6

0

0300

Snapper 1751543

ROD, Speed Control
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

0310

Snapper 1923701

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0320

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Snapper 724361

SPRING
(Superseded to 50786MA)

$5.49

$

Usually ships in 2-12 days

0

0340

Snapper 1918266

WASHER, 3/8
(Superseded to 71072MA)

$4.49

$

In Stock, only 4 left!

0

0350

Snapper 1919439

NUT, Hex Lock, ESNA Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0390

Snapper 1737684

BRACKET, Controls
(Superseded to 1737684YP)

$16.99

$

Usually ships in 2-12 days

0

0400

Snapper 1960589

SCREW, Round Head Phillips, #10-24 x 3/4
(Superseded to 1960589SM)

$3.99

$

Usually ships in 2-12 days

0

0410

Snapper 1733192

KNOB, Slot Speed
(Superseded to 1733192SM)

$8.49

$

Usually ships in 2-12 days

0

0420

Snapper 1933896

NUT, Hex Lock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0430

Snapper 1736836

LEVER, Speed
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0440

Snapper 727331

CABLE, Forward Drive
(Superseded to 1502113MA)

$22.99

$

In Stock, Qty 20+

0

0450

Snapper 723154

BOOT, Spring End Cover
(Superseded to 308146MA)

$6.49

$

Usually ships in 2-12 days

0

0460

Snapper 723259

BRACKET, Cable Adjusting
(Superseded to 313441MA)

$

$

Not available

0470

Snapper 1733509

ROD & SPRING ASSEMBLY
(Superseded to 1733509SM)

$81.99

$

Usually ships in 2-12 days

0

0480

Snapper 2108360

SPRING, Compression, 2-1/4"
(Superseded to 2108360SM)

$5.49

$

In Stock, only 1 left!

0

0490

Snapper 1927429

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0500

Snapper 723873

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

0510

Snapper 1732064BM

SUPPORT, Dash
(Superseded to 1732064BMYP)

$136.99

$

Usually ships in 2-12 days

0

0520

Snapper 7012080

TIE, Cable, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

0570

Snapper 1737446

HARNESS, Wiring
(Superseded to 1737446YP)

$12.99

$

Usually ships in 2-12 days

0

0600

Snapper 725331

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

0610

Snapper 1667588

BUSHING
(Superseded to 1667588SM)

$5.99

$

In Stock, Qty 20+

0

0620

Snapper 5025391

NUT, Hex Flange, Nylock, 1/4-20
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0
