I 924 E (1695839) - Simplicity 24" Snow Thrower, 9hp Wheels & Tires Group - 1 Pin Parts Diagram

24" Snow Thrower, 9hp

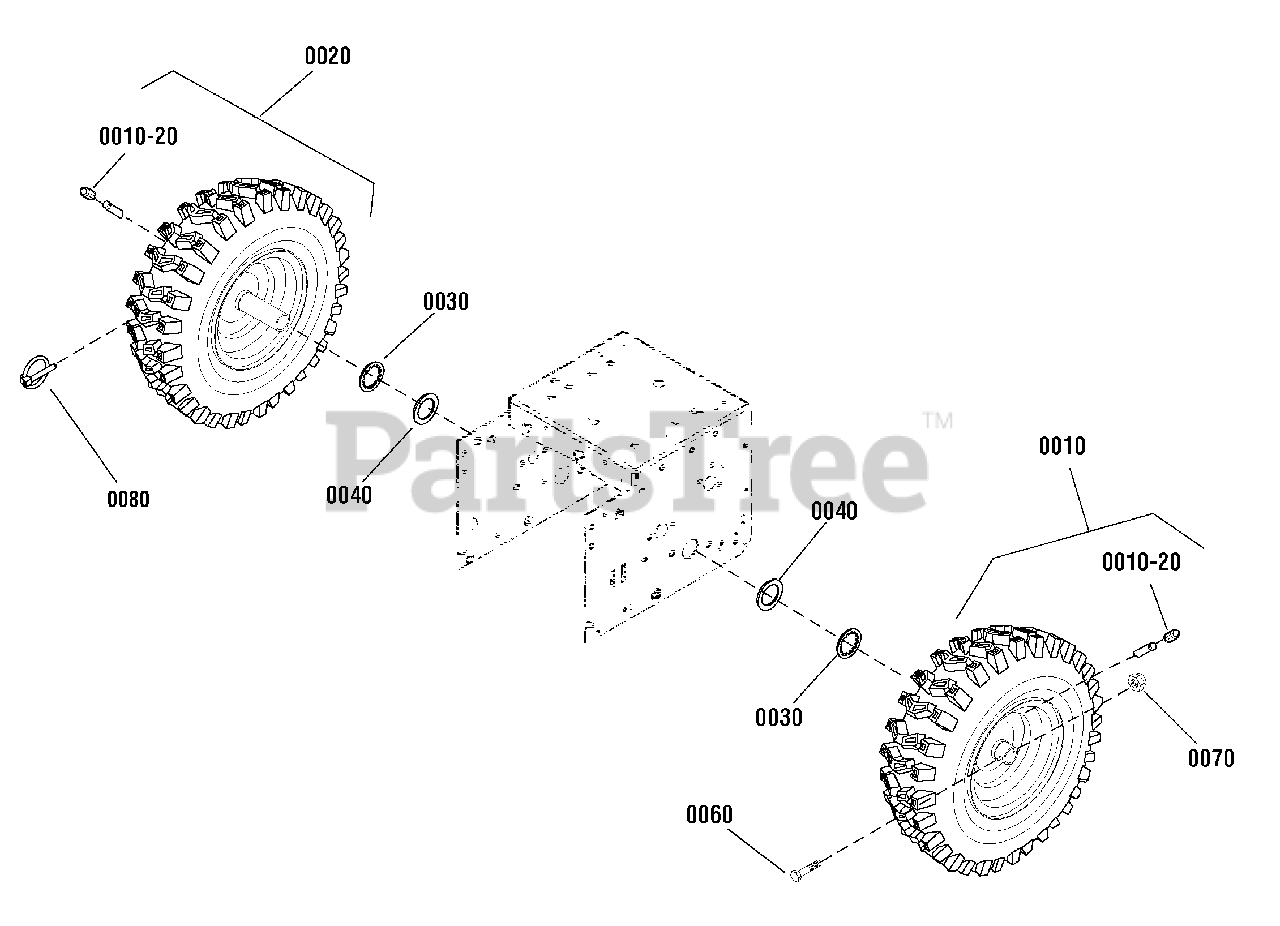

Wheels & Tires Group - 1 Pin Parts Diagram

  • Title
0010

Simplicity 1750333

WHEEL & TIRE ASSEMBLY, 13 X 5, LH
(Superseded to 1750333YP)

Note: (Includes Ref. No. 0010-20)

$121.99

$

Usually ships in 2-12 days

0

0010-20

Simplicity 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

0020

Simplicity 1750332

WHEEL & TIRE ASSEMBLY, 13 X 5, RH
(Superseded to 1750332YP)

Note: (Includes Ref. No. 0010-20)

$122.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1657528

RING, Retaining
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

0040

Simplicity 725394

WASHER, Flat, 3/4
(Superseded to 712120MA)

$4.99

$

In Stock, Qty 20+

0

0060

Simplicity 724545

CAPSCREW, Hex, 1/4-20 x 1-3/4, G5
(Superseded to 577015MA)

$4.99

$

In Stock, Qty 5

0

0070

Simplicity 722400

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0080

Simplicity 725431

PIN, Klik
(Superseded to 500016MA)

$15.99

$

In Stock, only 2 left!

0
