I 924 E (1695839) - Simplicity 24" Snow Thrower, 9hp Discharge Chute Group Parts Diagram

24" Snow Thrower, 9hp

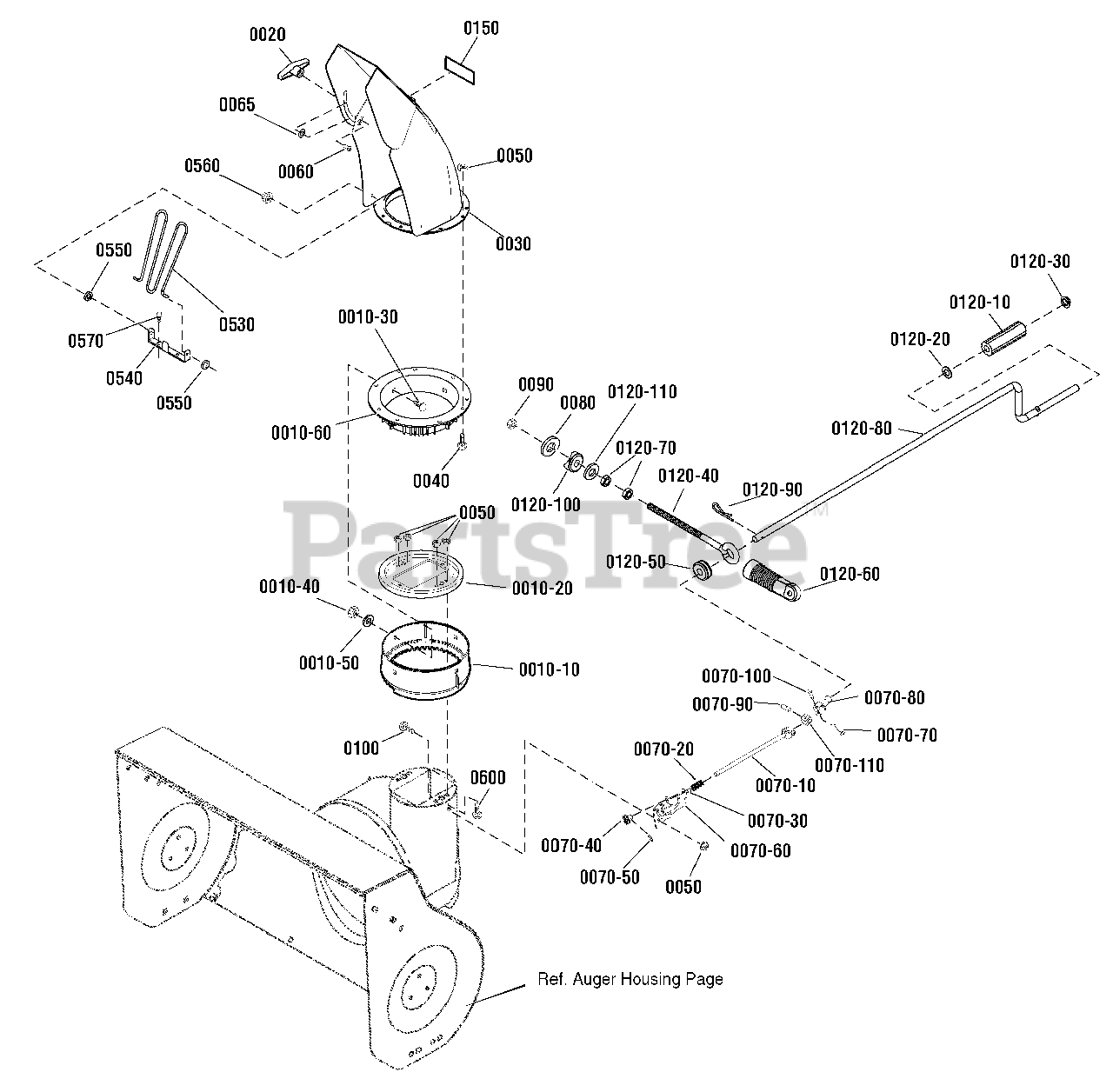

Discharge Chute Group Parts Diagram

  • Title

0010-10

Simplicity 722138

RING, Outer Chute
(Superseded to 1501282MA)

$26.99

$

In Stock, only 2 left!

0

0010-20

Simplicity 722340

COLLAR, Chute Rotate
(Superseded to 1501932YZMA)

$28.99

$

In Stock, only 1 left!

0

0010-30

Simplicity 722899

BOLT, Carriage, 5/16-18 x 1
(Superseded to 704217)

$

$

Not available

0010-40

Simplicity 725321

NUT, Hex Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0010-50

Simplicity 725331

WASHER, Flat, 11/32
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

0010-60

Simplicity 1741917

RING, Inner Chute
(Superseded to 1741917YP)

$22.99

$

Usually ships in 2-12 days

0

0020

Simplicity 722136

KNOB, Wing, 5816-18
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 7

0

0030

Simplicity 1736380C

CHUTE
(Superseded to 1736380CYP)

$139.99

$

Usually ships in 2-12 days

0

0040

Simplicity 7091530

BOLT, Carriage, Short Neck, 1/4-20 x 3/4, G5
(Superseded to 7091530SM)

$3.99

$

In Stock, only 3 left!

0

0050

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

0060

Simplicity 720064

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

0065

Simplicity 2860210

WASHER, Nylon
(Superseded to 2860210SM)

$4.49

$

In Stock, only 3 left!

0

0070-10

Simplicity 722202

ROD, Yoke Crank
(Superseded to 1501533YZMA)

$11.99

$

Usually ships in 2-12 days

0

0070-20

Simplicity 722414

SPRING, Compression
(Superseded to 164X37MA)

$9.49

$

In Stock, only 1 left!

0

0070-30

Simplicity 720164

WASHER, Flat, 3/8
(Superseded to 017X48MA)

$8.49

$

Usually ships in 2-12 days

0

0070-40

Simplicity 722073

GEAR,9 Tooth
(Superseded to 1501067MA)

$17.99

$

In Stock, only 2 left!

0

0070-50

Simplicity 722139

PIN, Hair, Chute Gear
(Superseded to 1501293MA)

$4.99

$

Usually ships in 2-12 days

0

0070-60

Simplicity 1740591A

BRACKET, Chute Gear
(Superseded to 1740591AYP)

$22.99

$

Usually ships in 2-12 days

0

0070-70

Simplicity 724605

PIN, Cotter
(Superseded to 579493MA)

$4.49

$

Usually ships in 2-12 days

0

0070-80

Simplicity 722076

YOKE TUBE ASSEMBLY, Adapter
(Superseded to 1501075YZMA)

$10.99

$

In Stock, only 1 left!

0

0070-90

Simplicity 724564

PIN, Universal Joint
(Superseded to 578060MA)

$7.49

$

Usually ships in 2-12 days

0

0070-100

Simplicity 724579

PIN, Clevis
(Superseded to 578309MA)

$5.49

$

In Stock, Qty 7

0

0070-110

Simplicity 724565

BLOCK, Universal Pivot
(Superseded to 578063MA)

$5.49

$

In Stock, only 3 left!

0

0080

Simplicity 725332

WASHER, Flat, 1/2

$

$

Not available

0090

Simplicity 727481

NUT, Hex Nylock, 3/8-16
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

0100

Simplicity 720386

BOLT, Carriage, 1/4-20 x 3/4

$

$

Not available

0120-10

Simplicity 723140

GRIP, Chute Crank
(Superseded to 307399MA)

$9.99

$

In Stock, only 1 left!

0

0120-20

Simplicity 723184

WASHER, Flat, 1/2
(Superseded to 703326)

$3.99

$

Usually ships in 2-12 days

0

0120-30

Simplicity 725415

NUT, Push, 3/8
(Superseded to 73664MA)

$4.99

$

In Stock, only 3 left!

0

0120-40

Simplicity 722191

EYEBOLT, 3/8-16 x 6-1/2
(Superseded to 1501456MA)

$9.49

$

Usually ships in 2-12 days

0

0120-50

Simplicity 722044

GROMMET, Eyebolt
(Superseded to 148MA)

$

$

Not available

0120-60

Simplicity 722192

BOOT, Eyebolt
(Superseded to 1501457MA)

$8.99

$

Usually ships in 2-12 days

0

0120-70

Simplicity 725323

NUT, Hex Jam, 3/8-16

$

$

Not available

0120-80

Simplicity 722075

CRANK, Chute Turn
(Superseded to 703120)

$29.99

$

In Stock, only 2 left!

0

0120-90

Simplicity 725367

PIN, Hair, 3/8
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0120-100

Simplicity 723186

ADAPTOR, Boot to Handle
(Superseded to 309344MA)

$

$

Not available

0120-110

Simplicity 725332

WASHER, Flat, 1/2

$

$

Not available

0150

Simplicity 1706085

DECAL, Hinge
(Superseded to 1706085SM)

$13.99

$

Usually ships in 2-12 days

0

0530

Simplicity 1733475

GUARD, Chute
(Superseded to 1733475SM)

Note: (CE/Export)

$21.99

$

Usually ships in 2-12 days

0

0540

Simplicity 1737683

BRACKET, Chute Guard
(Superseded to 1737683AYP)

Note: (CE/Export)

$17.99

$

Usually ships in 2-12 days

0

0550

Simplicity 1738174

GROMMET, Chute Guard
(Superseded to 1738174YP)

Note: (CE/Export)

$4.49

$

Usually ships in 2-12 days

0

0560

Simplicity 1960140

NUT, Push, 3/16 Stud
(Superseded to 1960140SM)

Note: (CE/Export)

$3.49

$

Usually ships in 2-12 days

0

0570

Simplicity 1925003

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

Note: (CE/Export)

$3.99

$

In Stock, Qty 7

0

0600

Simplicity 1935450

CAPSCREW, Hex Flange Head, 1/4-20 x 3/4, G5
(Superseded to 1935450SM)

Note: (CE/Export)

$4.49

$

Usually ships in 2-12 days

0
