I 924 E (1695839) - Simplicity 24" Snow Thrower, 9hp Auger Housing Group Parts Diagram

24" Snow Thrower, 9hp

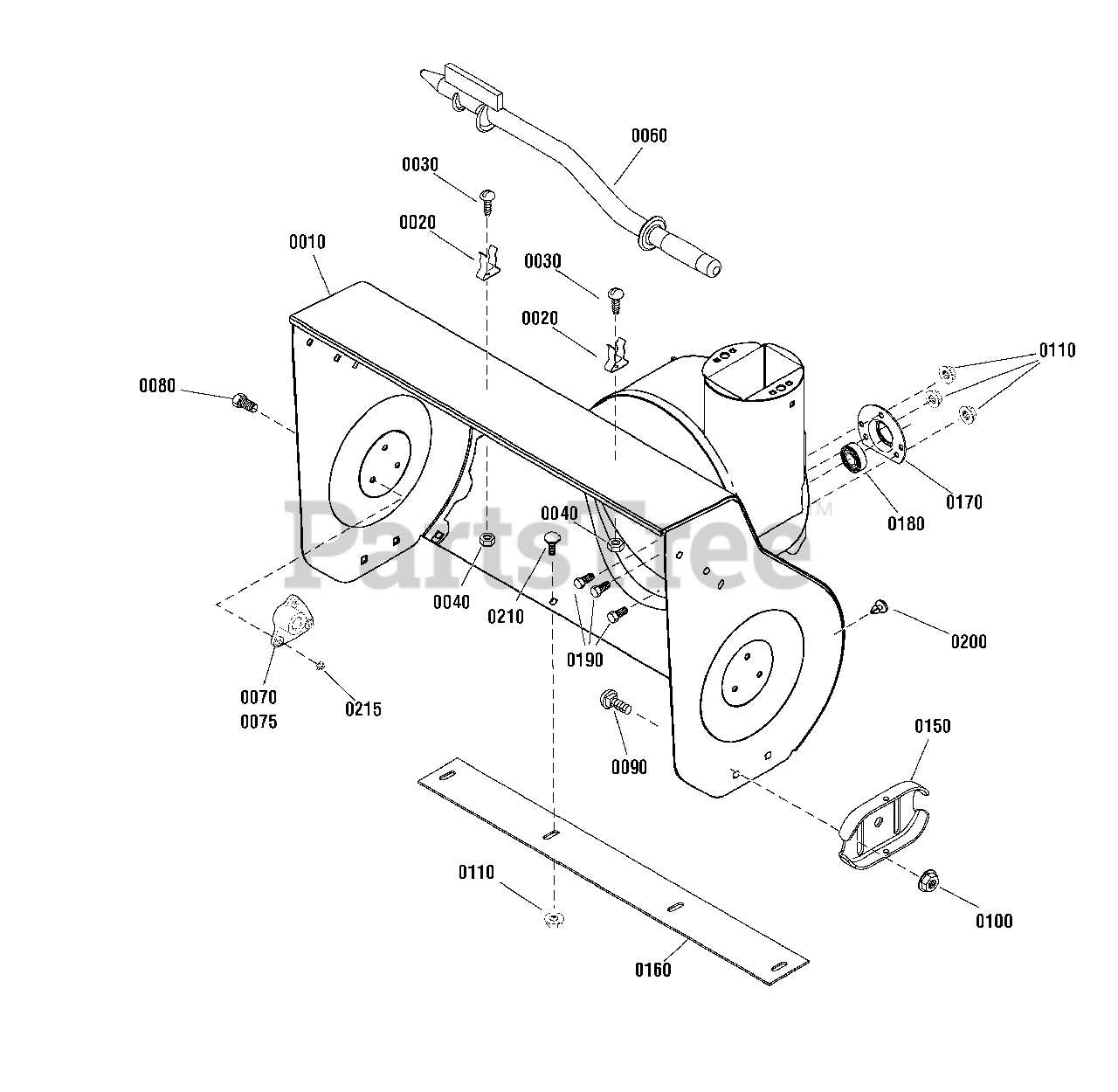

Auger Housing Group Parts Diagram

  • Title
0010

Simplicity 1750664C

AUGER HOUSING
(Superseded to 1687515YP)

$628.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1736620

CLAMP, Spring
(Superseded to 1736620YP)

$6.49

$

In Stock, only 2 left!

0

0030

Simplicity 1960569

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 1960569SM)

$4.49

$

Usually ships in 2-12 days

0

0040

Simplicity 7091290

NUT, Hex Lock, Nylon\, #10C
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0060

Simplicity 1736094

BRUSH, Cleanout
(Superseded to 1736094YP)

$34.99

$

In Stock, only 4 left!

0

0070

Simplicity 1739732

BEARING, Auger, RH
(Superseded to 1739732YP)

$5.49

$

Usually ships in 2-12 days

0

0075

Simplicity 1739761

BEARING, Auger, LH
(Superseded to 1739761YP)

$5.49

$

Usually ships in 2-12 days

0

0080

Simplicity 1935450

CAPSCREW, Hex Flange, 1/4-20 x 3/4
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

0090

Simplicity 7091547

BOLT, Carriage, Short Neck, 3/8C x 3/4, GR5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 7091619

NUT, Hex Flange Lock, 3/8C
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0110

Simplicity 725273

NUT, Hex Flange Serrated Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Simplicity 1727854A

SKID SHOE
(Superseded to 1727854BMYP)

$16.99

$

In Stock, Qty 20+

0

0160

Simplicity 1738301A

BLADE, Scraper, 24
(Superseded to 1738301AYP)

$

$

Not available

0170

Simplicity 724712

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

0180

Simplicity 1705897

BEARING, Ball, 11/16 x 1-9/16 x 15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

0190

Simplicity 7090001

BOLT, Carriage, Short Neck, 5/16C x 3/4, GR5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0200

Simplicity 725521

PLUG, Panel
(Superseded to 760040MA)

$4.49

$

Usually ships in 2-12 days

0

0210

Simplicity 7090799

BOLT, Carriage, Short Neck, 5/16C x 5/8, GR5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0215

Simplicity 722398

NUT, Flange Lock, 1/4-20
(Superseded to 7001278MA)

$

$

Not available
