I 85245E (7800017) - Snapper 24" Snow Thrower, 8.5hp Collector Housing (3 Piece Bolted) Parts Diagram

24" Snow Thrower, 8.5hp

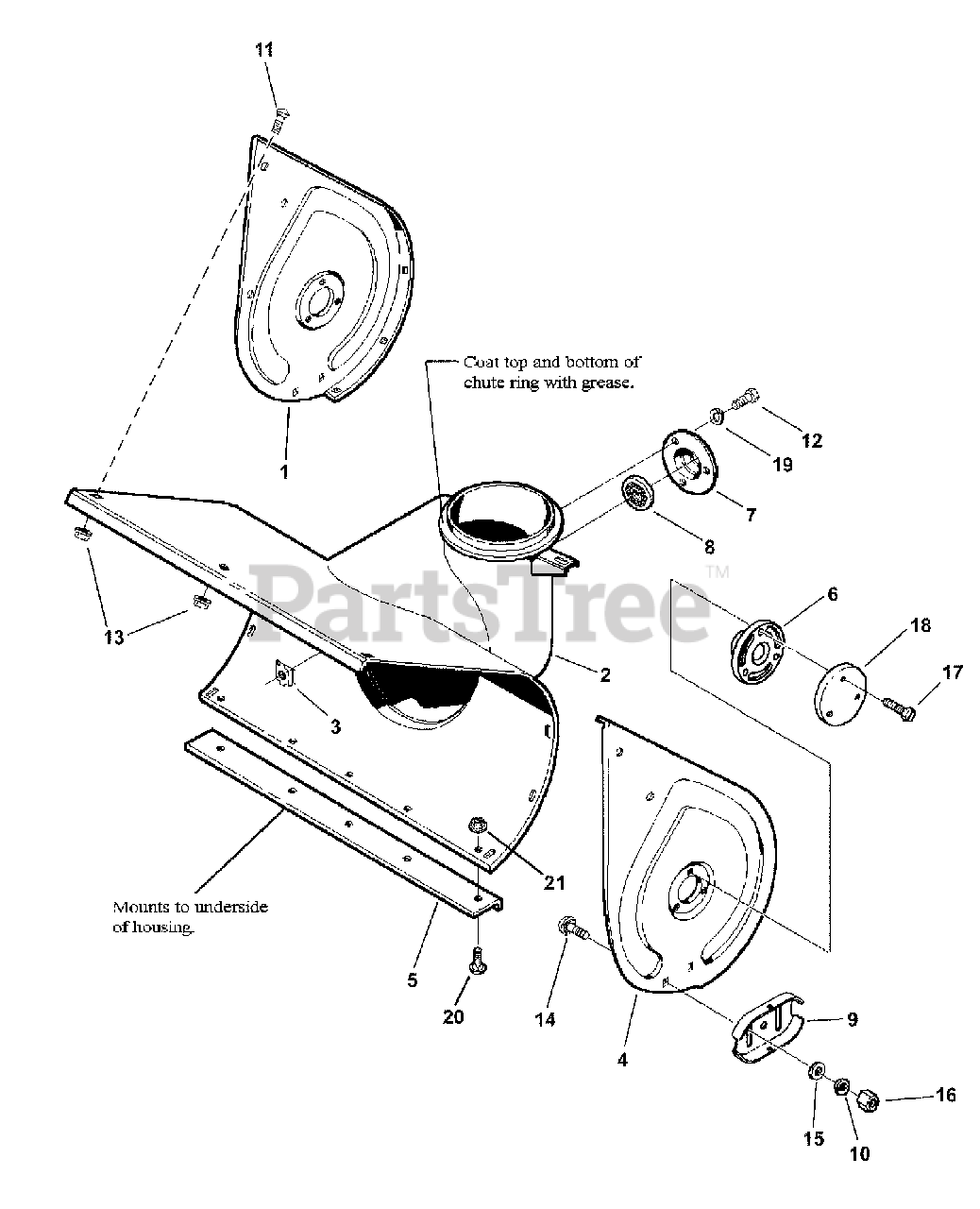

Collector Housing (3 Piece Bolted) Parts Diagram

  • Title

1

Snapper 7072542

END PLATE, RH- Auger Housing- Red
(Superseded to 7072542YP)

$125.99

$

Usually ships in 2-12 days

0

2

Snapper 7072547

WELDMENT, Auger Housing - 22" - Red
(Superseded to 7072547YP)

$490.99

$

Usually ships in 2-12 days

0

2

Snapper 7072567

WELDMENT, Auger Housing - 24" - Red
(Superseded to 7072567YP)

$598.99

$

Usually ships in 2-12 days

0

3

Snapper 1930659

RETAINER NUT, 5/16-18
(Superseded to 1930659SM)

$5.99

$

Usually ships in 2-12 days

0

4

Snapper 7072544

END PLATE, LH- Auger Housing- Red
(Superseded to 7072544YP)

$125.99

$

Usually ships in 2-12 days

0

5

Snapper 7300099

BLADE, Scraper- 22"
(Superseded to 7300099YP)

Note: (replaces 1675080)

$51.99

$

Usually ships in 2-12 days

0

5

Snapper 7600018

BLADE, Scraper- 24"
(Superseded to 7600018SM)

Note: (replaces 1725352)

$66.99

$

In Stock, only 3 left!

0

6

Snapper 1726457

BEARING, Auger
(Superseded to 1726457SM)

$

$

Not available

7

Snapper 1665982A

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 20+

0

8

Snapper 108202

BALL BEARING
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

9

Snapper 7072552

SKID SHOE, Reversible- Red
(Superseded to 1727854BMYP)

Note: (or 1727854)

$16.99

$

In Stock, Qty 20+

0

10

Snapper 1916965

WASHER, 3/8" Split Lock
(Superseded to 703454)

Note: (or 7091320)

$3.49

$

In Stock, Qty 17

0

11

Snapper 1931315

BOLT, 1/4-20 x 1/2" Short Square Neck Carriage, GR 5
(Superseded to 703978)

Note: (or 7091604)

$3.99

$

In Stock, Qty 20+

0

12

Snapper 7090204

SCREW, 5/16-18 x 5/8 Hex Head Cap, GR 5
(Superseded to 703822)

Note: (or 1925205)

$4.49

$

In Stock, only 1 left!

0

13

Snapper 1930641

NUT, 1/4-20 Hex Flange Lock Large
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 1960711

BOLT, 3/8-16 x 3/4" Square Neck Carriage
(Superseded to 703448)

Note: (or 7091923)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 1924940

WASHER, 3/8" Flat
(Superseded to 703878)

Note: (or 7090122)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 1960687

NUT, 3/8-16 Hex Nyloc
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7091742

SCREW, 5/16-18 x 1" Hex Washer Self-Tap
(Superseded to 7091841SM)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7072549

CAP, Bearing, Red
(Superseded to 1668639BMYP)

$51.99

$

Usually ships in 2-12 days

0

19

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

Note: (or 1917356)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7091208

BOLT, 1/4-20 x 7/16" Short Square Neck Carriage, GR 5
(Superseded to 7091208SM)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 7091065

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0
