I 85245E (7800017) - Snapper 24" Snow Thrower, 8.5hp CHUTE CRANK CONTROL Parts Diagram

24" Snow Thrower, 8.5hp

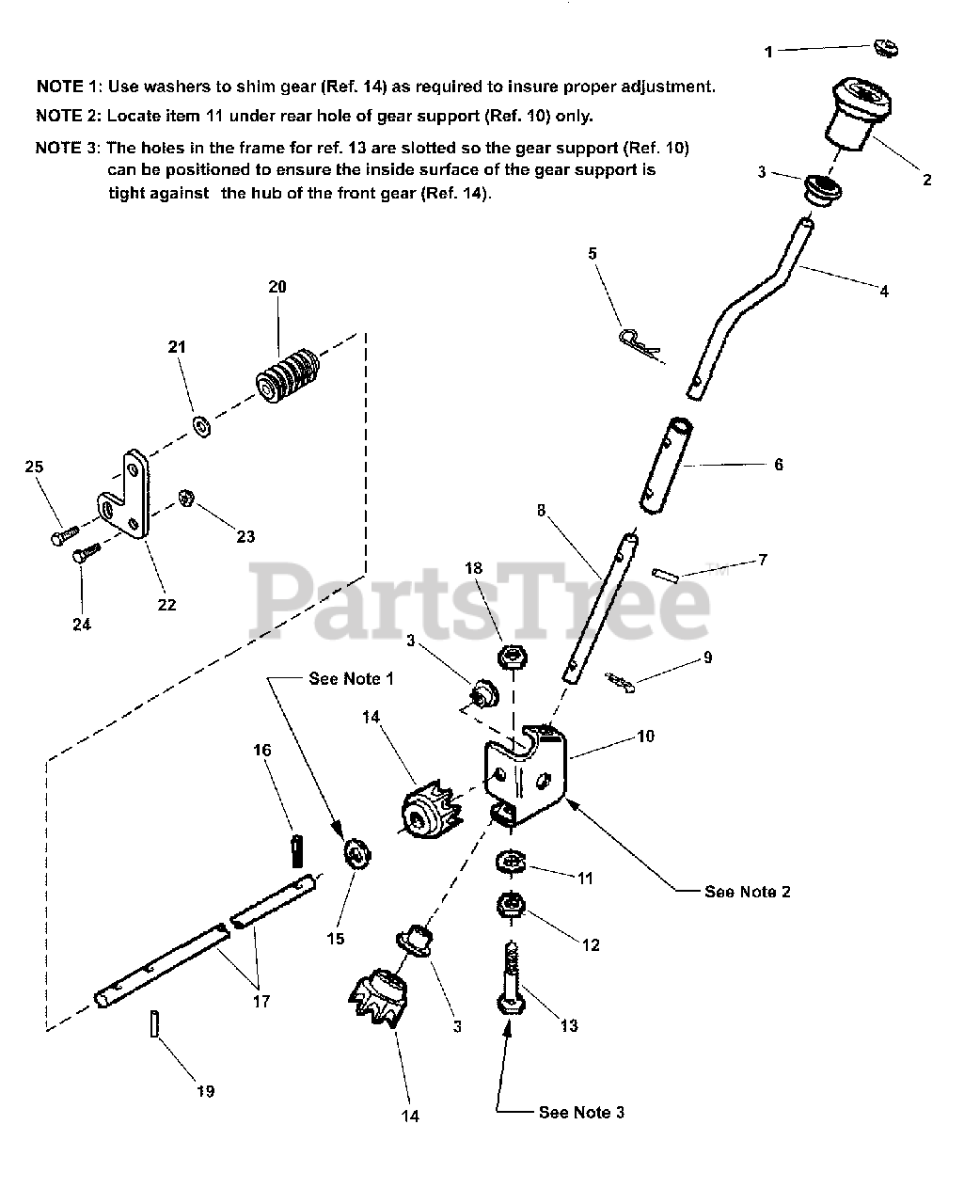

CHUTE CRANK CONTROL Parts Diagram

  • Title

1

Snapper 1960093

PUSH NUT, Pal. .375 Dia. Stud Cap
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

2

Snapper 1714084

KNOB, Spinner
(Superseded to 1714084SM)

$12.99

$

Usually ships in 2-12 days

0

3

Snapper 1667588

BUSHING, .376 x .437 x .20
(Superseded to 1667588SM)

$5.99

$

In Stock, Qty 20+

0

4

Snapper 7028152

ROD, Chute, Upper
(Superseded to 7028152SM)

$13.99

$

Usually ships in 2-12 days

0

5

Snapper 1960074

CLIP, .093 Dia. Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 1720577

SPLICE, Chute Handle
(Superseded to 1720577SM)

$17.99

$

Usually ships in 2-12 days

0

7

Snapper 1926228

SPRING PIN, .156 x 1.000
(Superseded to 1926228SM)

$11.99

$

Usually ships in 2-12 days

0

8

Snapper 1726939

ROD, Chute Lower
(Superseded to 1726939SM)

$28.99

$

Usually ships in 2-12 days

0

9

Snapper 1918452

COTTER PIN, .125 x 1.00
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

10

Snapper 1718793

BRACKET, Universal Gear
(Superseded to 1718793SM)

$19.99

$

Usually ships in 2-12 days

0

11

Snapper 1921319

WASHER, .250 (.27 ID x .62 OD)
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 1960518

RETAINER, 1/4" Bolt
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 1960252

BOLT, 1/4-20 x 5/8" Short Square Neck Carriage
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

14

Snapper 1718593

GEAR, Universal
(Superseded to 1718593SM)

$14.99

$

In Stock, Qty 20+

0

15

Snapper 1960103

WASHER, 3/8" Flat- Black
(Superseded to 1960103SM)

$4.49

$

In Stock, Qty 7

0

16

Snapper 1916168

SPRING PIN, .125 x .750
(Superseded to 2816168SM)

$4.49

$

In Stock, Qty 15

0

17

Snapper 7028159

WORM SHAFT
(Superseded to 7028159SM)

$9.49

$

Usually ships in 2-12 days

0

18

Snapper 1960294

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

19

Snapper 7014001

ROLL PIN, 1/8 x 3/4"
(Superseded to 7014001SM)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7021828

WORM
(Superseded to 7028348SM)

$22.99

$

Usually ships in 2-12 days

0

21

Snapper 7011724

WASHER, .44 x .78 x .025 Curved
(Superseded to 703940)

$4.49

$

In Stock, Qty 6

0

22

Snapper 7028162

BRACKET, Worm
(Superseded to 7028162SM)

$

$

Not available

23

Snapper 7091070

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

24

Snapper 7091138

SCREW, 5/16-18 x 5/8" Hex Head Cap, GR 5
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

25

Snapper 7090539

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0
