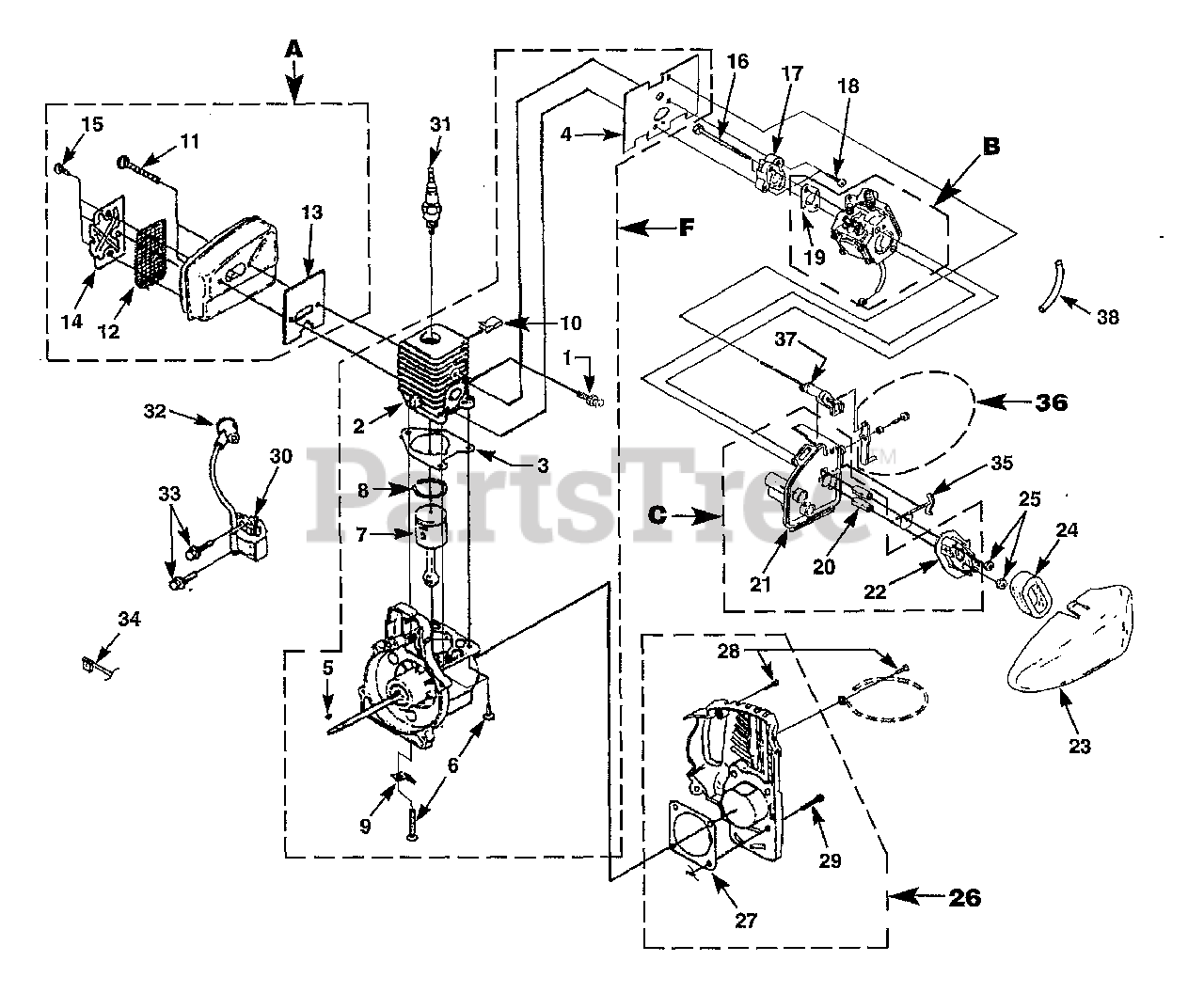

I 725 CEA (UT-20651) - Homelite String Trimmer Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

F

Homelite A07166

SHORT BLOCK (25CC)
(Superseded to UP00767)

$184.99

$

Usually ships in 3-7 days

0

1

Homelite 06488

COMPRESSION RELEASE VALVE

$

$

Not available

2

Homelite A07167

25CC CYLINDER KIT
(Superseded to A07167A)

$82.99

$

Usually ships in 3-7 days

0

3

Homelite 04388B

GASKET-Cylinder
(Superseded to 985259001)

$

$

Not available

4

Homelite 07615

GASKET-Heat Dam
(Superseded to 06900A)

$

$

Not available

13

Homelite 98786C

GASKET-Muffler

$

$

Not available

27

Homelite 06443A

GASKET-Crankcase Cover
(Superseded to 900954001)

$

$

Not available

5

Homelite 69250

KEY-Woodruff

$

$

Not available

6

Homelite 82609

SCREW-Thread Form. (10-24 X 7/8")

$

$

Not available

7

Homelite A07314

25CC PISTON & ROD
(Superseded to UP00768A)

$

$

Not available

8

Homelite 96935

RING-Piston
(Superseded to UP03838)

$

$

Not available

9

Homelite 07193

TERMINAL

$7.49

$

Usually ships in 3-7 days

0

10

Homelite 06469

CLIP

$

$

Not available

A

Homelite A07142

MUFFLER KIT
(Superseded to UP04634)

$35.99

$

Usually ships in 3-7 days

0

11

Homelite 82613

SCREW-Machine (#10-24 X 2")

$4.99

$

Usually ships in 3-7 days

0

12

Homelite 06502

SCREEN-Spark

$

$

Not available

13

Homelite 98786C

GASKET-Muffler

$

$

Not available

14

Homelite 065011

COVER

$

$

Currently unavailable

15

Homelite 82600

SCREW

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 06881

SCREW-Shoulder
(Superseded to PS06881)

$4.99

$

Usually ships in 3-7 days

0

17

Homelite 06445

HEAT DAM
(Superseded to PS04357)

$

$

Not available

18

Homelite 825491

SCREW-Taptite (10-24 X 1")
(Superseded to UP05542)

$

$

Not available

B

Homelite A07169

CARBURETOR KIT

$

$

Currently unavailable

19

Homelite 1987661

GASKET-Carburetor

$

$

Currently unavailable

C

Homelite A07171

AIR FILTER BODY
(Superseded to A07171A)

$

$

Currently unavailable

20

Homelite 06720

SPACER

$

$

Not available

21

Homelite 06484A

BODY

$

$

Currently unavailable

22

Homelite A06480

BLADE RET. MAGNET

$

$

Currently unavailable

23

Homelite 06483A

COVER-Air Filter
(Superseded to 06483)

$8.99

$

Usually ships in 3-7 days

0

24

Homelite D06485

FILTER-Air
(Superseded to 06485)

$9.49

$

Usually ships in 3-7 days

0

25

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

26

Homelite A07138

CRANKCASE COVER

$

$

Not available

27

Homelite 06443A

GASKET-Crankcase Cover
(Superseded to 900954001)

$

$

Not available

28

Homelite 82563

SCREW-Plastite (#10 X 3/4")

$1.99

$

In Stock, Qty 6

0

29

Homelite 825491

SCREW-Taptite (10-24 X 1")
(Superseded to UP05542)

$

$

Not available

30

Homelite 06504A

MODULE-Ignition
(Superseded to UP05516)

$

$

Not available

31

Homelite 79252

SPARK PLUG
(Superseded to UP03883)

$5.49

$

In Stock, only 3 left!

0

32

Homelite A33055

TERMINAL & COVER

$

$

Not available

33

Homelite 82540

SCREW-Taptite (8-32 X 1")

$2.49

$

Usually ships in 3-7 days

0

34

Homelite A07186

LEAD- Electrical

$

$

Currently unavailable

35

Homelite A06477

BLADE & SHAFT ASSEMBLY

$

$

Currently unavailable

36

Homelite A07172

BELLCRANK

$

$

Currently unavailable

37

Homelite A07173

CHOKE ACTUATOR

$

$

Currently unavailable

38

Homelite 9477212

TUBING-Rubber (3")

$6.49

$

Usually ships in 3-7 days

0
