I 7244 (84909) - Snapper 24" Snow Thrower, 7hp Wheels Parts Diagram

24" Snow Thrower, 7hp

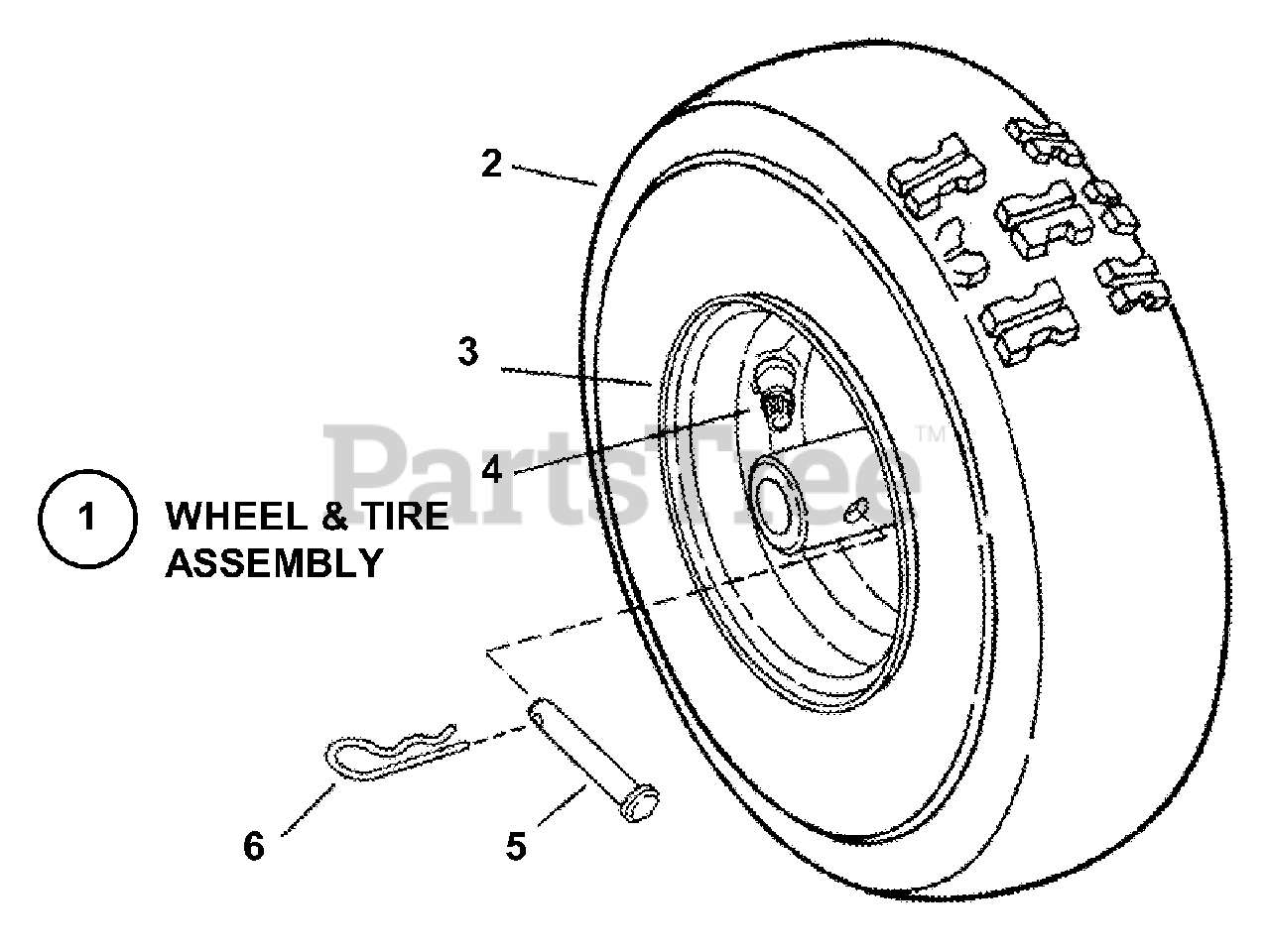

Wheels Parts Diagram

  • Title

1

Snapper 7053415

TIRE & RIM ASSY, 13x4.10/3.50-6 (Snow Hog)

Note: (Includes Items 2, 3 & 4); (for I55224 & EI55224 Models)

$

$

Not available

1

Snapper 7053448

TIRE & RIM ASSY, 13x4.50/5.00-6 (Snow Hog)

Note: (Includes Items 2, 3 & 4; (for I7244 & EI7244 Models)

$

$

Not available

2

Snapper 7023646

TIRE, 13x4.10/3.50-6
(Superseded to 7023646YP)

$76.99

$

Usually ships in 2-12 days

0

2

Snapper 7028270

TIRE, 13x4.50/5.00-6

$

$

Not available

3

Snapper 7028271

RIM, 6 x 3.25

$

$

Not available

4

Snapper 7012234

VALVE, Snap-In
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7029841

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

Note: Was 12407

$4.49

$

In Stock, only 3 left!

0

6

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0
