I 7244 (84909) - Snapper 24" Snow Thrower, 7hp Discharge Chute Parts Diagram

24" Snow Thrower, 7hp

Discharge Chute Parts Diagram

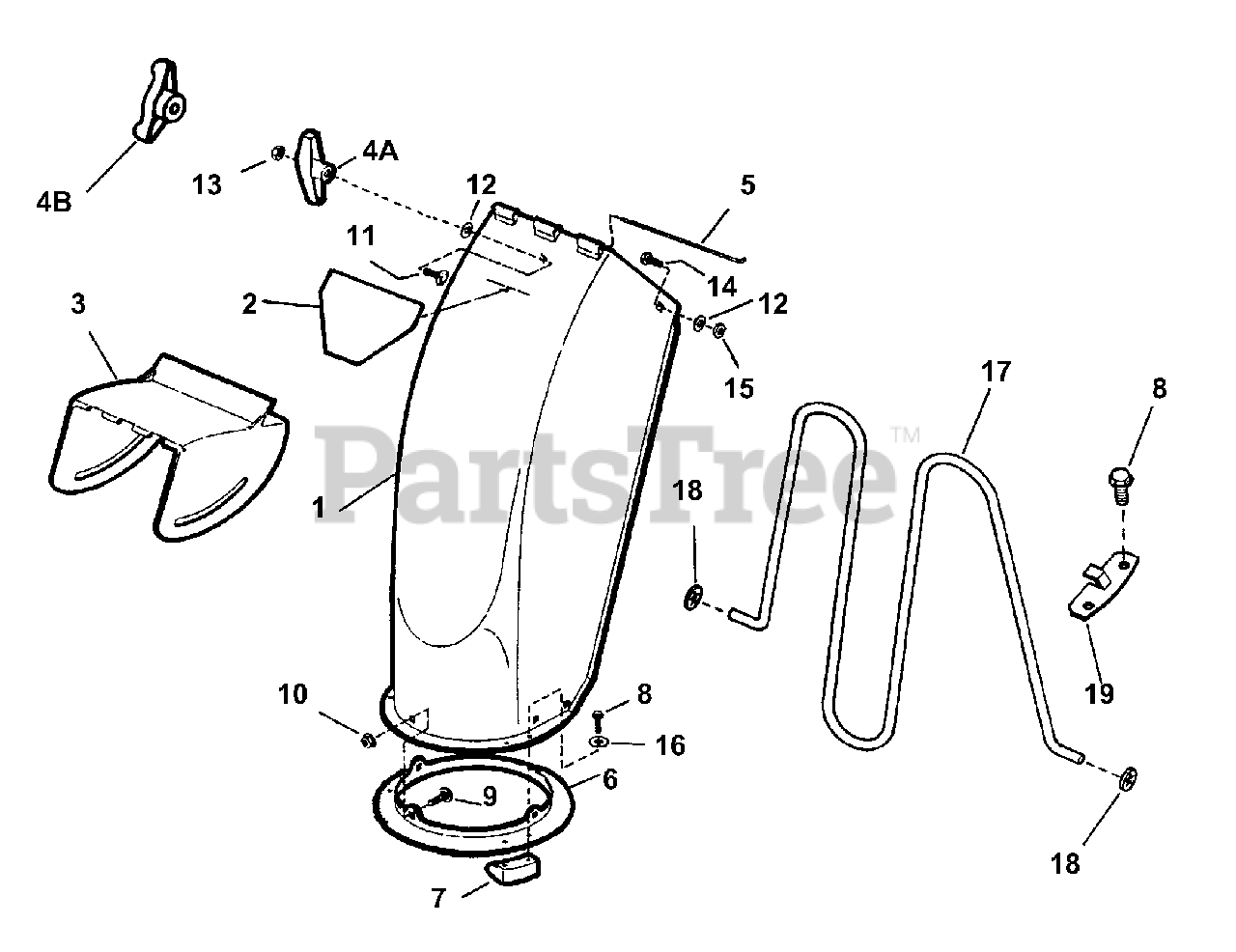

  • Title

1

Snapper 7053411

ASSEMBLY, Discharge Chute
(Superseded to 7053411YP)

Note: (Includes Item 2)

$

$

Not available

2

Snapper 7024773

DECAL, Danger
(Superseded to 7024773YP)

$13.99

$

Usually ships in 2-12 days

0

?2A

Snapper 7028700

DECAL, Read Manual (Euro)
(Superseded to 7028700SM)

$20.99

$

Usually ships in 2-12 days

0

3

Snapper 7028184

DEFLECTOR, Discharge Chute
(Superseded to 7029847YP)

$73.99

$

Usually ships in 2-12 days

0

4A

Snapper 7035744

T-KNOB (Plastic)
(Superseded to 7105085YP)

Note: Was 16324

$3.99

$

In Stock, Qty 20+

0

4B

Snapper 7035744

T-KNOB (w/5/16-18 insert)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 7028253

PIN, Hinge
(Superseded to 7028253YP)

$11.99

$

Usually ships in 2-12 days

0

6

Snapper 7038205

RING, Chute

$

$

Not available

7

Snapper 7011938

RETAINER (Chute Ring to Housing)
(Superseded to 7011938SM)

$

$

Not available

8

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Self-Tapping
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

9

Snapper 7091077

BOLT, 5/16-18 x 5/8" Square Neck Carriage, Grade 5
(Superseded to 7091077YP)

$

$

Not available

10

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

11

Snapper 7090316

BOLT, 5/16-18 x 3/4" Square Neck Carriage, Grade 5
(Superseded to 703225)

Note: Was 91097

$3.99

$

In Stock, Qty 18

0

12

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

13

Snapper 7091511

NUT, 5/16-18 Hex, Grade B or 5
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7091021

SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

15

Snapper 7091606

NUT, 5/16-24 Hex Center Lock, Grade B
(Superseded to 703896)

Note: Was 91074

$3.49

$

In Stock, Qty 20+

0

16

Snapper 7091552

WASHER, 7/32 Flat
(Superseded to 7091552SM)

$3.99

$

In Stock, Qty 14

0

17

Snapper 7019692

WIRE, Safety (Euro)
(Superseded to 7019692SM)

$31.99

$

Usually ships in 2-12 days

0

18

Snapper 7023673

PUSH-ON Fastener, .5/32" Dia. (Euro)
(Superseded to 7023673YP)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7032559

RETAINER, Safety Wire (Euro)
(Superseded to 7032559YP)

$14.99

$

Usually ships in 2-12 days

0
